2003 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Final Drive: Disassembly

  1. Remove the No. 16 final drive gear front thrust bearing.

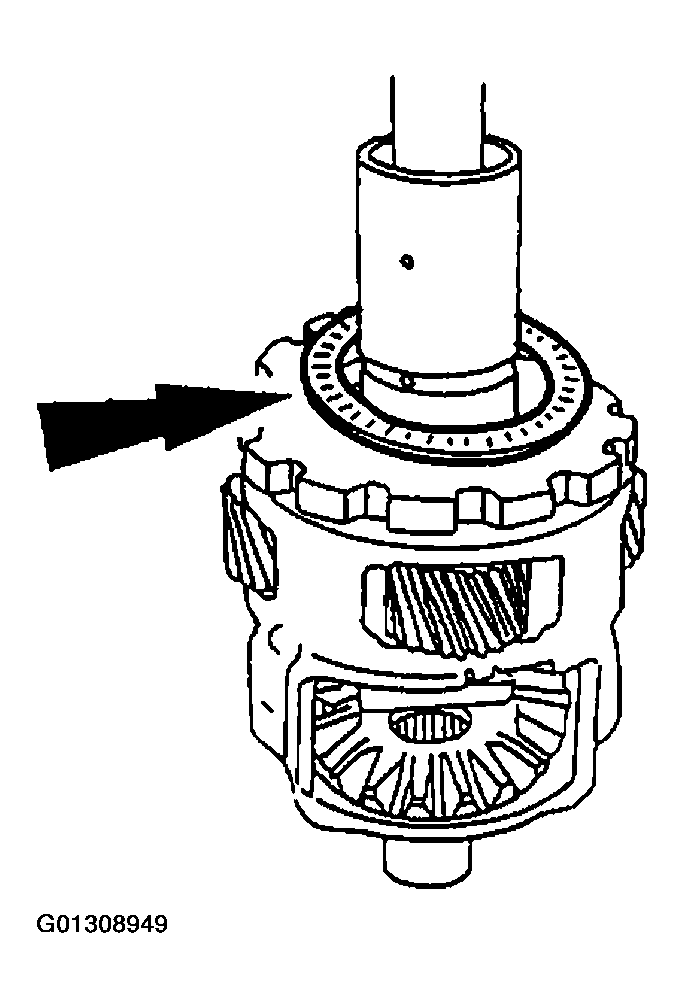

    Fig 1: Removing Final Drive Gear Front Thrust Bearing
    G01308949Courtesy of FORD MOTOR CO.
  2. Remove the park gear.
    Fig 2: Removing Park Gear

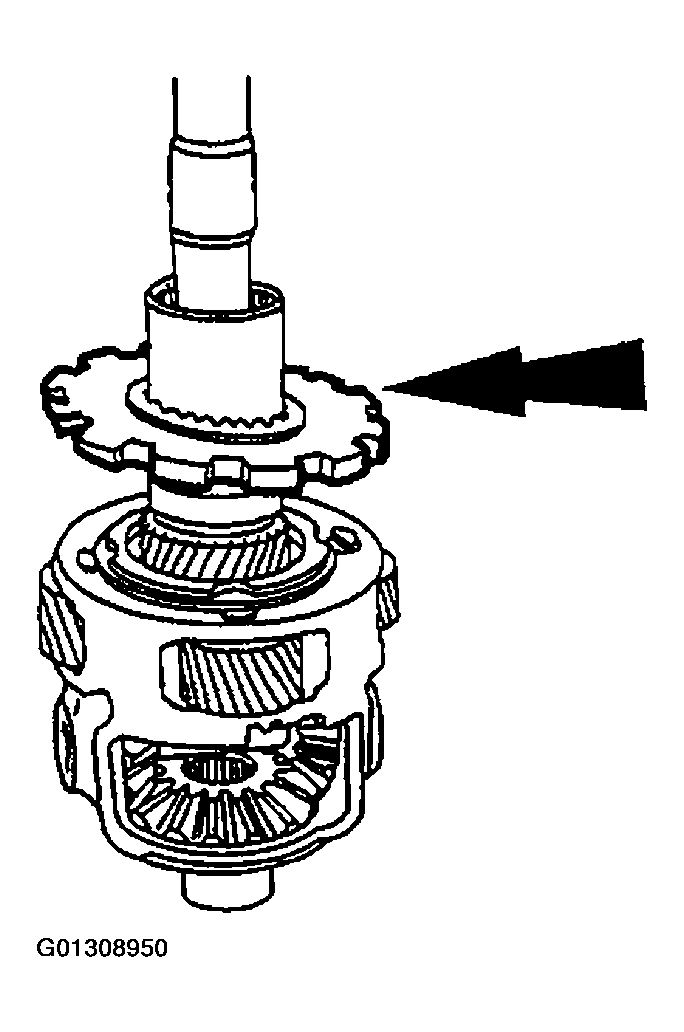

    G01308950Courtesy of FORD MOTOR CO.
  3. Remove the final drive sun gear and deflector.
    Fig 3: Removing Final Drive Sun Gear And Deflector

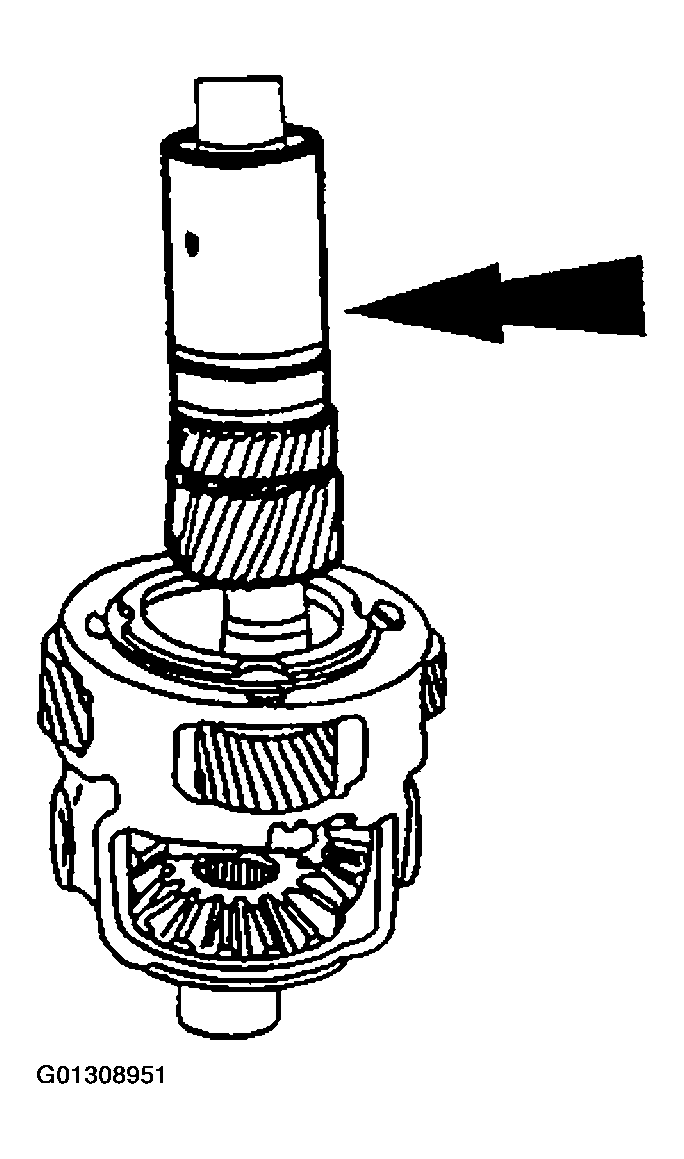

    G01308951Courtesy of FORD MOTOR CO.
  4. Remove the differential pinion shaft roll pin.
    Fig 4: Removing Differential Pinion Shaft Roll Pin

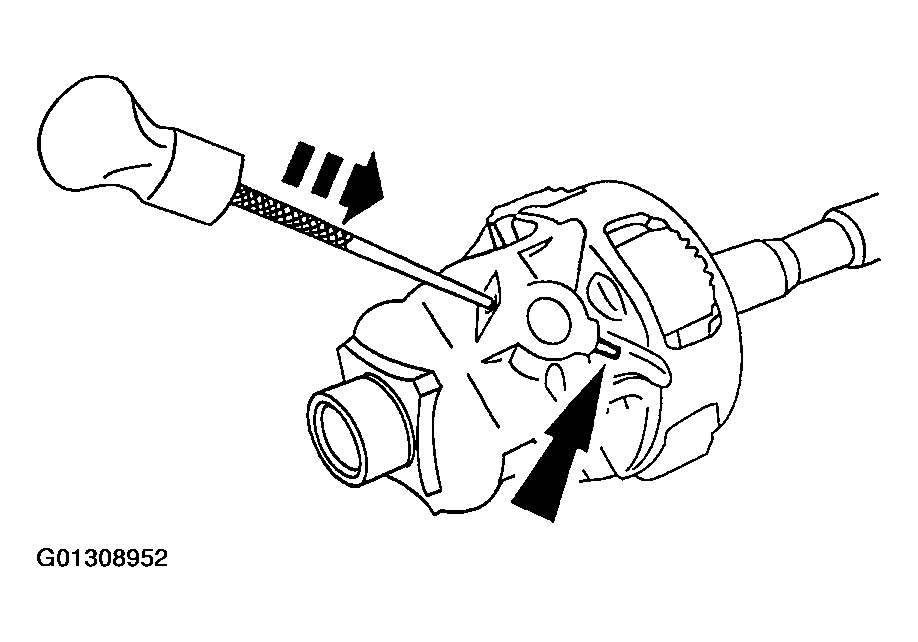

    G01308952Courtesy of FORD MOTOR CO.
  5. Remove the differential pinion shaft.
    Fig 5: Removing Differential Pinion Shaft

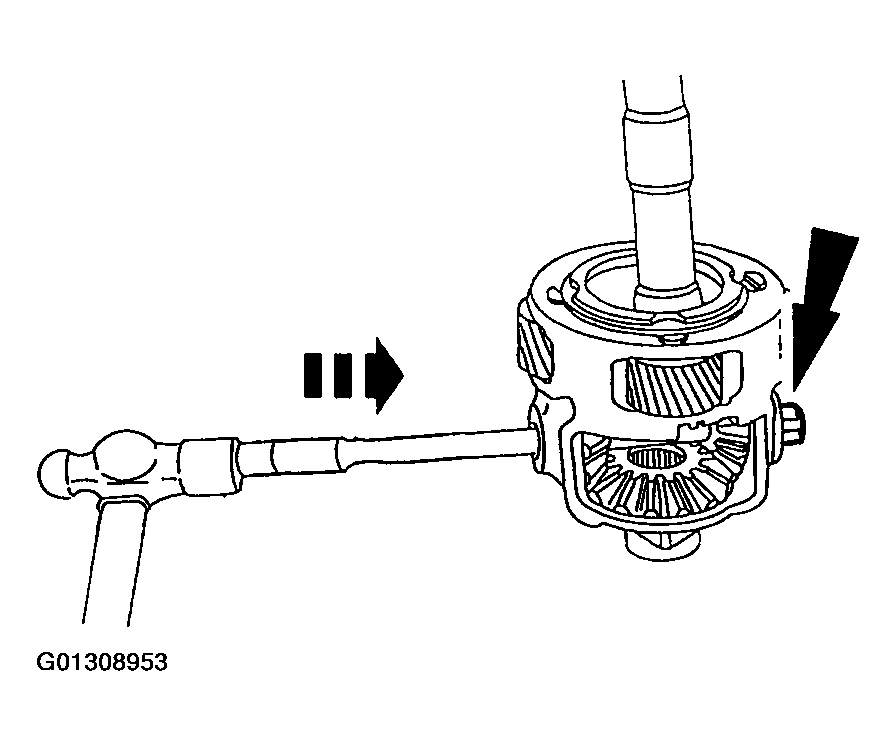

    G01308953Courtesy of FORD MOTOR CO.
  6. Rotate the output shaft and remove the differential pinion gear, and the differential pinion thrust washers.

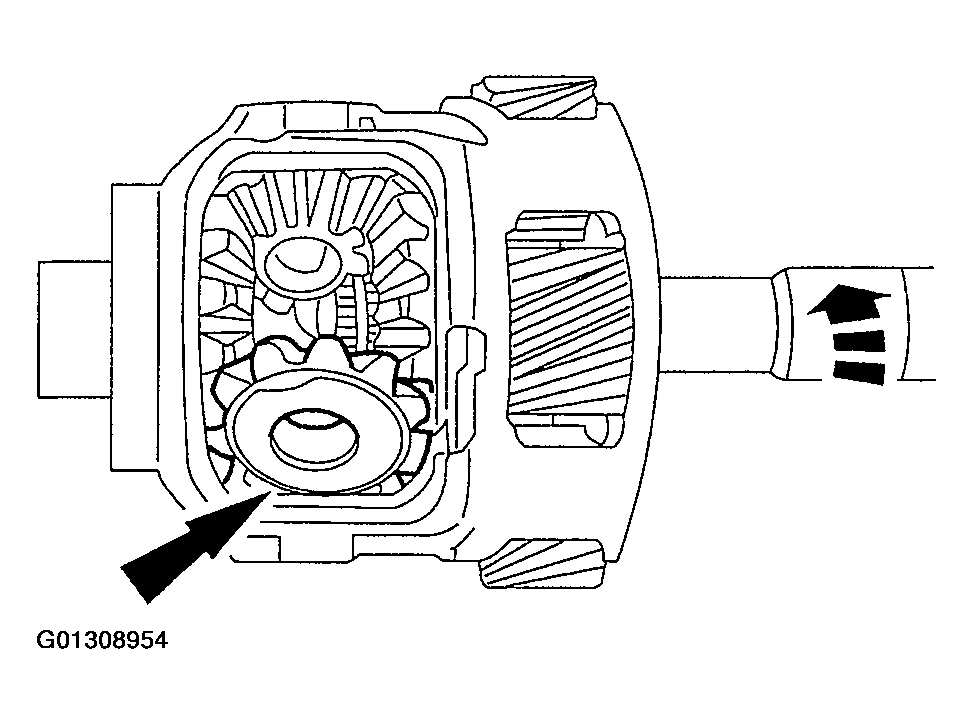

    Fig 6: Removing Differential Pinion Gear, And Differential Pinion Thrust Washers
    G01308954Courtesy of FORD MOTOR CO.
  7. Remove the differential side gear and differential side gear thrust washer.

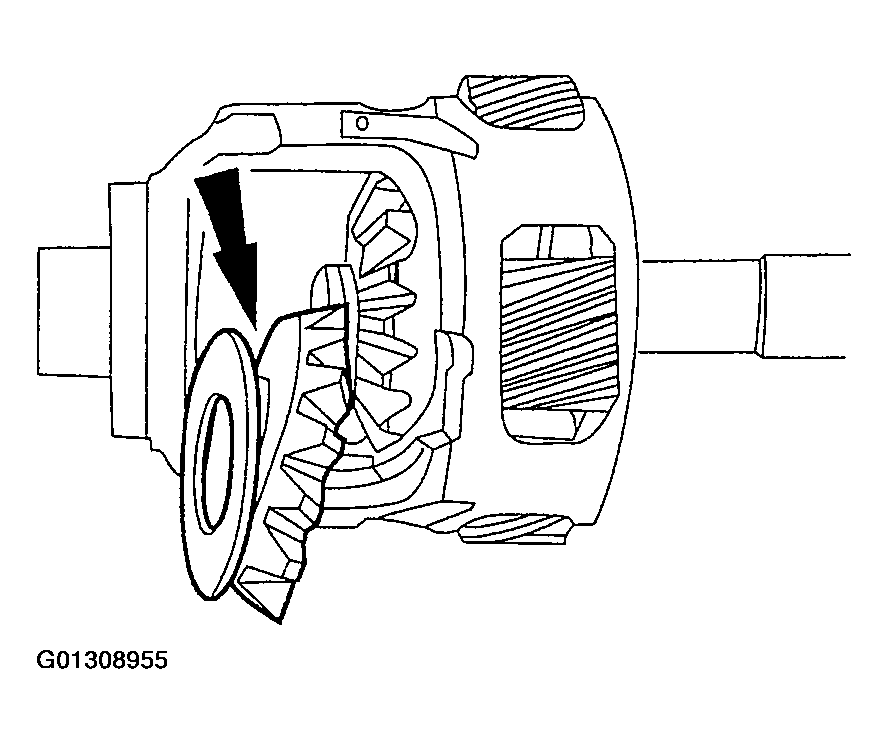

    Fig 7: Removing Differential Side Gear And Differential Side Gear Thrust Washer
    G01308955Courtesy of FORD MOTOR CO.
  8. Remove the differential side gear and differential side gear thrust washer.
    1. Remove the output shaft.
    2. Use the snap ring pliers to remove the retaining ring.
    3. Remove the output shaft.
    4. Remove the differential side gear and differential side gear thrust washer.

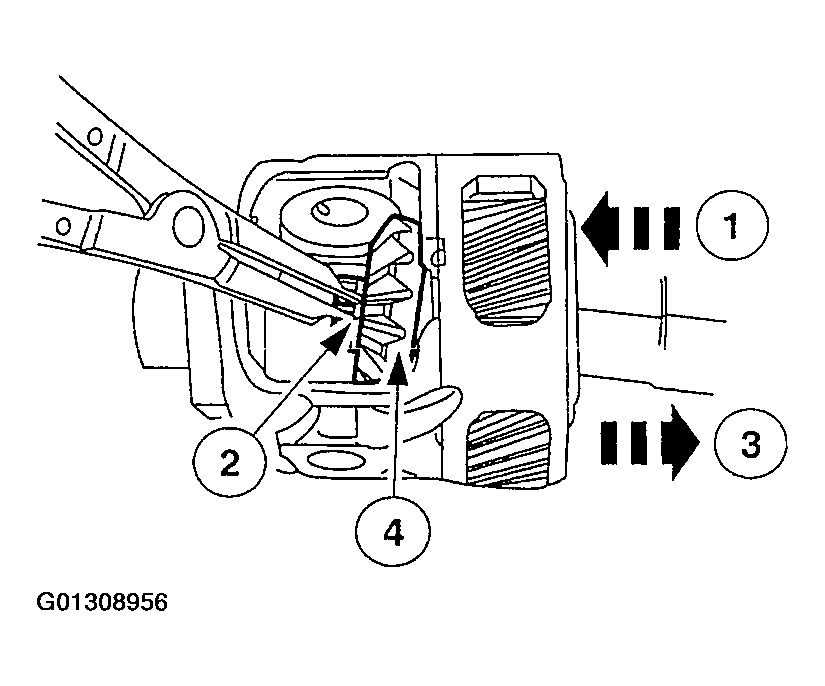

      Fig 8: Removing Differential Side Gear And Differential Side Gear Thrust Washer
      G01308956Courtesy of FORD MOTOR CO.
