2003 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Driven Sprocket Support: Disassembly

Remove the Teflon® seal rings and the No. 5 thrust washer.

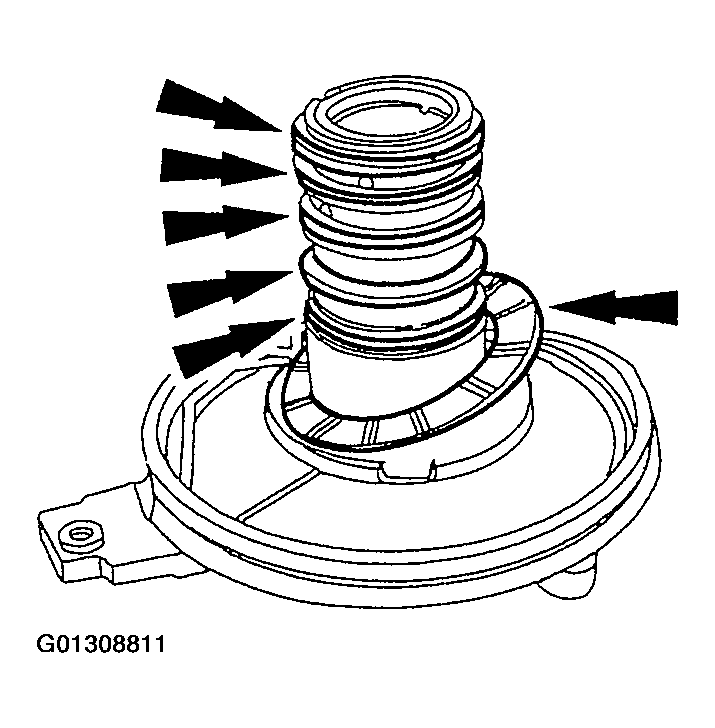

Fig 1: Removing Teflon® Seal Rings And Thrust Washer
Courtesy of FORD MOTOR CO.

NOTE: If the driven sprocket bearing is damaged it should be replaced.
