2003 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE
Driven Sprocket Support: Assembly

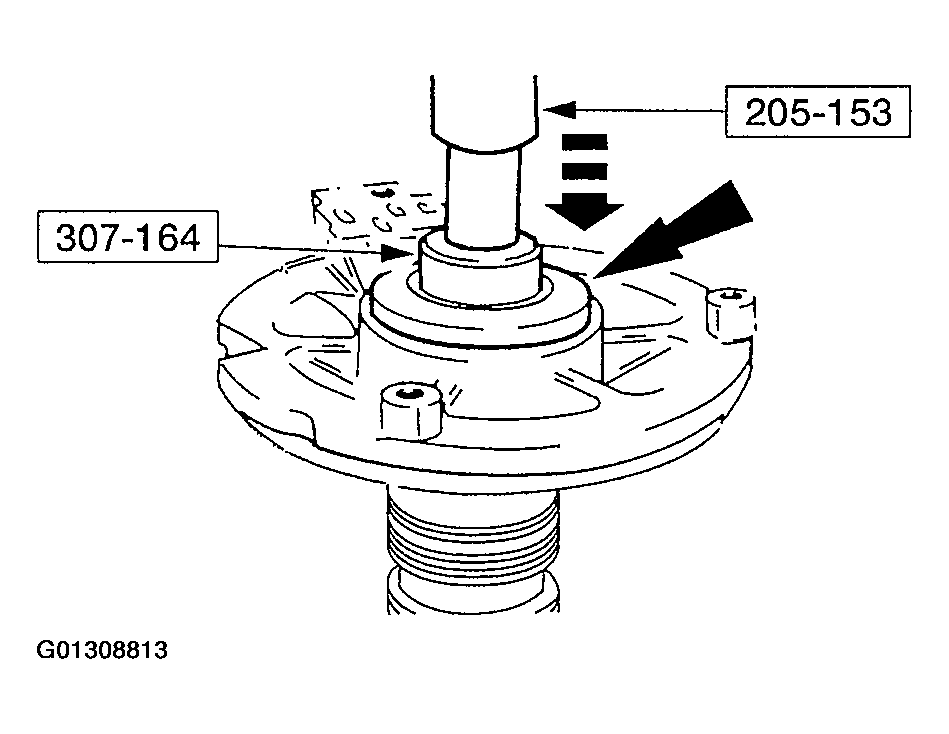

- If removed, install a new driven sprocket bearing. Using the special tools and an arbor press install a new driven sprocket bearing.

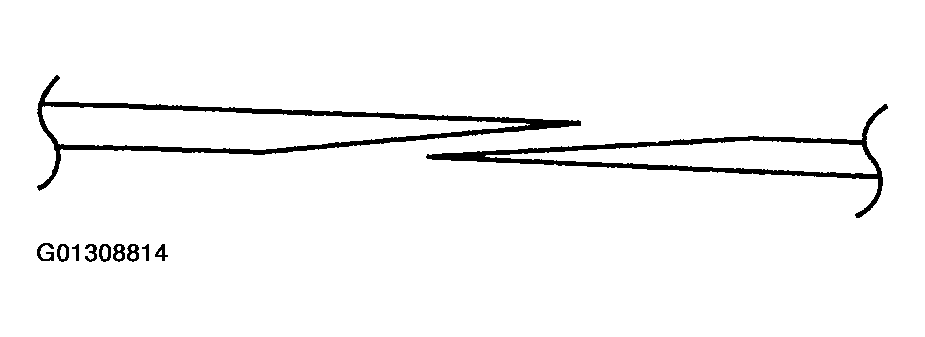

- Make sure that the seals are mated correctly during installation.
CAUTION:
The seal rings must be installed correctly. Transmission failure could result.
