2003 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Timing Chain: Removal

Remove the timing cover. For additional information, refer to ENGINE FRONT COVER .
Remove the camshaft position sensor drive gear.
1. Remove the bolt.
2. Remove the camshaft position sensor drive gear.

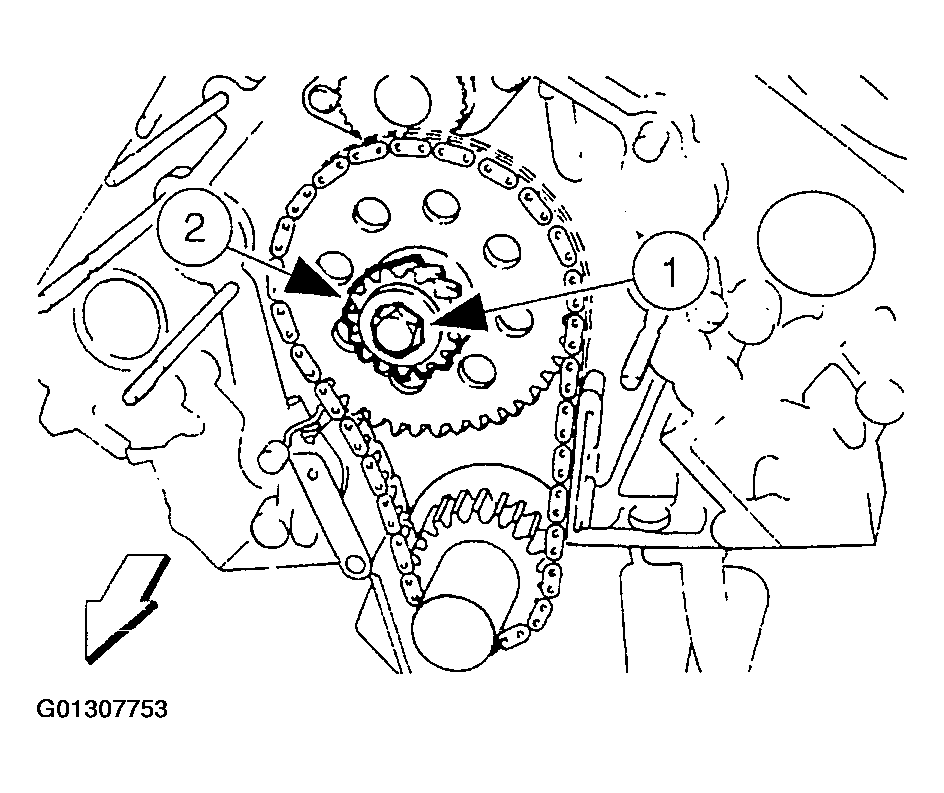

  Fig 1: Identifying Camshaft Position Sensor Drive Gear
  Courtesy of FORD MOTOR CO.
Rotate the crankshaft (6303) until the timing marks and keyways align.

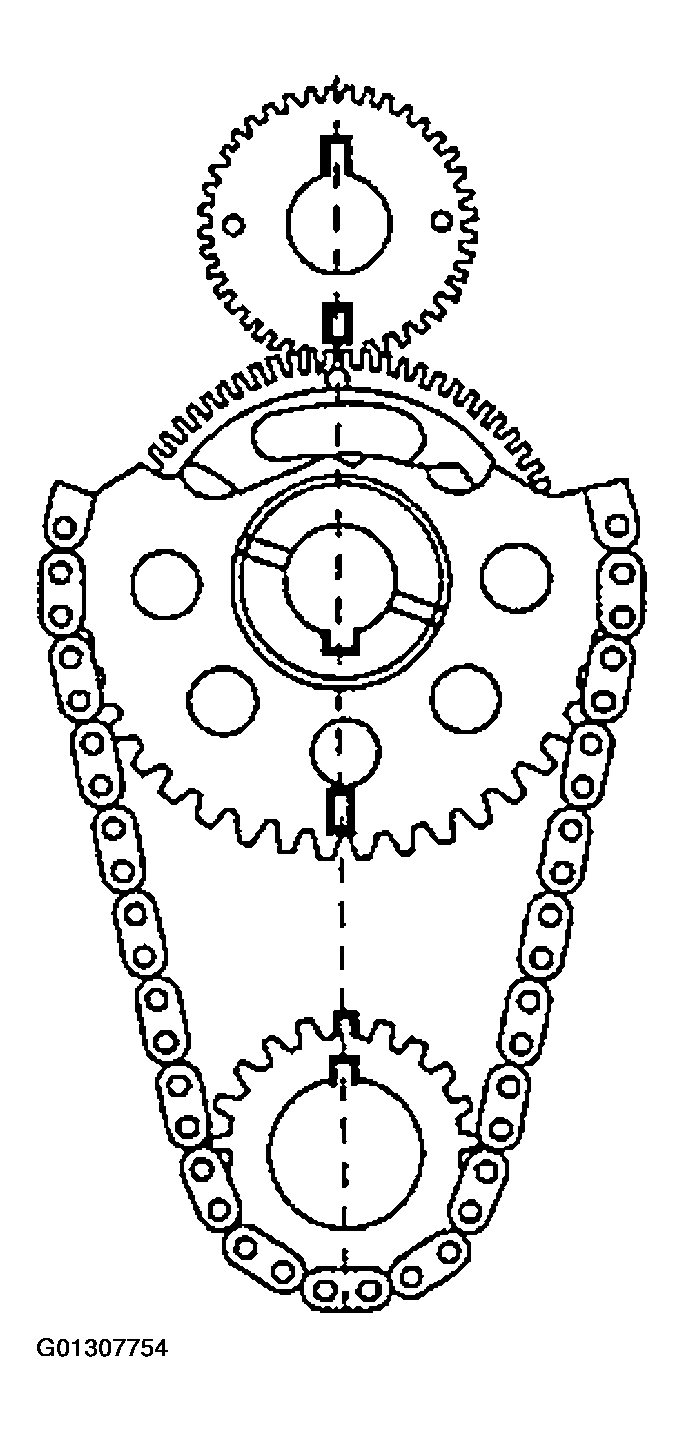

Fig 2: Aligning Crankshaft (6303) Timing Marks & Keyways
Courtesy of FORD MOTOR CO.
Compress and install a retaining pin to hold the timing chain tensioner (6L266).

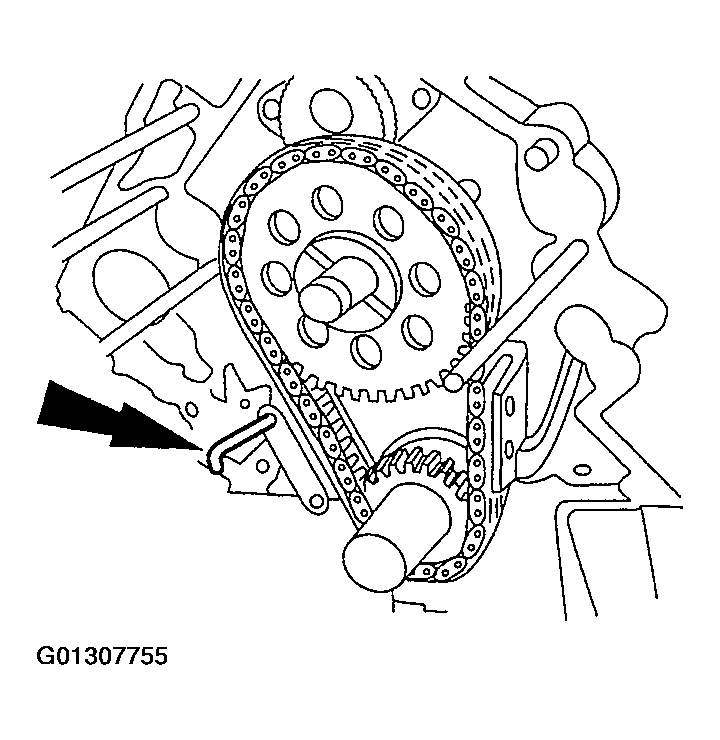

Fig 3: Identifying Timing Chain Tensioner (6L266) Retaining Pin
Courtesy of FORD MOTOR CO.
Remove the camshaft sprocket (6256), the crankshaft sprocket (6306) and the timing chain/belt (6268) as an assembly.

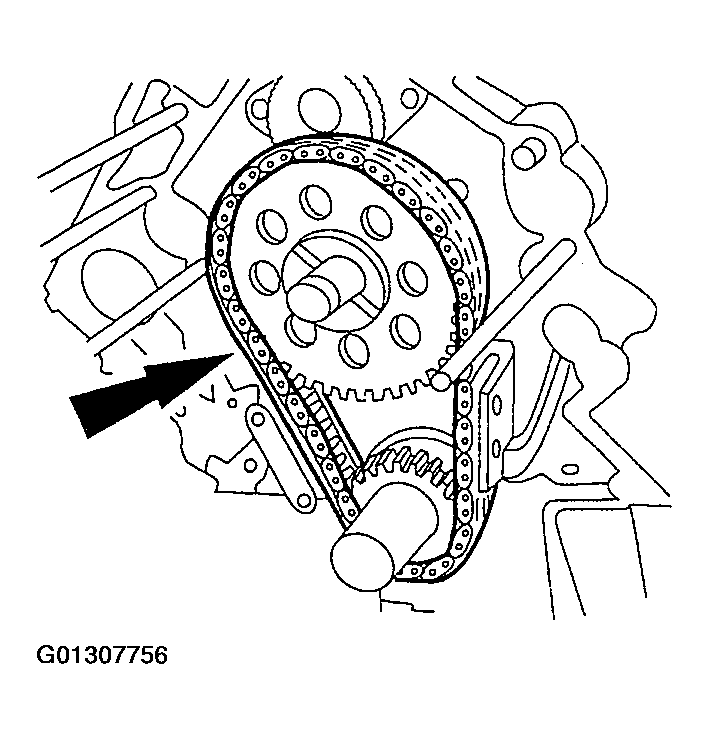

Fig 4: Removing Timing Chain Assembly
Courtesy of FORD MOTOR CO.
Remove the timing chain tensioner.
1. Remove the bolts.
2. Remove the timing chain tensioner.

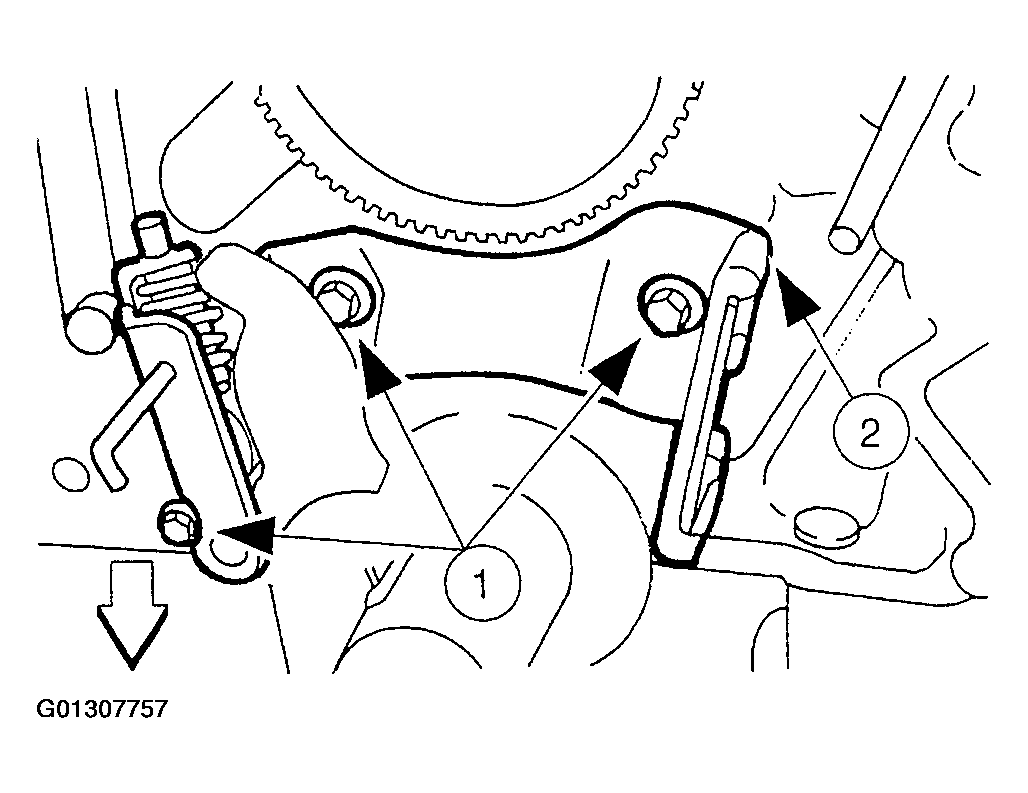

  Fig 5: Identifying Timing Chain Tensioner Bolt
  Courtesy of FORD MOTOR CO.
