2003 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Removal and Installation

  1. Remove the cowl top vent panel grille assembly. For additional information, refer to FRONT END BODY PANELS .
  2. Disconnect the electrical connectors.

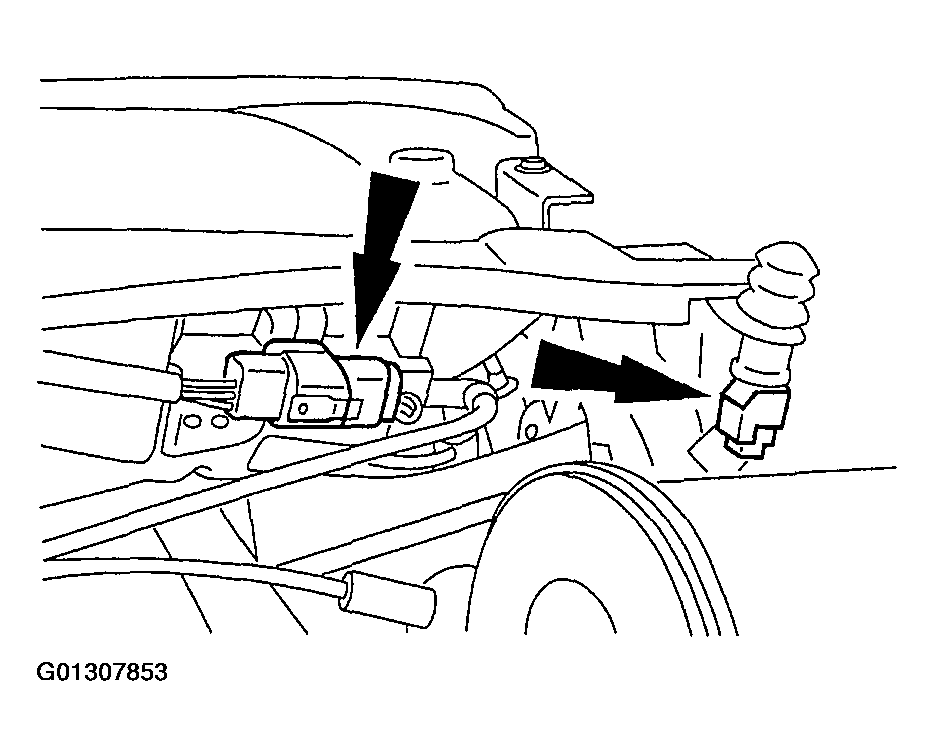

    Fig 1: Locating Electrical Connectors
    G01307853Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the lower cowl top vent panel assembly.

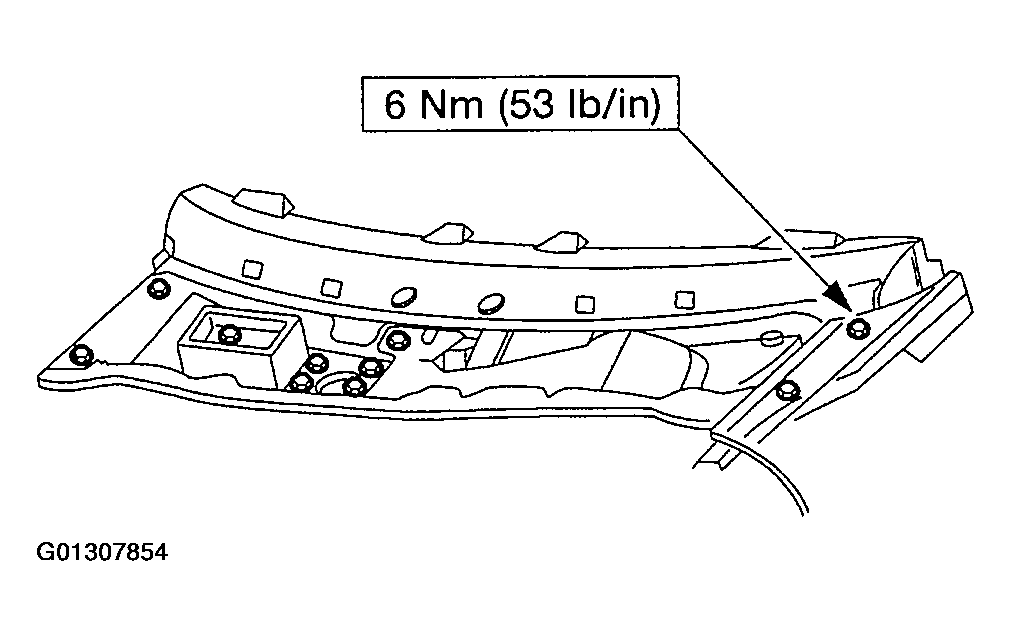

    Fig 2: Identifying Lower Cowl Top Vent Panel Assembly Bolts
    G01307854Courtesy of FORD MOTOR CO.
  4. Remove the RH engine mount nut.

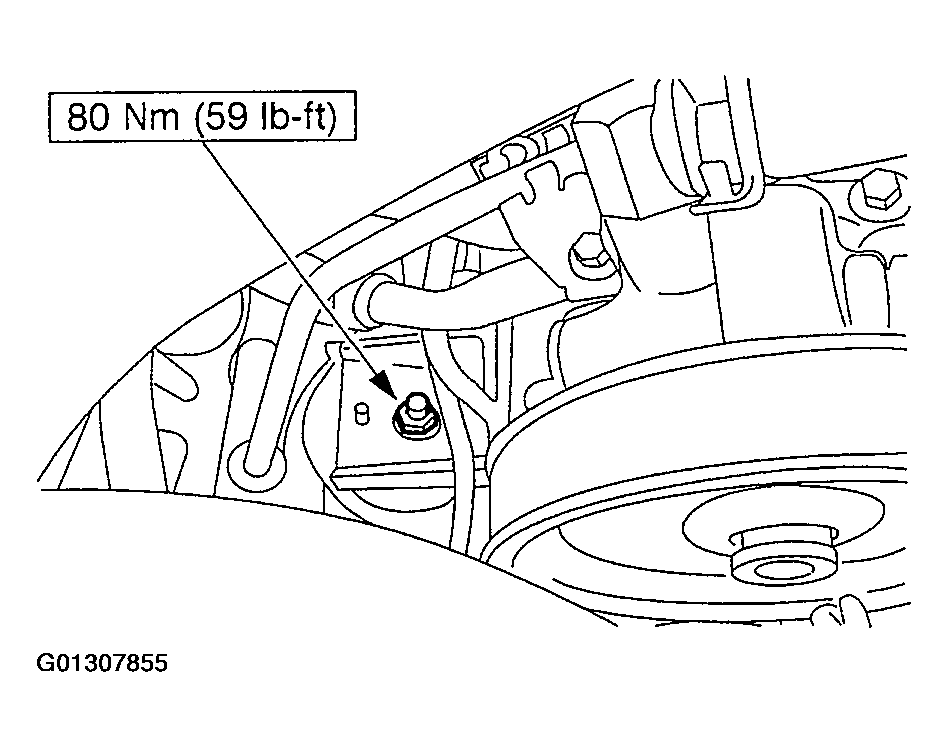

    Fig 3: Identifying RH Engine Mount Nut
    G01307855Courtesy of FORD MOTOR CO.
  5. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  6. Remove the RH nut.

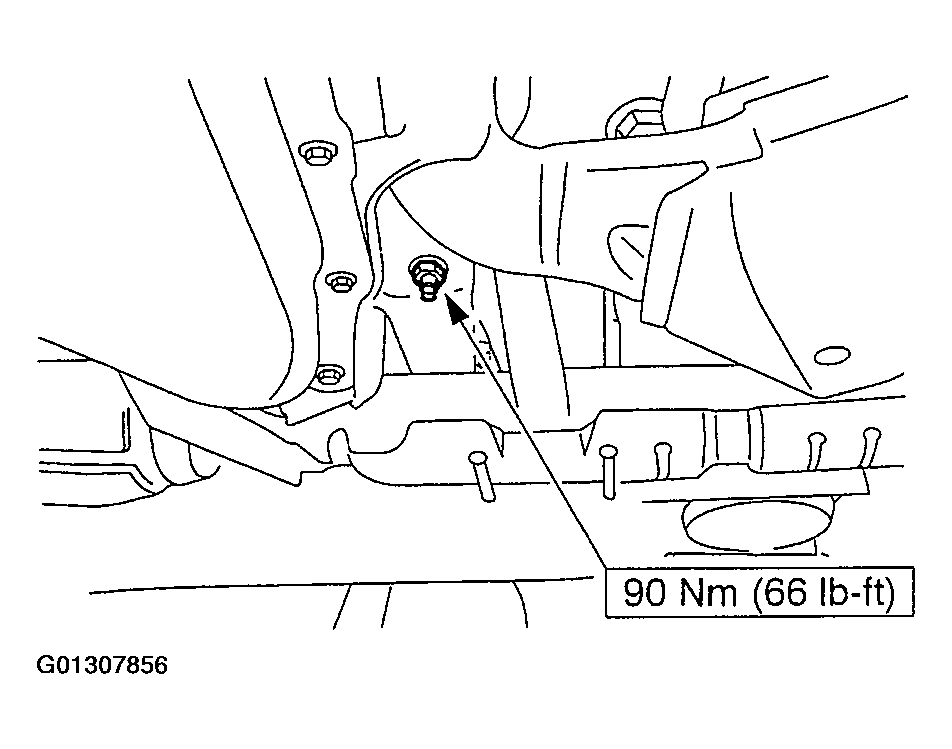

    Fig 4: Identifying RH Nut
    G01307856Courtesy of FORD MOTOR CO.
  7. Remove the LH engine mount nut.

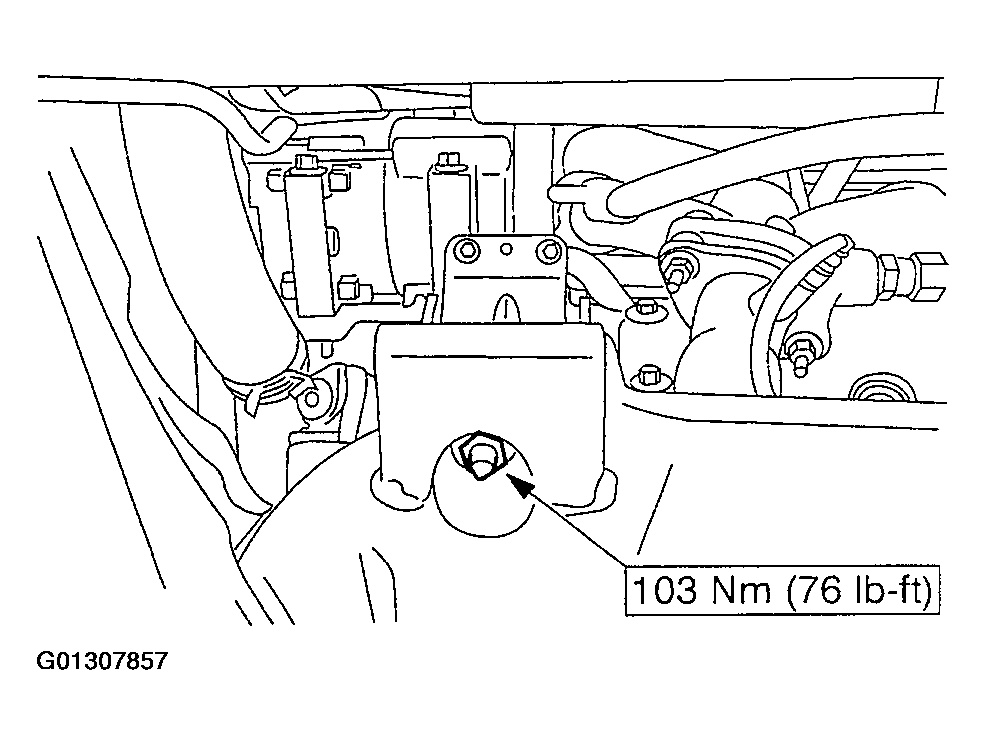

    Fig 5: Identifying LH Engine Mount Nut
    G01307857Courtesy of FORD MOTOR CO.
  8. Remove the LH front wheel. For additional information, refer to WHEELS & TIRES .
  9. Remove the LH engine mount nuts.

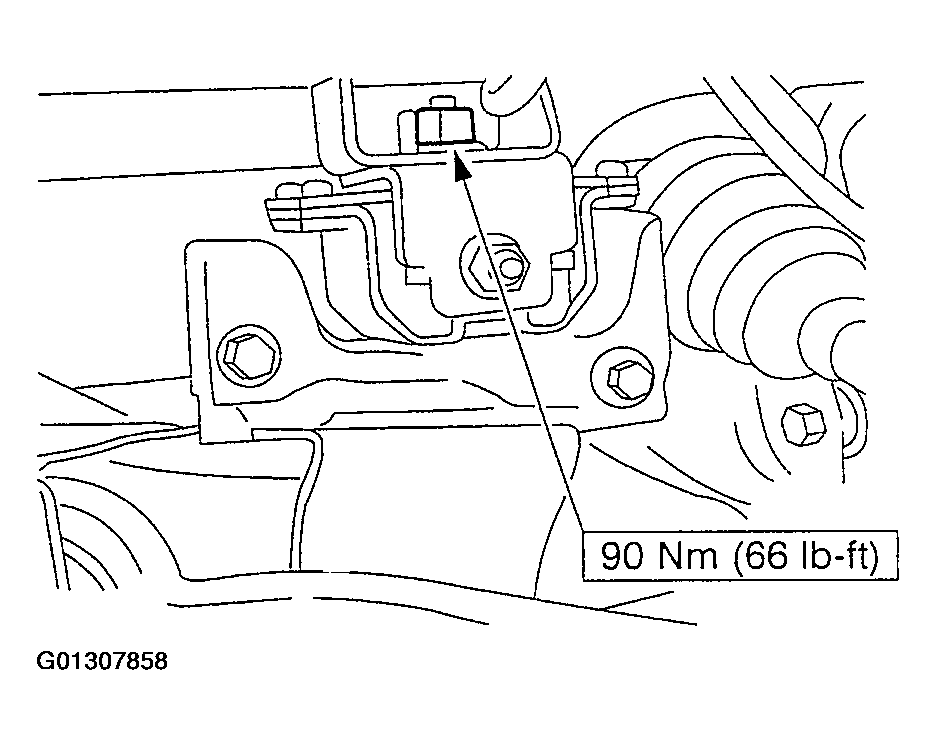

    Fig 6: Identifying LH Engine Mount Nuts
    G01307858Courtesy of FORD MOTOR CO.
  10. Remove the LH engine mount bolts.

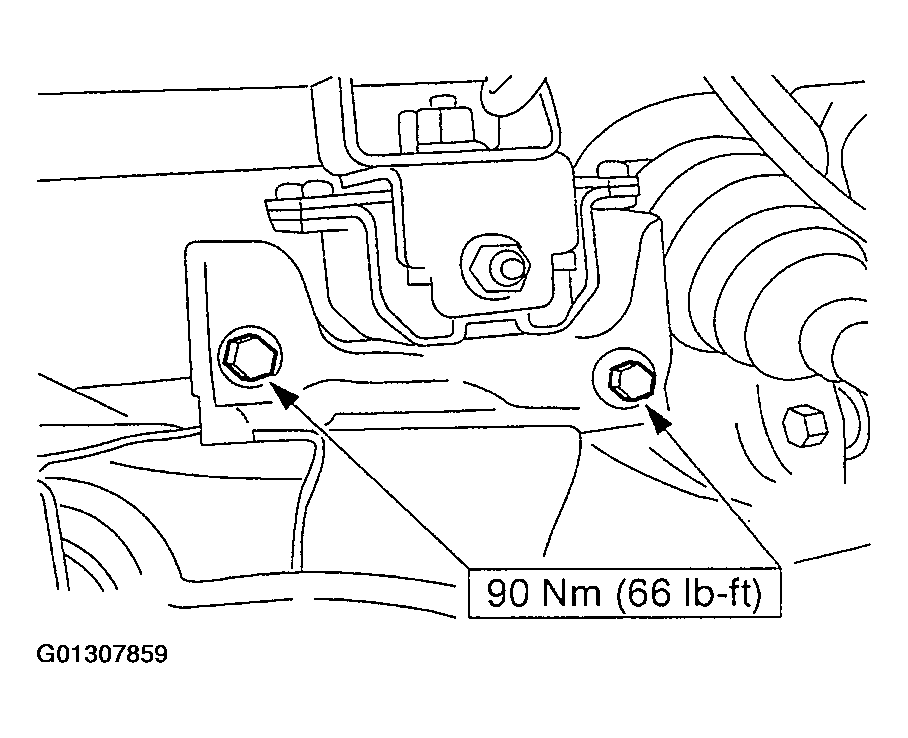

    Fig 7: Identifying LH Engine Mount Bolts
    G01307859Courtesy of FORD MOTOR CO.
  11. Lower the vehicle.
  12. Using the special tool, raise the engine 50.8 mm (2 inches).

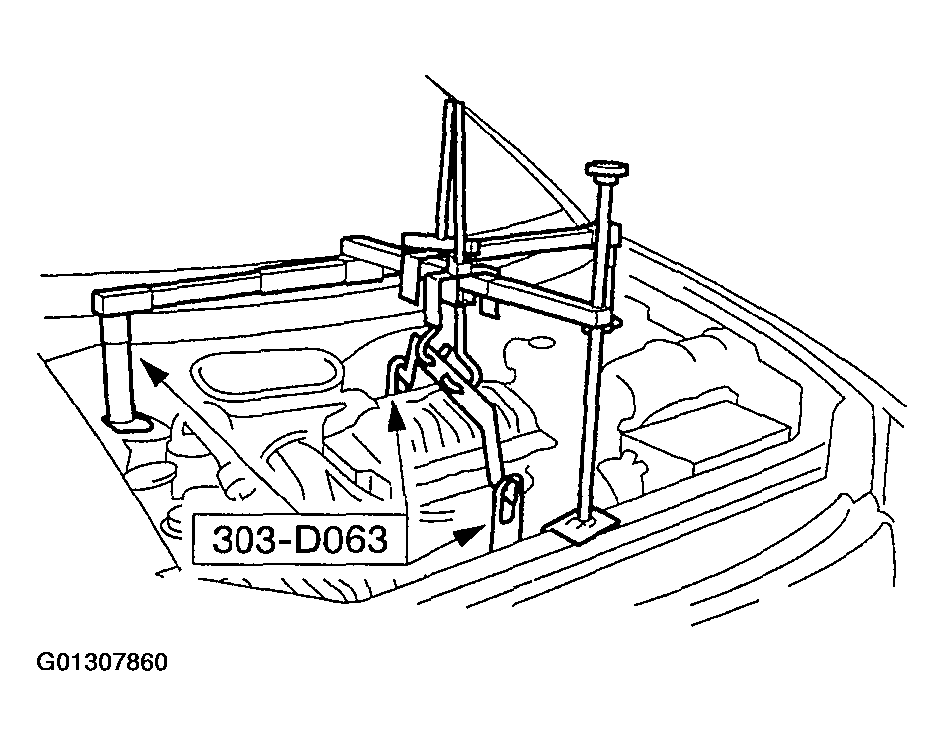

    Fig 8: Lifting Engine
    G01307860Courtesy of FORD MOTOR CO.
  13. Raise the vehicle.
  14. If necessary, remove the LH bolts and the motor mount.

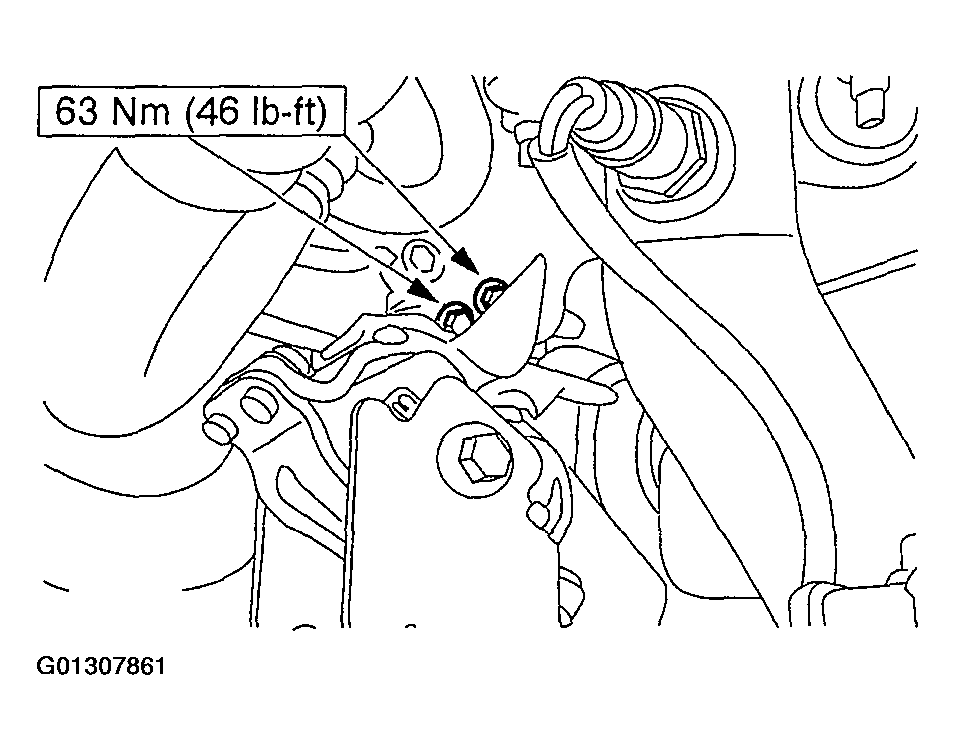

    Fig 9: Identifying LH Motor Mount Bolts
    G01307861Courtesy of FORD MOTOR CO.
  15. If necessary, remove the RH motor mount.
  16. To install, reverse the removal procedure.
