2003 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE
Piston - Diameter

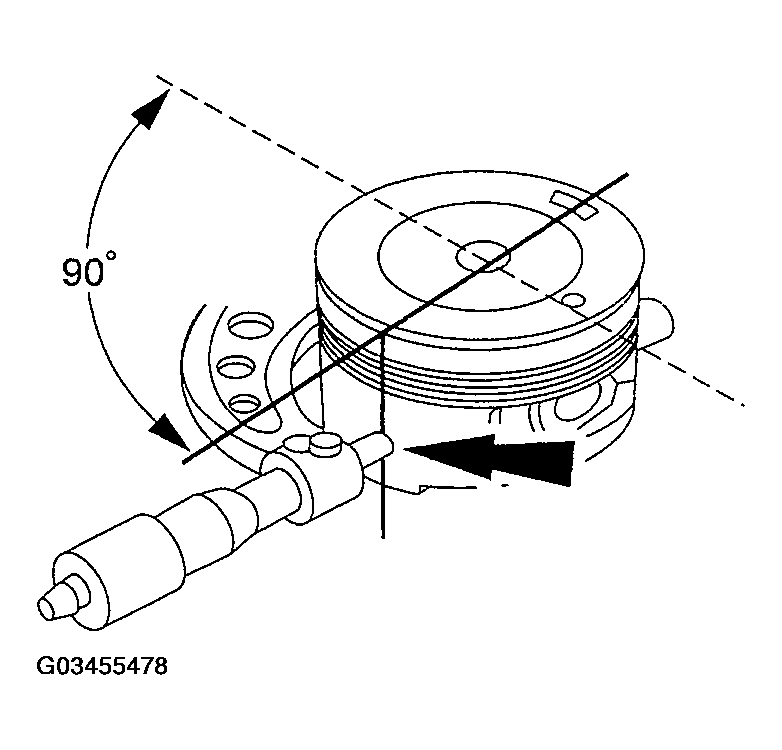

- Measure the piston diameter 90 degrees from the piston pin at the point indicated. See Fig 1.
- If out of specification, install new components as necessary. Refer to SPECIFICATIONS . Refer to ENGINE article for the procedure.
