2003 Ford Focus L4-2.3L VIN ZFACTORY OEM SERVICE PROCEDURE
Tests KB: Fuel Pump Driver Module (FPDM)
KB INTRODUCTION 1 OF 6:
KB INTRODUCTION 2 OF 6:
KB INTRODUCTION 3 OF 6:
KB INTRODUCTION 4 OF 6:
KB INTRODUCTION 5 OF 6:
KB INTRODUCTION 6 OF 6:
KB1 - KB2:
KB3:
KB4 - KB5:
KB6 - KB8:
KB9 - KB11:
KB13 - KB16:
KB17 - KB18:
KB25:

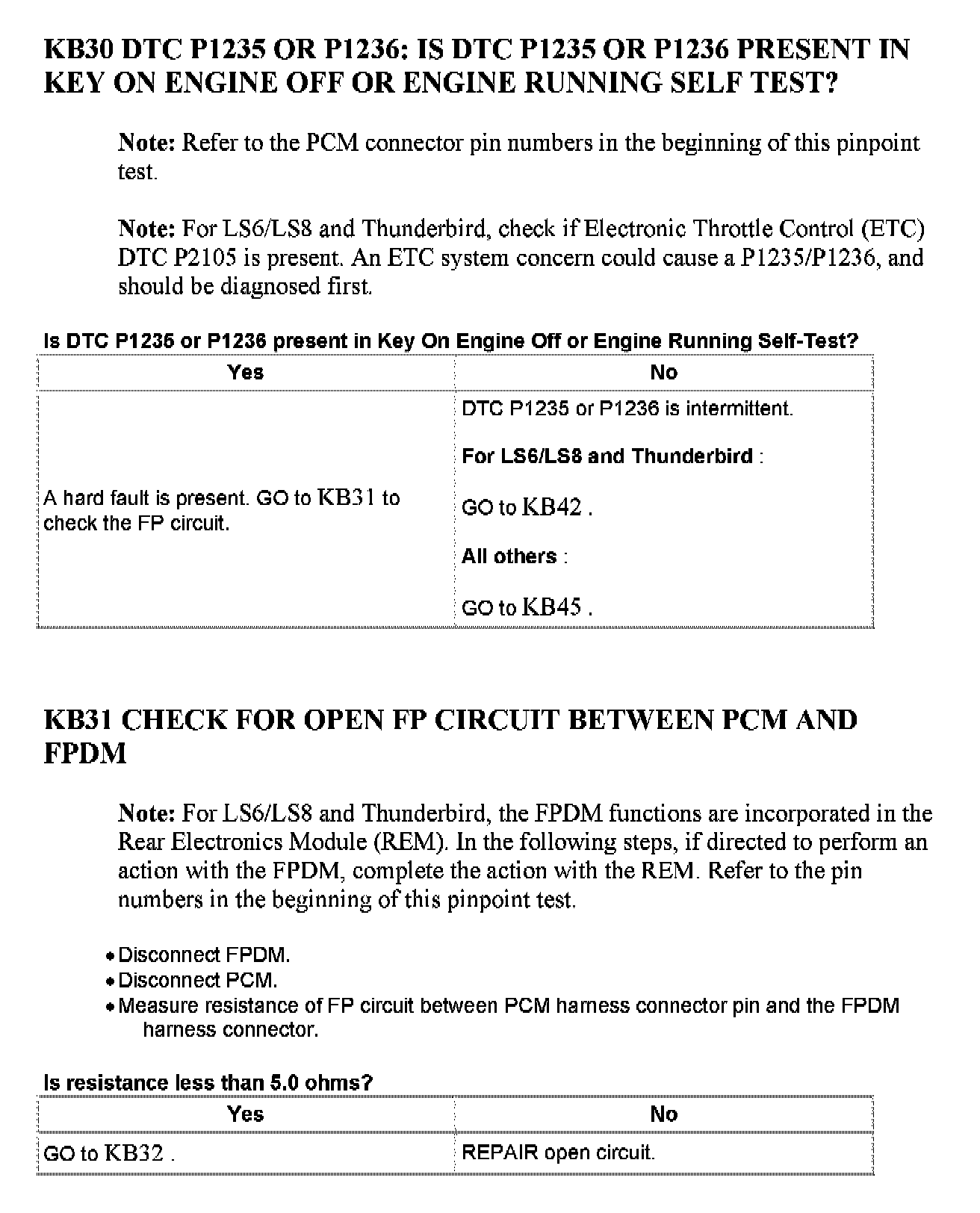

KB30 - KB31:

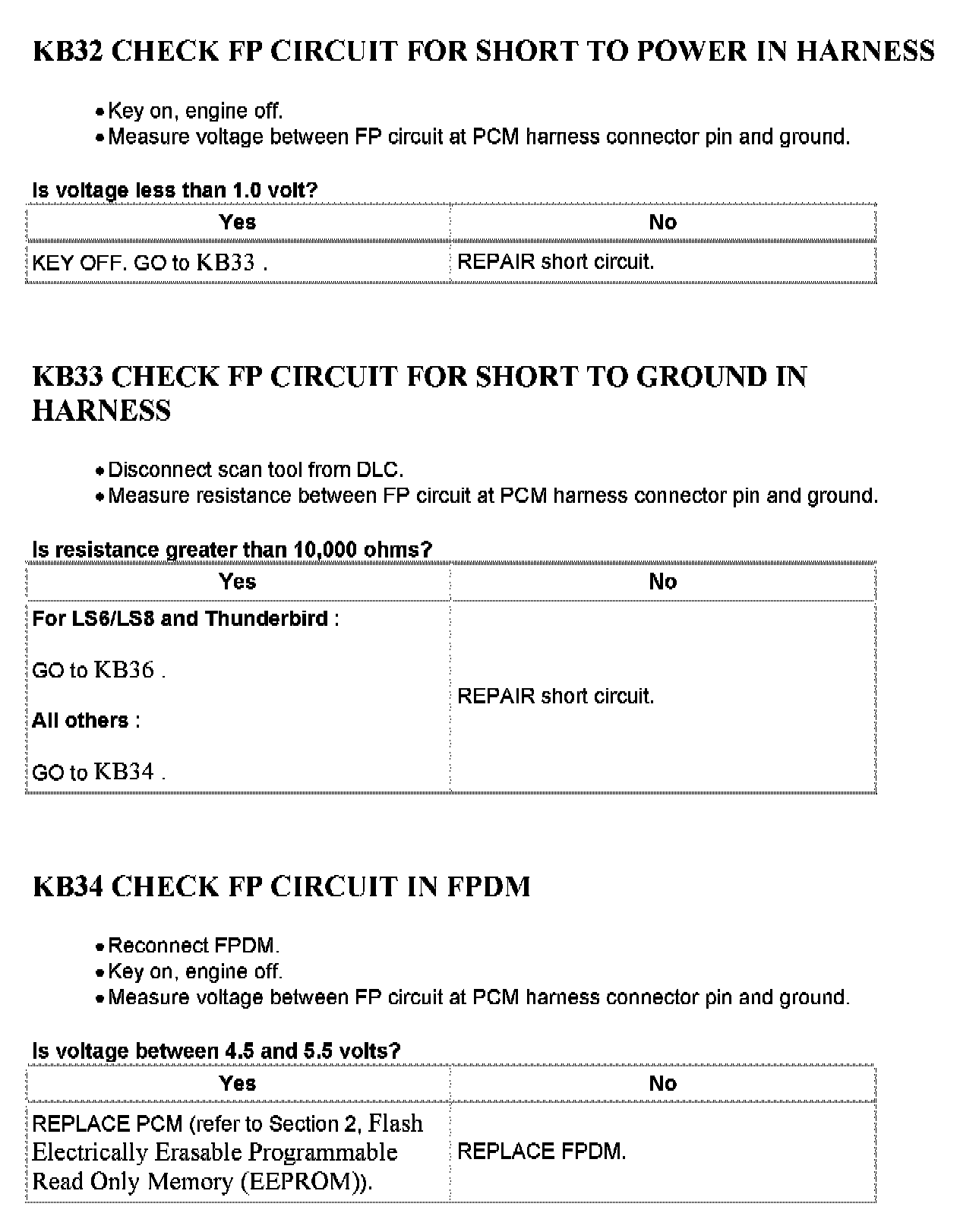

KB32 - KB34:
KB36 - KB38:
KB40 - KB42:
KB45 - KB47:
KB48 - KB50:
KB51 - KB52:

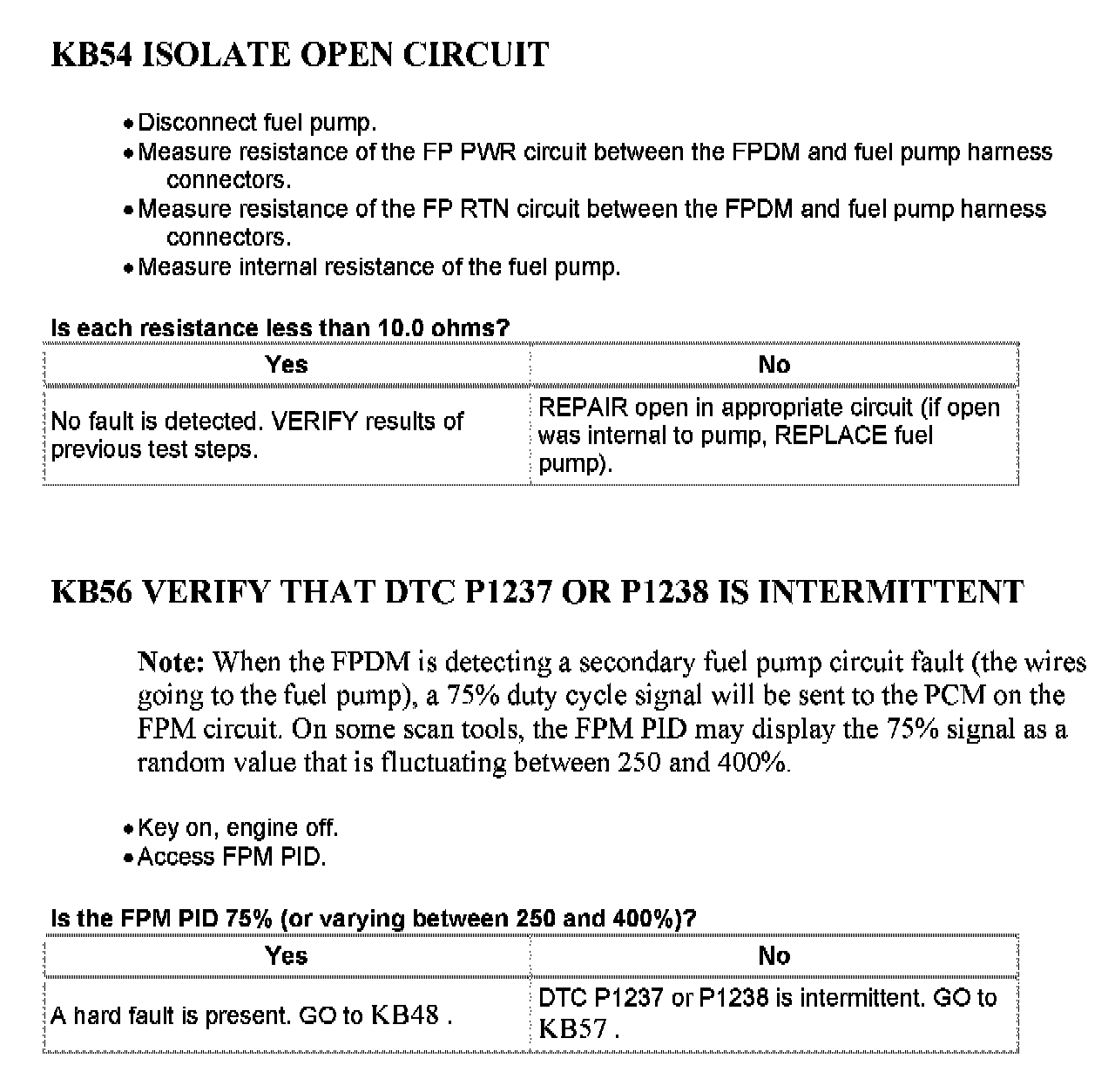

KB54 - KB56:
KB57 - KB58:
KB59 - KB61:
KB62 - KB64:

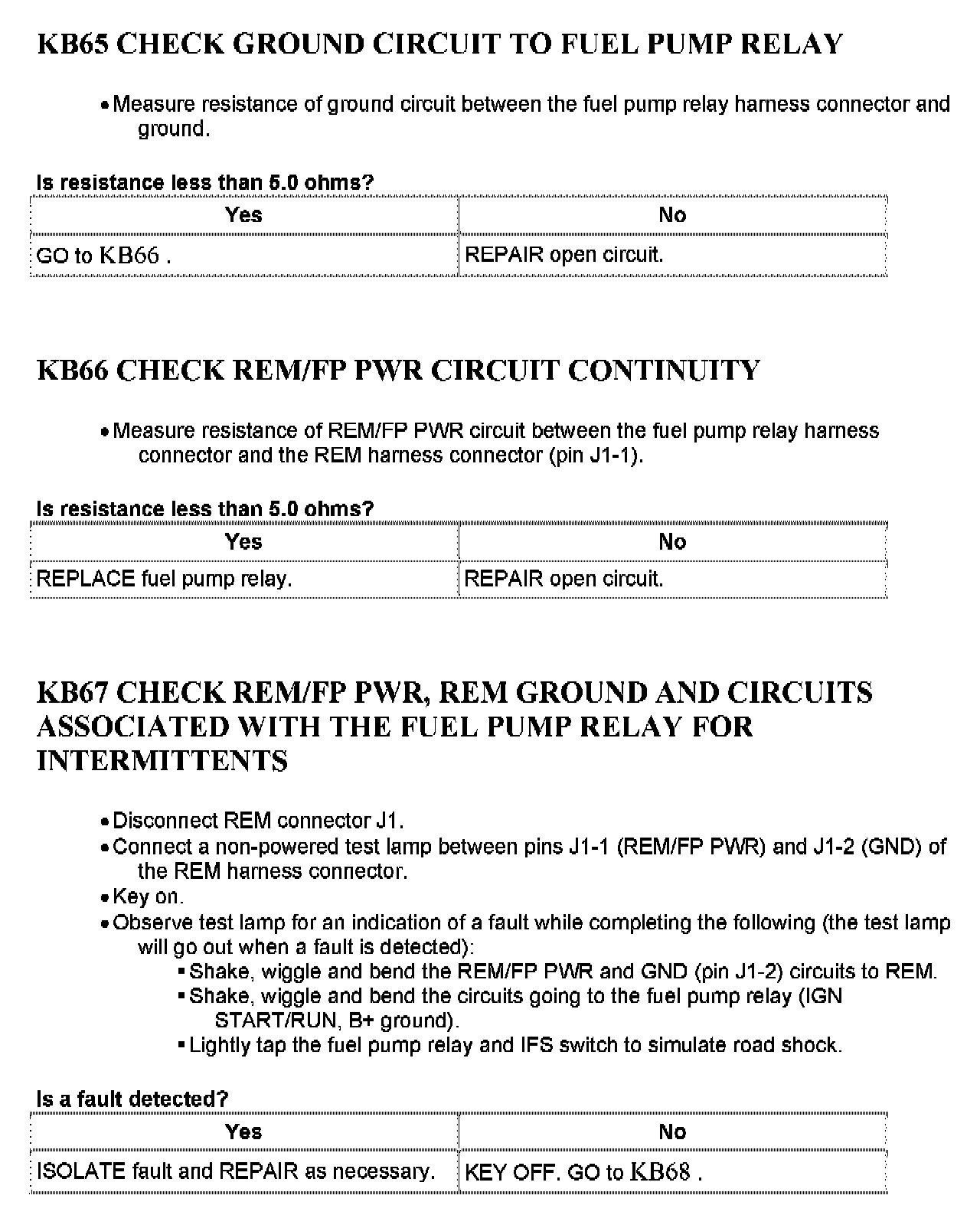

KB65 - KB67:
KB68 - KB69:
KB70 - KB71:
KB72 - KB73:
KB75 - KB76:
KB80 - KB85:

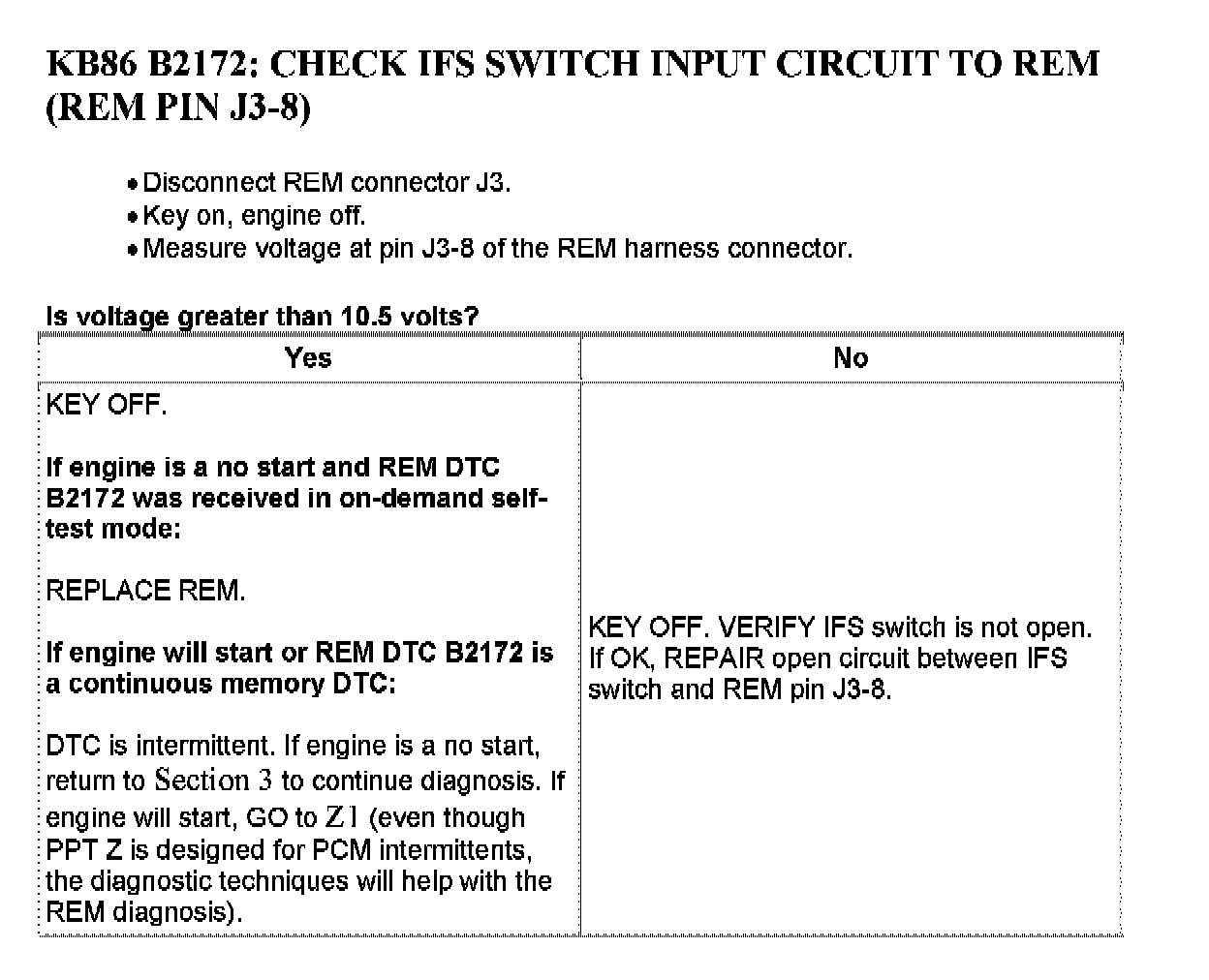

KB86:
