2003 Ford Focus L4-2.3L VIN ZFACTORY OEM SERVICE PROCEDURE
Test X: Constant Control Relay Module (CCRM)
X INTRODUCTION 1 OF 4:
X INTRODUCTION 2 OF 4:
X INTRODUCTION 3 OF 4:
X INTRODUCTION 4 OF 4:

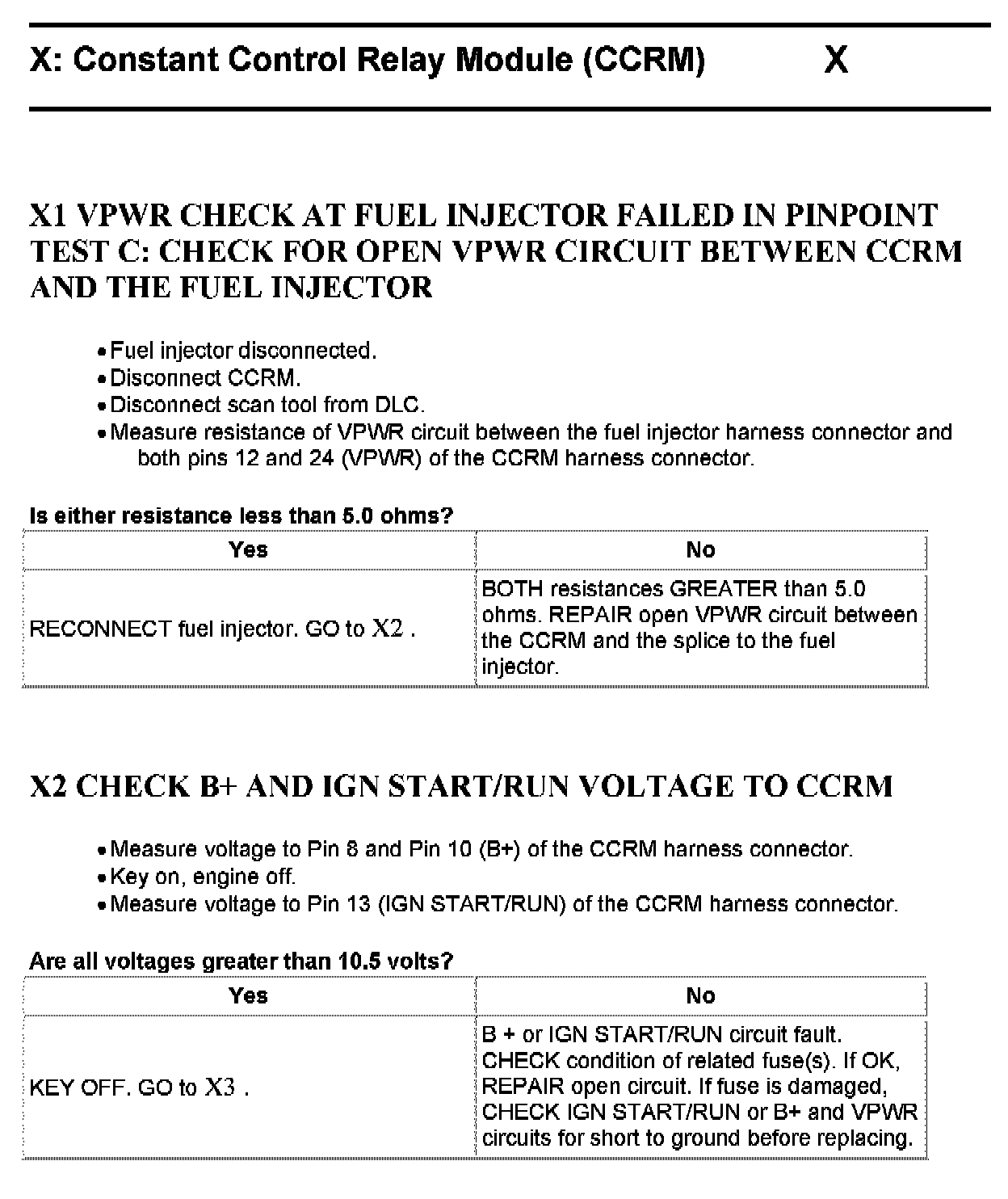

X1 - X2:
X3 - X15:
X16 - X17:
X18 - X20:
X21 - X24:
X25 - X30:
X31 - X35:
X36 - X41:
X42 - X43:
X44 - X50:
X51 - X54:
X65 - X70:
X71 - X73:
X80 - X81:
X82 - X83:
X84:
X98:
X99 - X101:

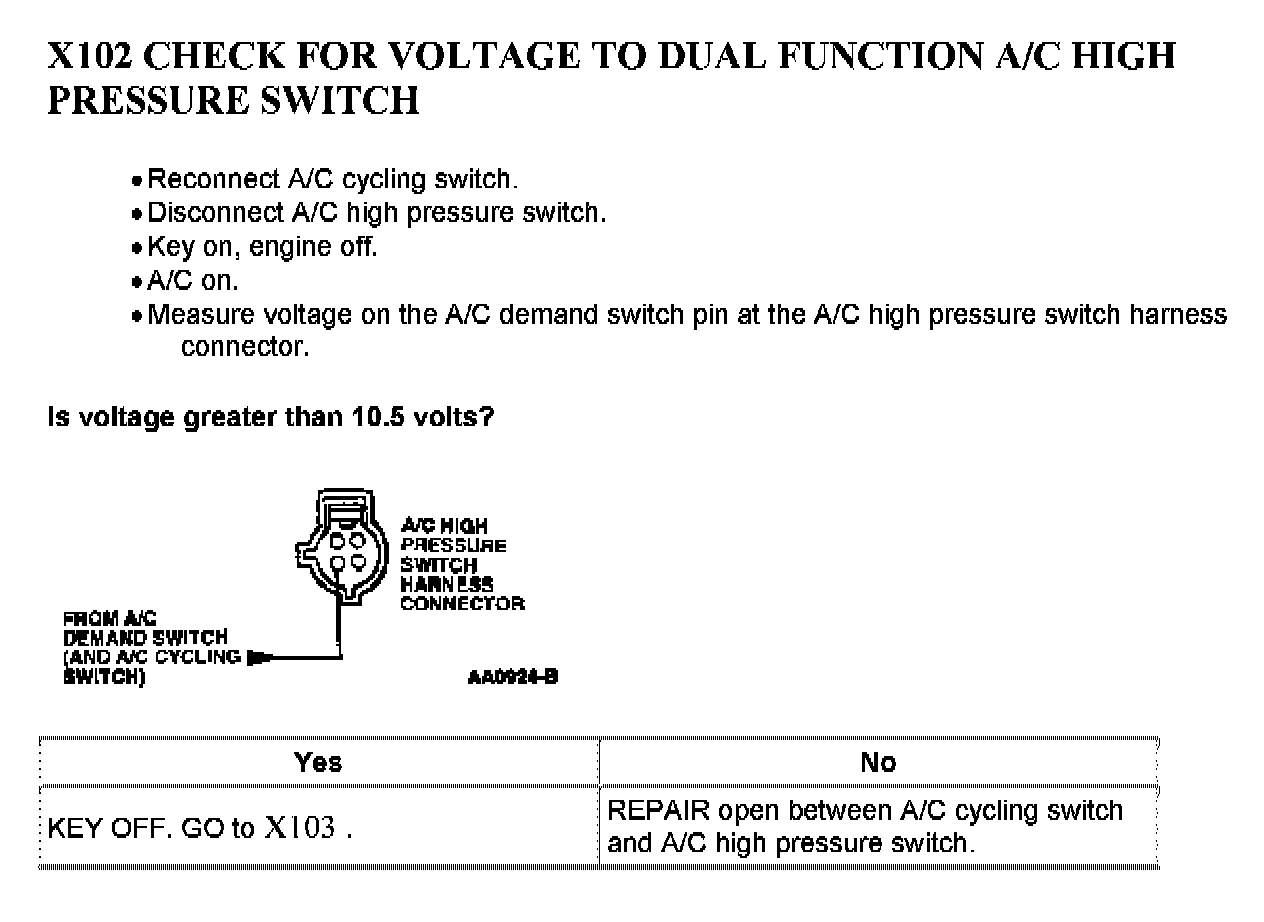

X102:
X103 - X104:
X105 - X106:
X107 - X109:
X110 - X111:
X115 - X116:

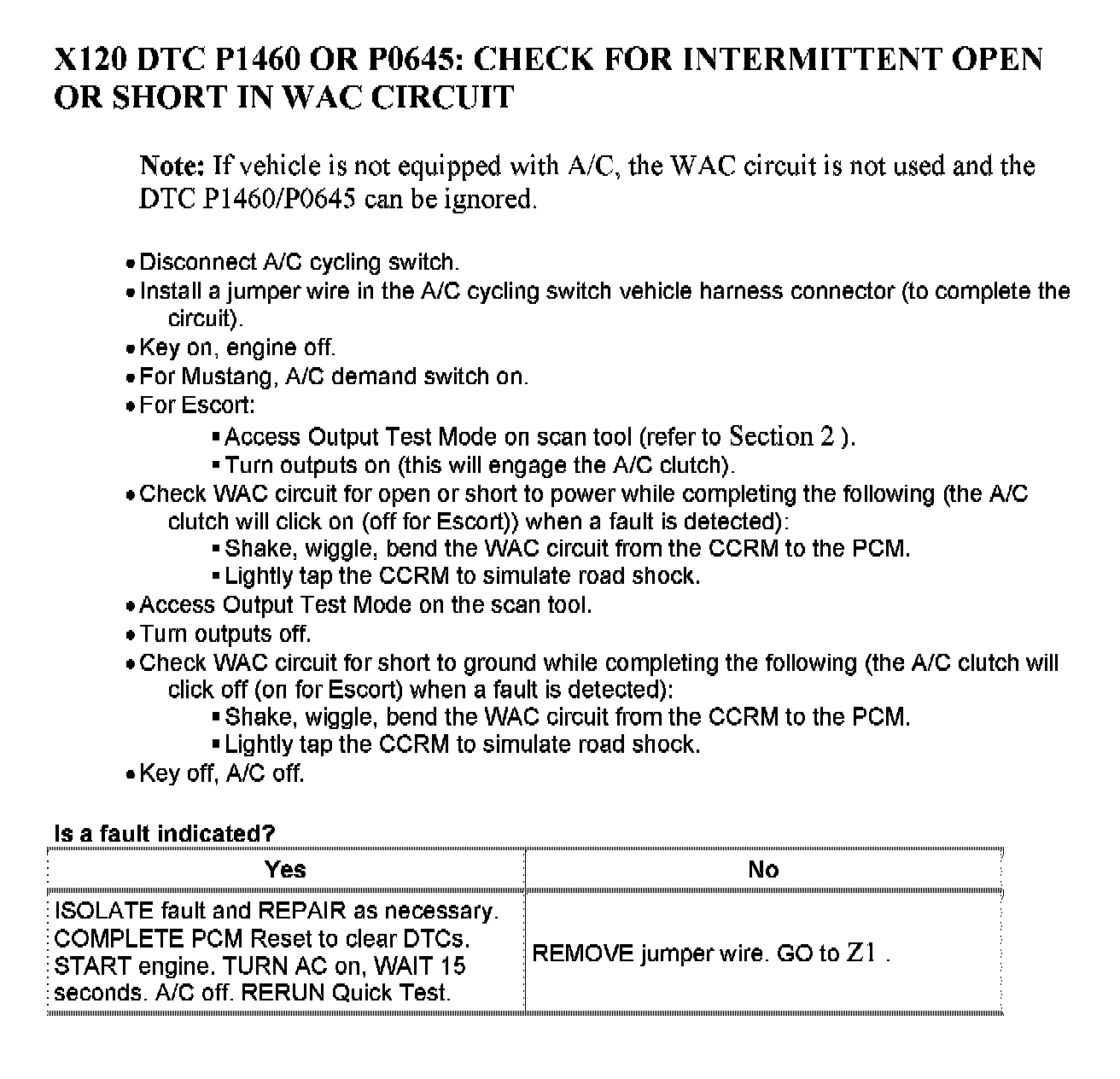

X120:

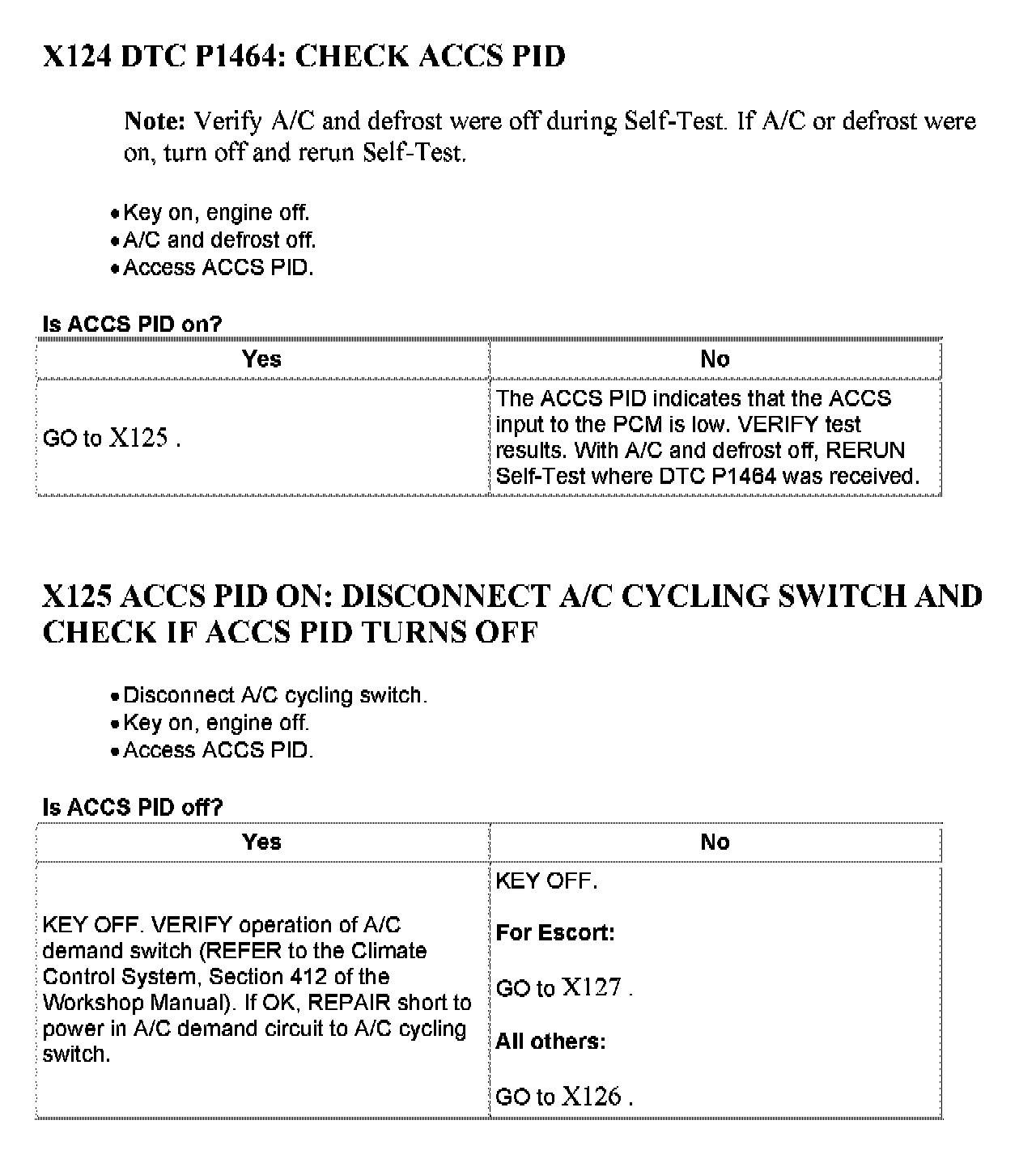

X124 - X125:

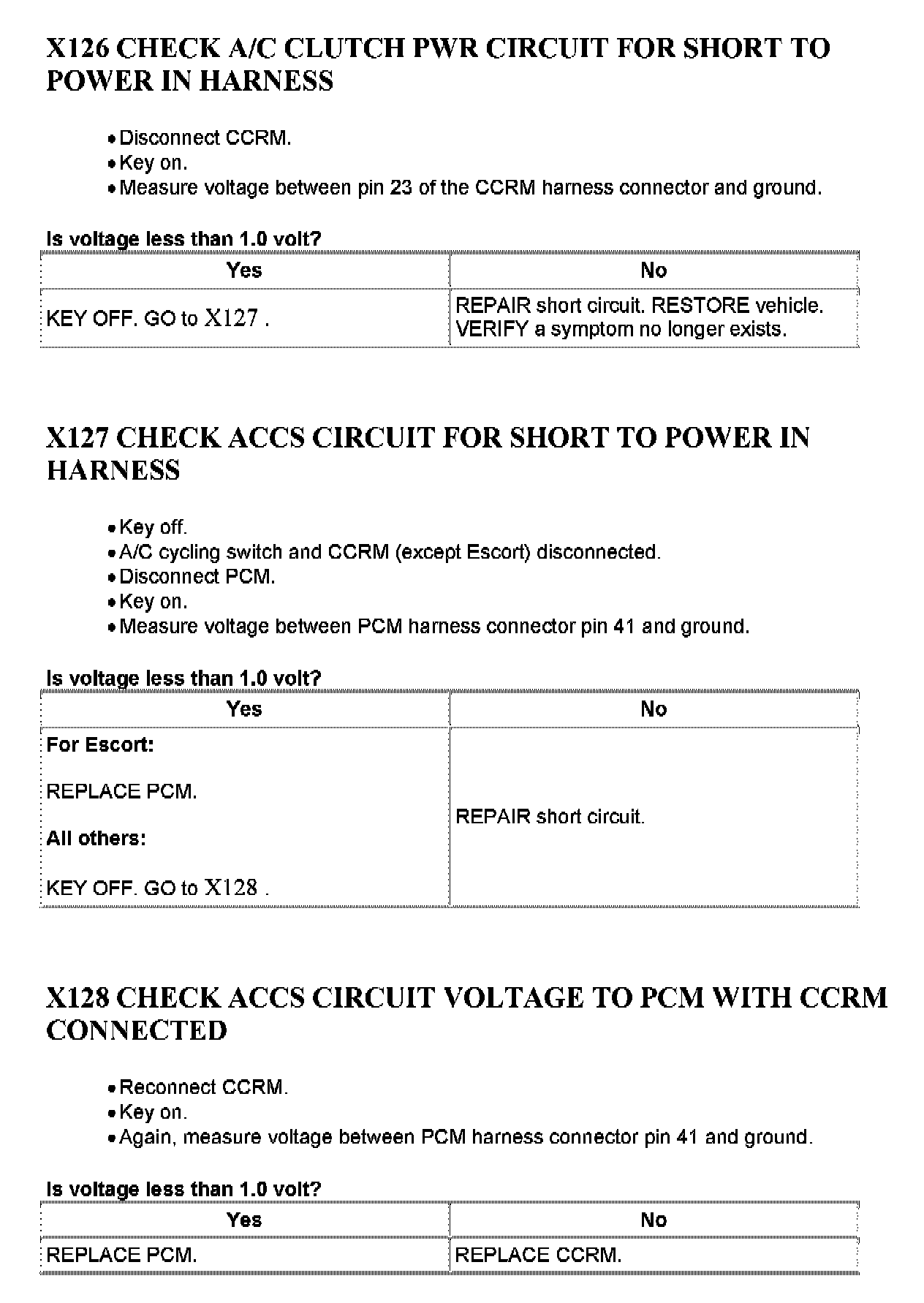

X126 - X128:

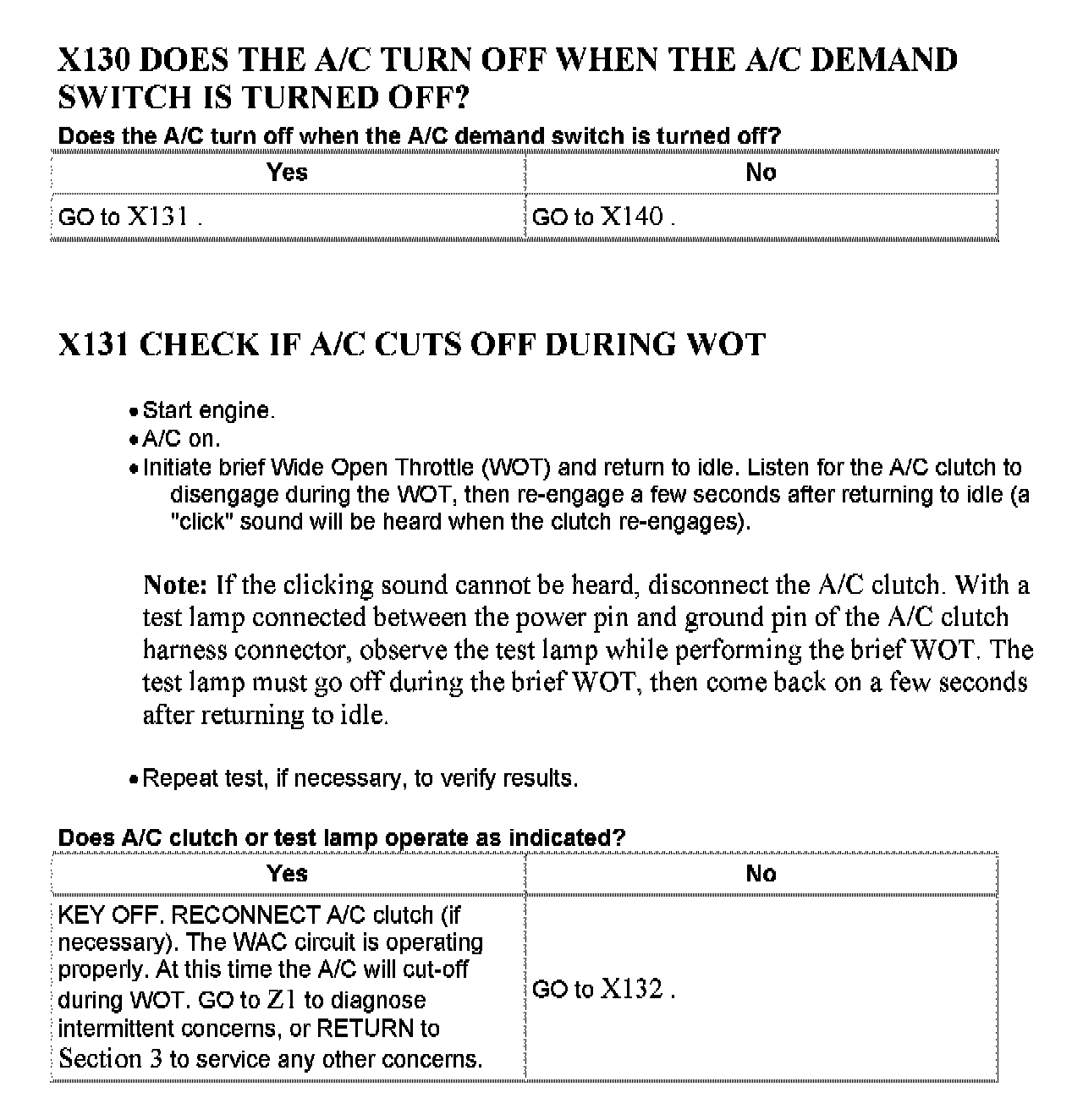

X130 - X131:

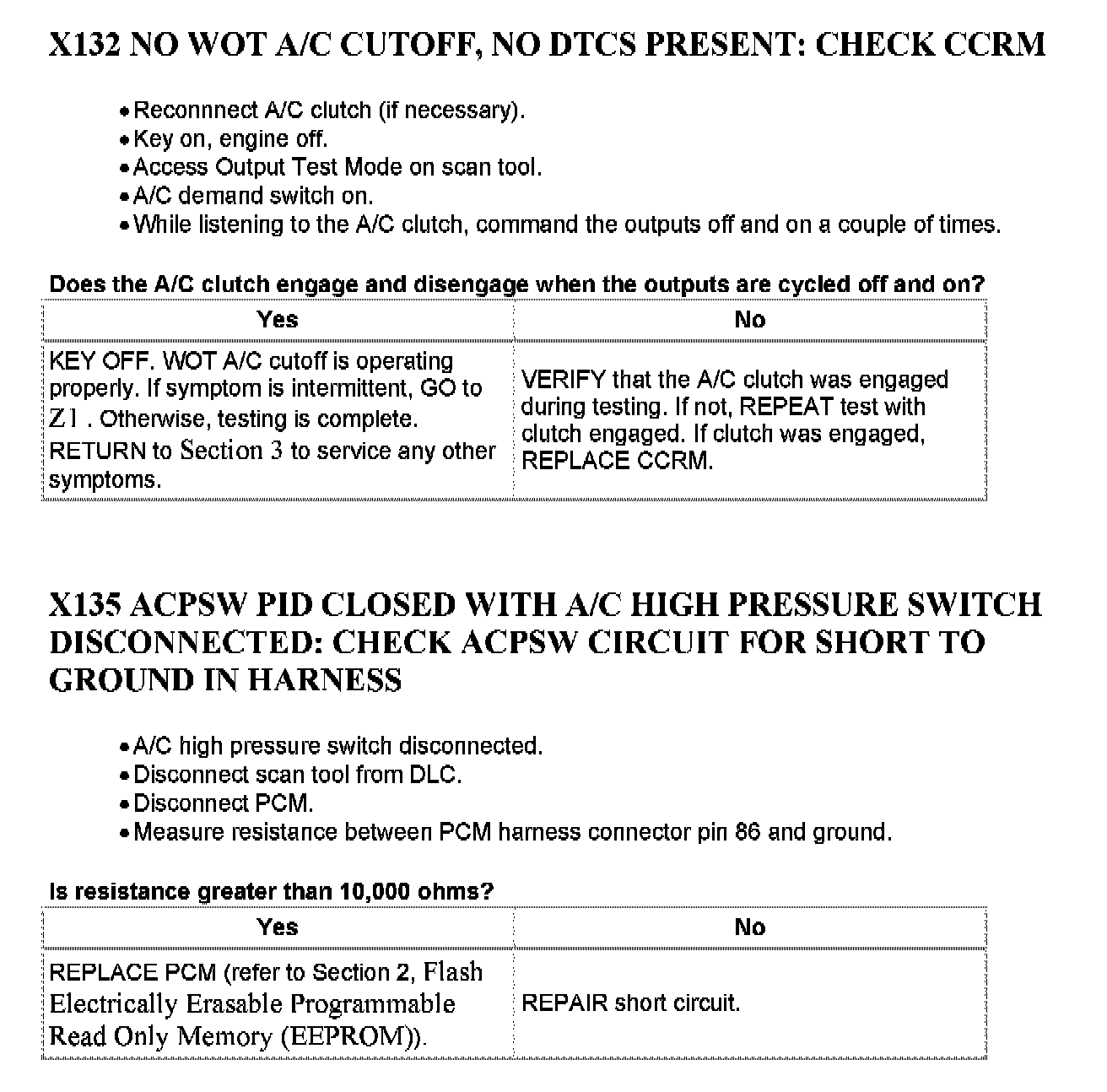

X132 - X135:

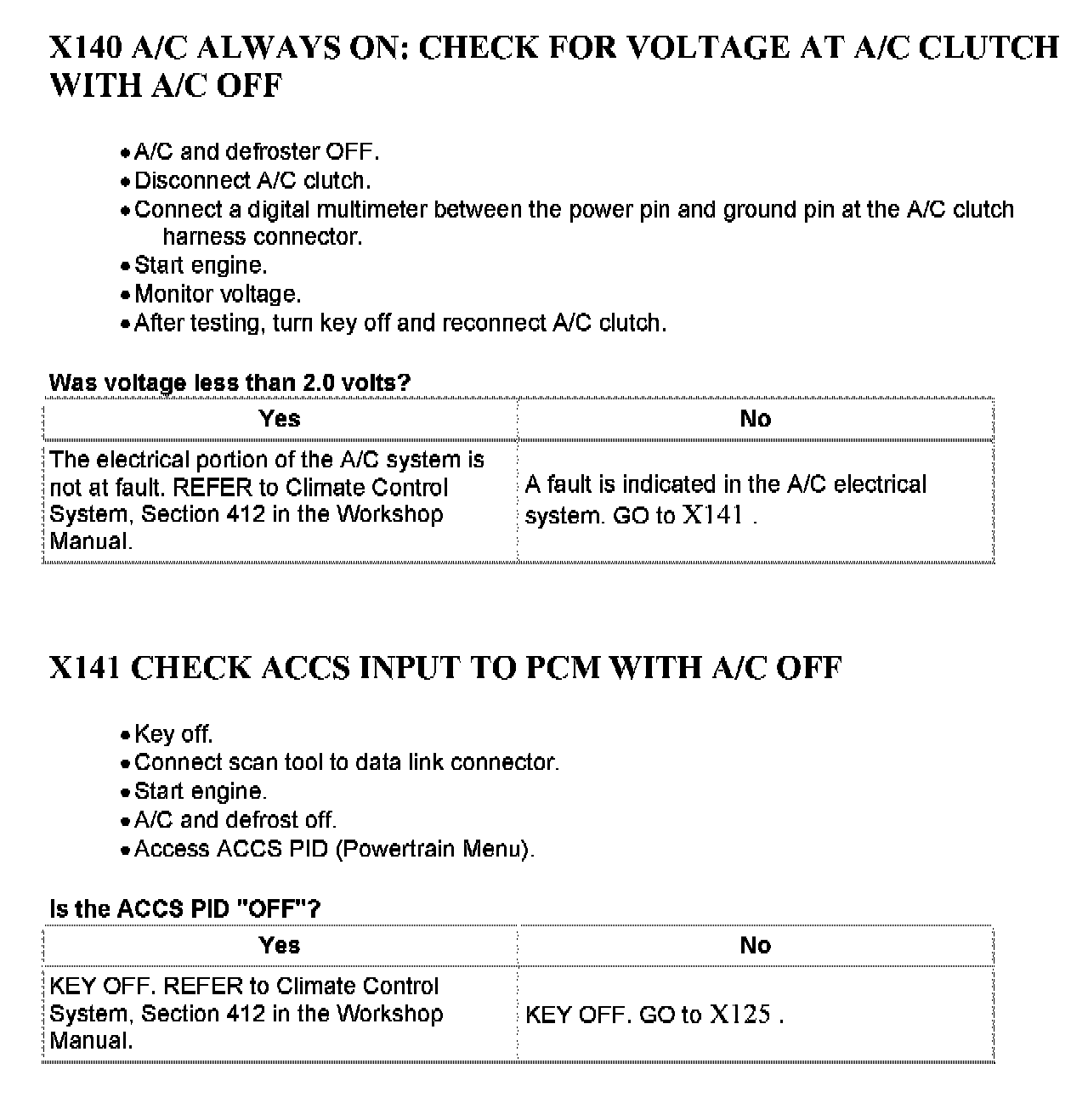

X140 - X141:
X145:

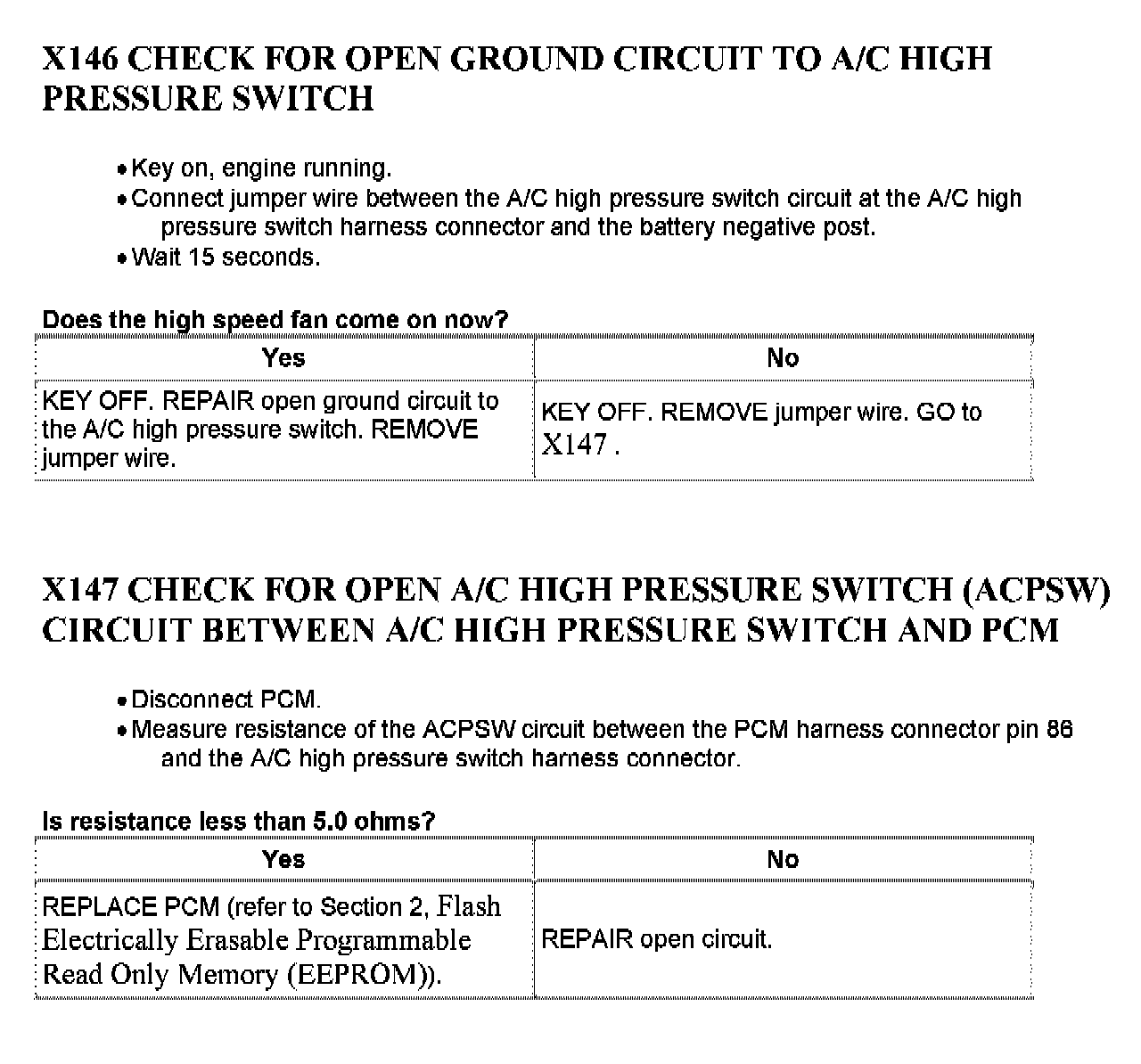

X146 - X147:
