2003 Ford Excursion 2WD V8-6.0L DSL TurboFACTORY OEM SERVICE PROCEDURE
Barometric Pressure Sensor: Service and Repair
REMOVAL

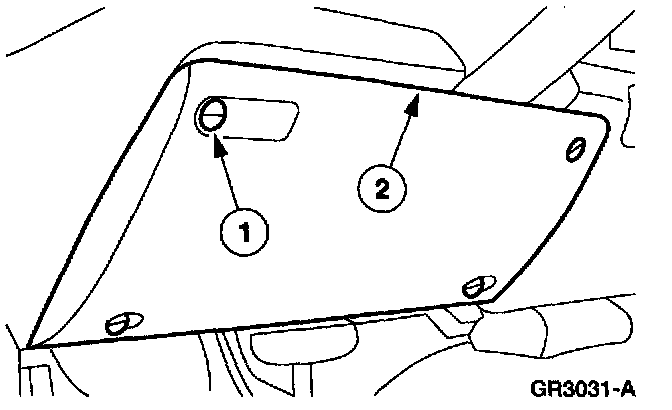

1. Remove the instrument panel steering column cover.
1 Unlock the retainers.
2 Remove the instrument panel steering column cover.
CAUTION: Use care when removing the instrument panel steering column cover or damage to the cover locating tab can occur.

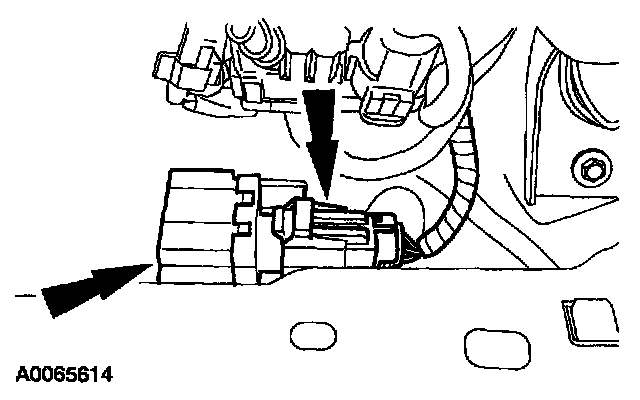

2. Remove the Barometric Pressure (BARO) sensor.
^ Disconnect the BARO sensor electrical connector.
^ Release the clip and remove the BARO sensor.
INSTALLATION
1. To install, reverse the removal procedure.
1. Remove the instrument panel steering column cover.
1 Unlock the retainers.
2 Remove the instrument panel steering column cover.
CAUTION: Use care when removing the instrument panel steering column cover or damage to the cover locating tab can occur.
2. Remove the Barometric Pressure (BARO) sensor.
^ Disconnect the BARO sensor electrical connector.
^ Release the clip and remove the BARO sensor.
INSTALLATION
1. To install, reverse the removal procedure.
