2003 Ford Excursion 2WD V8-6.0L DSL TurboFACTORY OEM SERVICE PROCEDURE

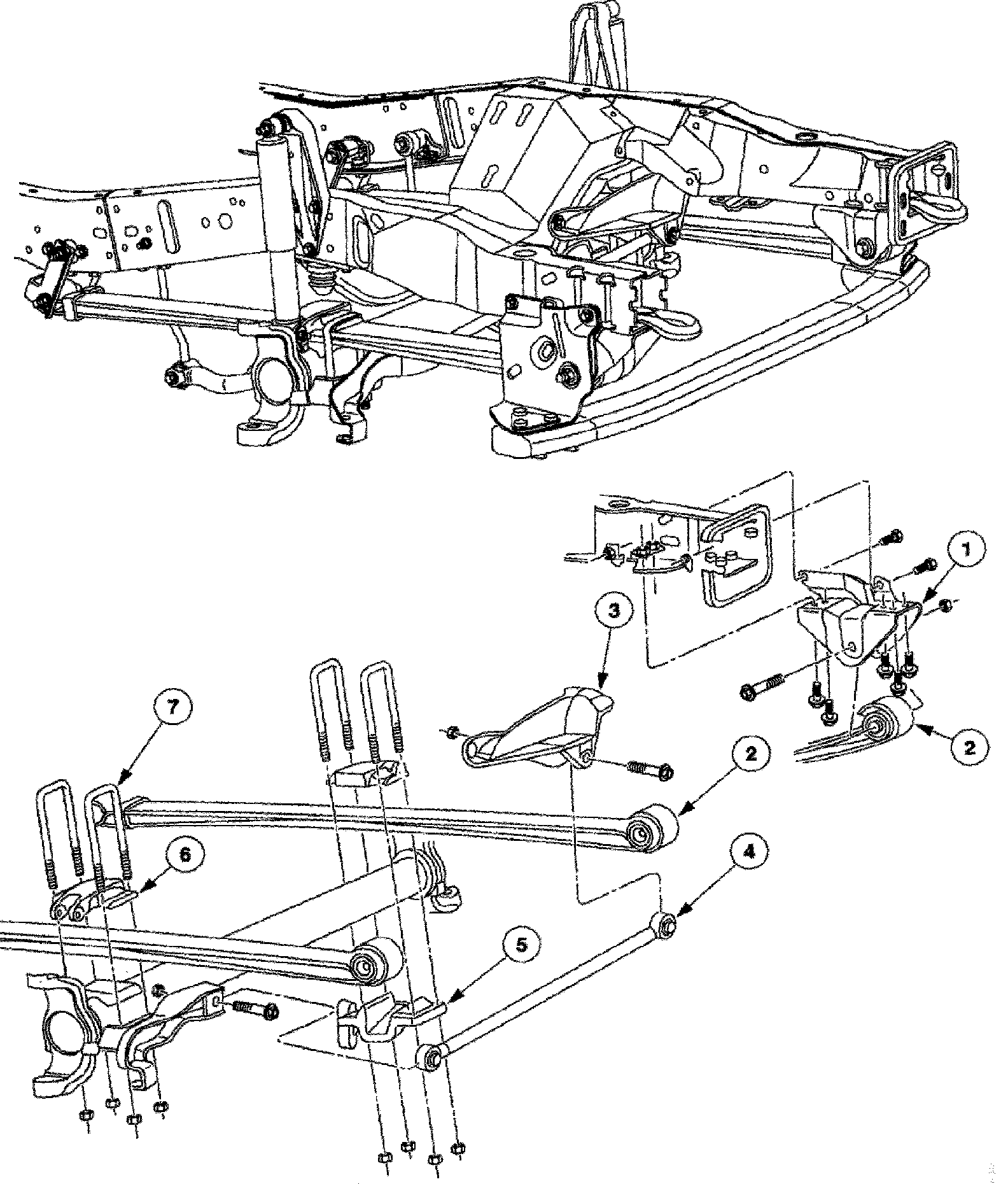

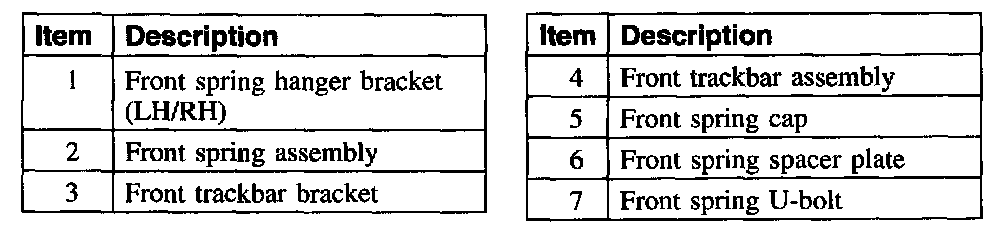

Front
Part 1 Of 4:
Part 2 Of 4:
Part 3 Of 4:
Part 4 Of 4:

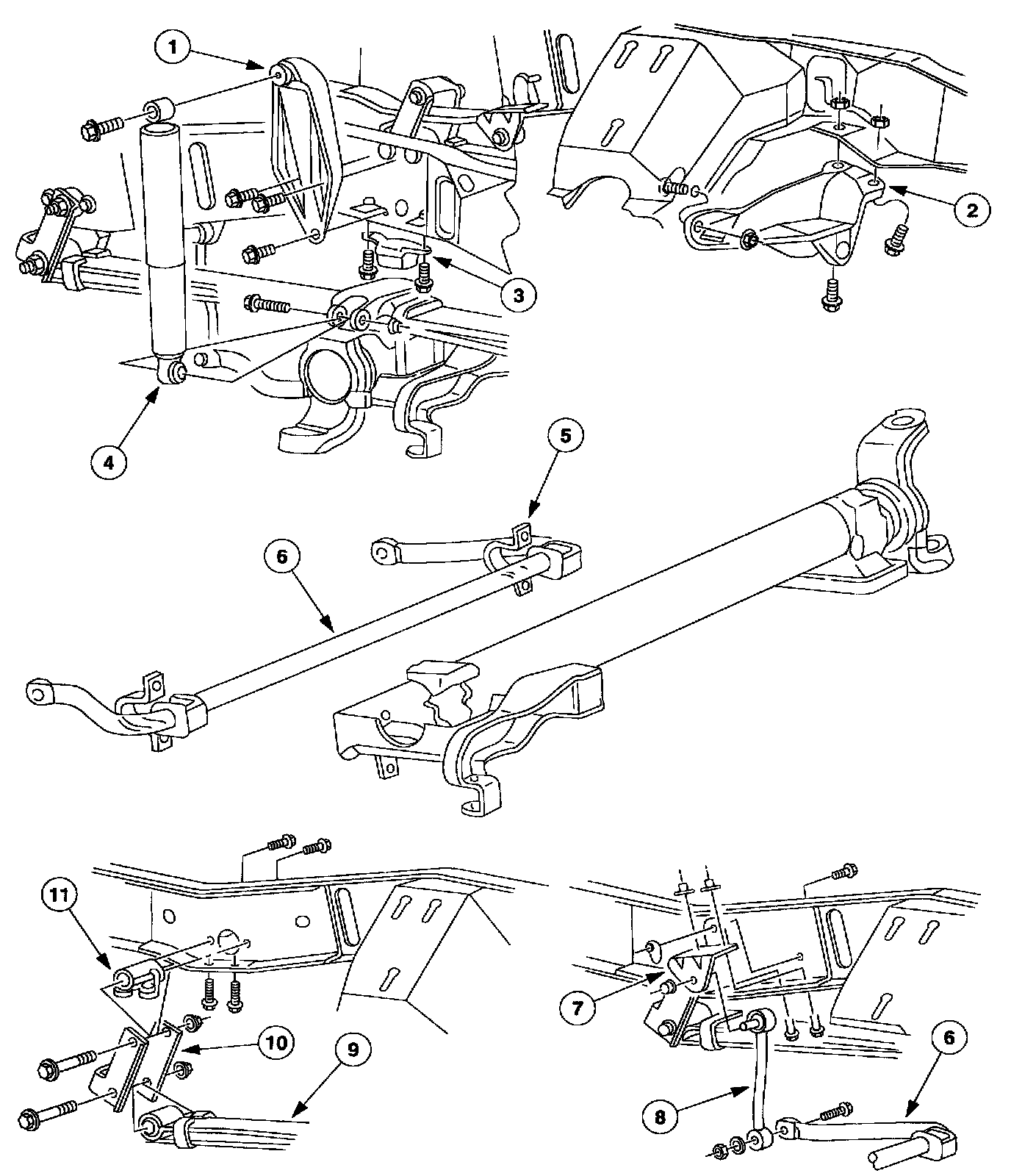

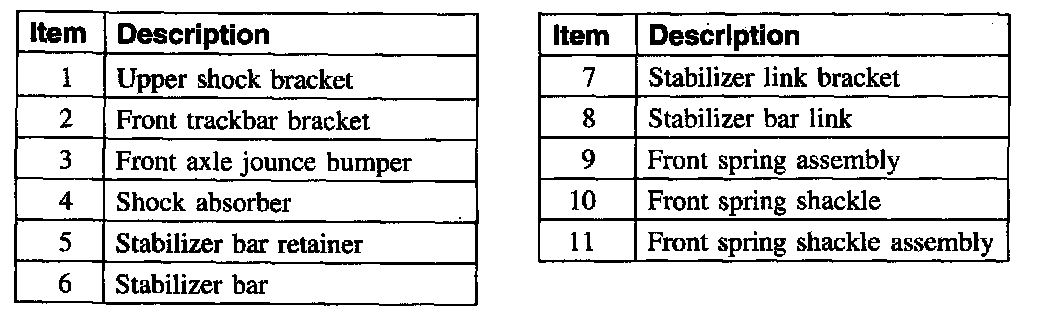

Front Suspension Components-F-250, F-350
Part 1 Of 2:
Part 2 Of 2:

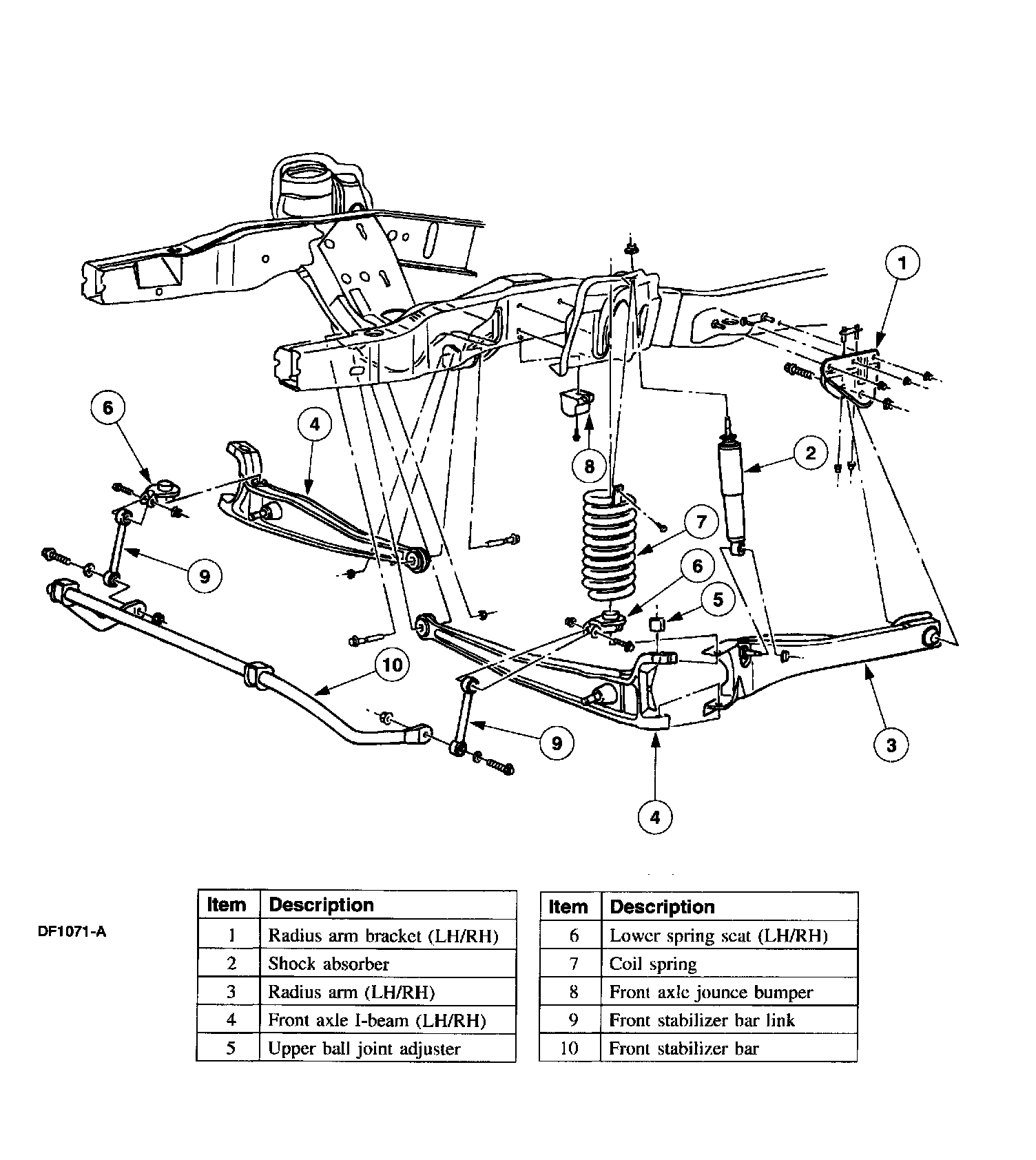

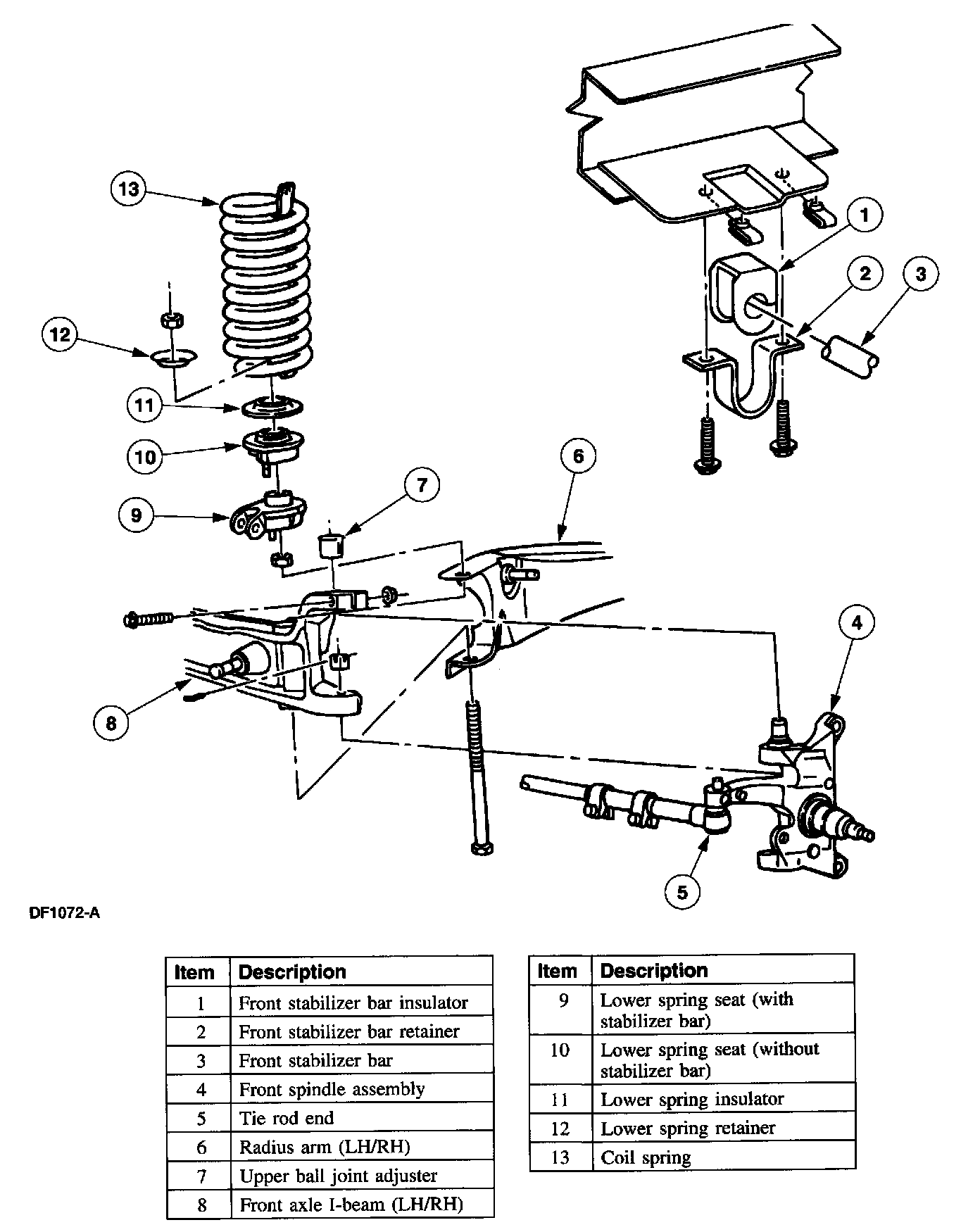

Front Suspension Components-F-450, F-550
Factory Service Tools
Use the Manual With the Right Hardware
Pair factory procedures with proven DIY tools so the instructions are easier to execute.
Disclosure: Verified tool recommendations may earn an affiliate commission at no cost to you.
When to See a Mechanic
Stop DIY work and contact a certified mechanic immediately if any of the following apply:
- • You smell fuel, burning insulation, or see smoke.
- • Brakes feel soft, pull hard to one side, or make grinding noises.
- • The engine overheats, stalls repeatedly, or misfires under load.
- • You are missing required tools, torque specs, or safe lifting equipment.
- • You are not confident in the next step or safety outcome.
