2002 Ford ZX2 StandardFACTORY OEM SERVICE PROCEDURE
System Flushing
WARNING:
Do not mix oil types. Any mixture or any unapproved oil can lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.

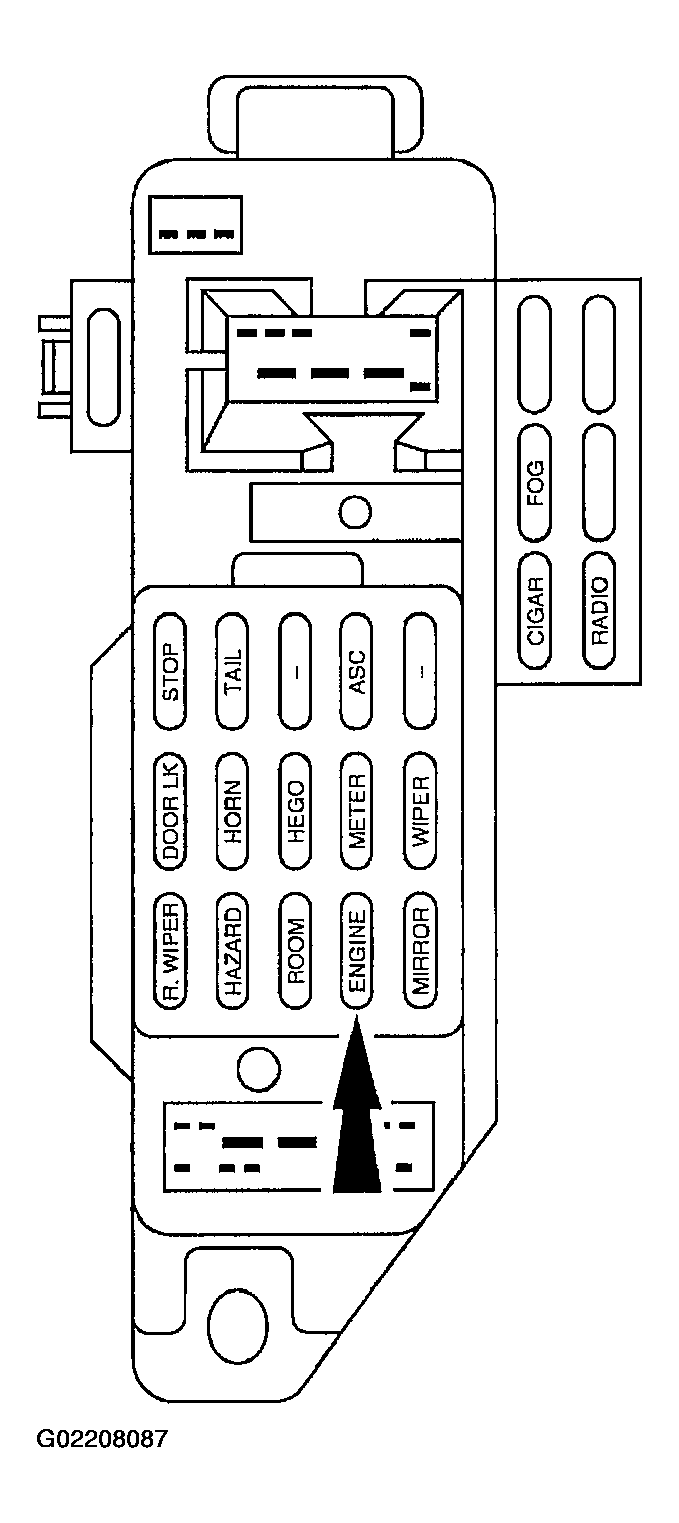

- Remove the ENGINE fuse to disable the vehicle.

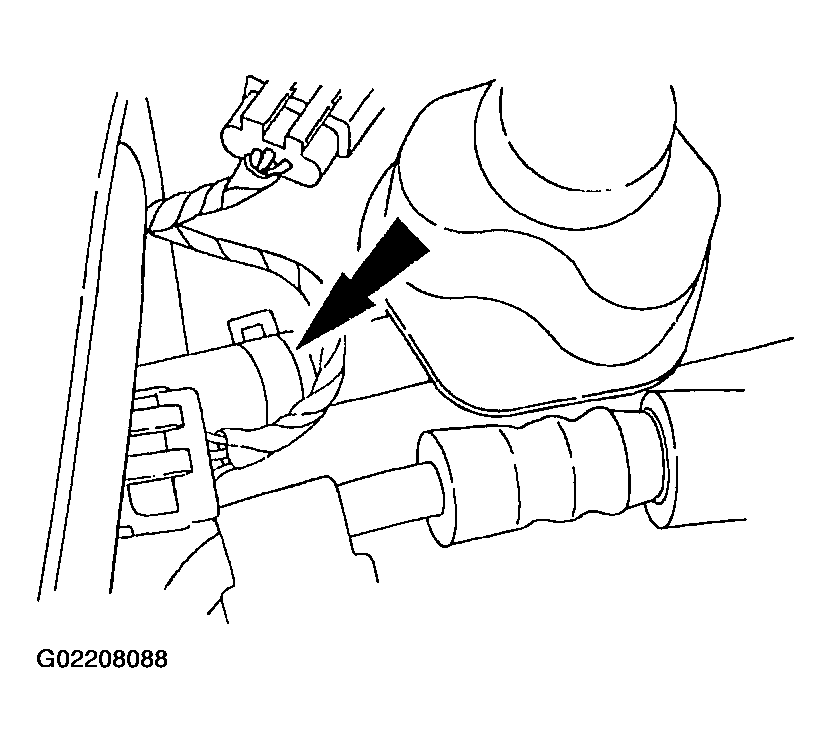

- Disconnect the power steering return hose. Plug the reservoir.
- Attach an extension hose between the power steering return hose and an empty container.
- Raise the front wheels off the floor.

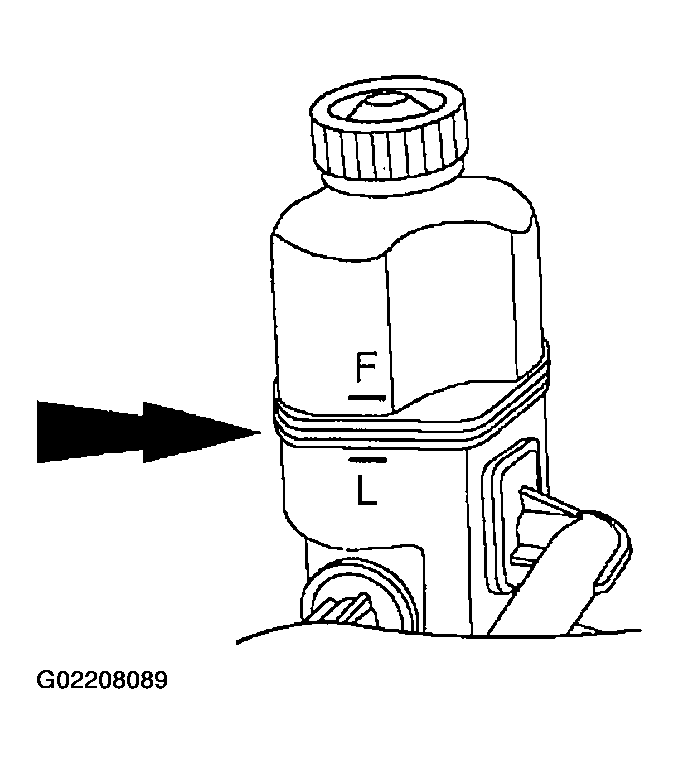

- Fill the reservoir.
- Use Motorcraft MERCON® Multi-Purpose ATFXT-2-QDX or equivalent MERCON® fluid.
CAUTION:
Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.
