2002 Ford ZX2 StandardFACTORY OEM SERVICE PROCEDURE
General Procedures: Fill

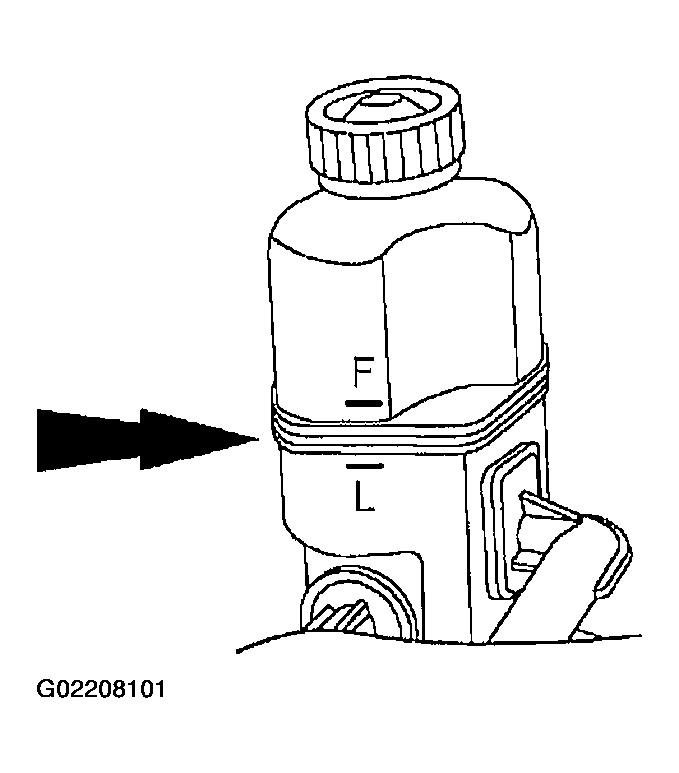

- Fill the reservoir.
- Use Motorcraft MERCON® Multi-Purpose ATFXT-2-QDX or MERCON® equivalent.

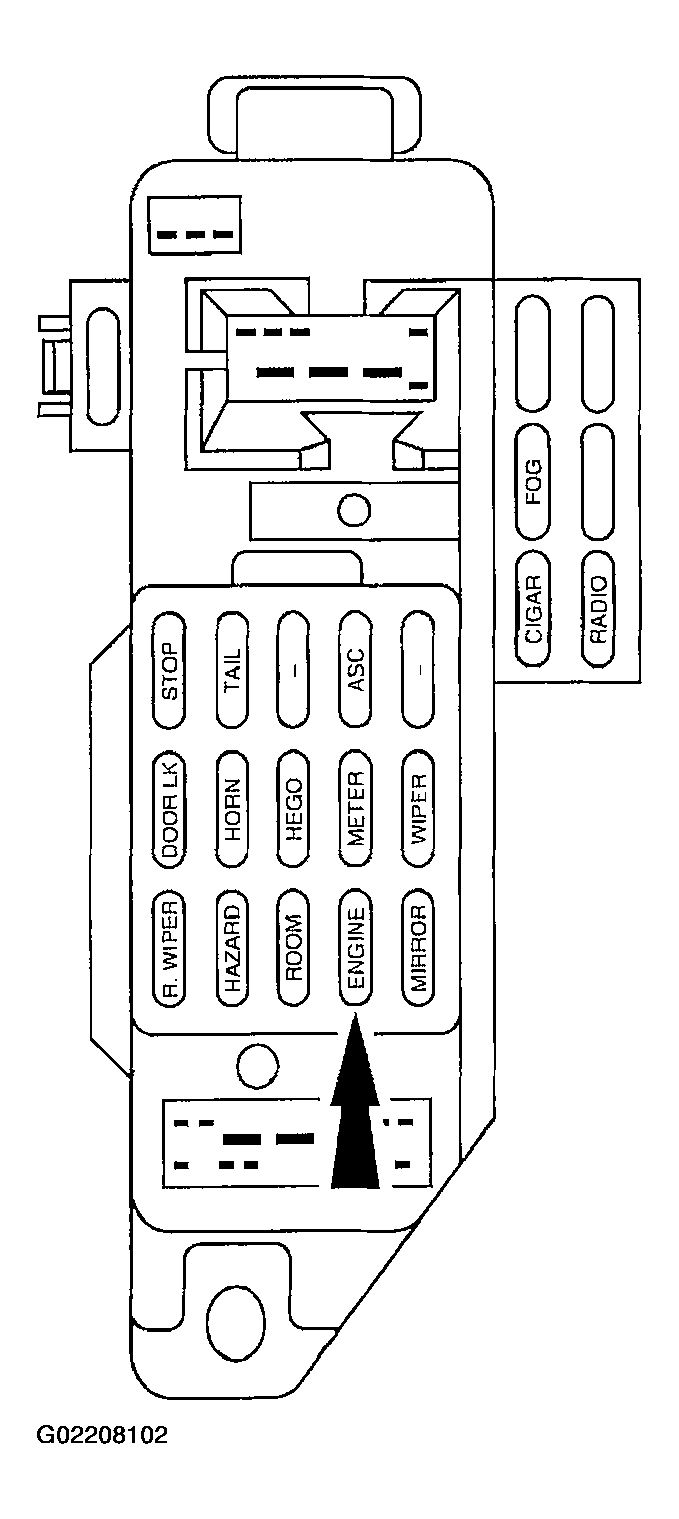

- Remove the ENGINE fuse to disable the vehicle.
- Raise the front wheels off the floor.
WARNING:
Do not mix oil types, any mixture or any unapproved oil could lead to seal deterioration and leaks. A leak could ultimately cause loss of fluid, which could result in a loss of power steering assist.
CAUTION:
Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.
