2002 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Checking Fluid Level
- Drive vehicle for about 20 miles or until it reaches operating temperature 150-170°F (66-77°C). With vehicle on level ground, apply parking brake, and run engine at idle. Shift gear gearshift lever through all ranges, ending in Park.

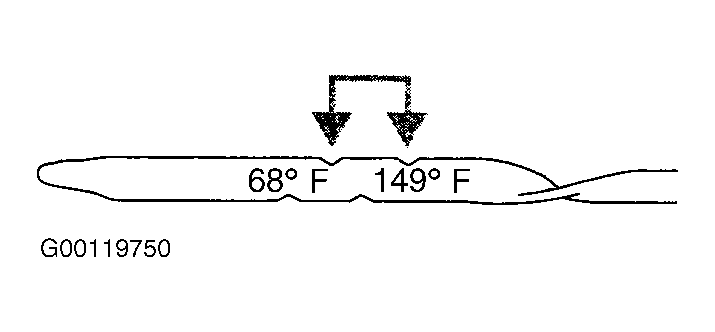

- Fluid level should be in designated areas for operating temperature. See Fig 1 .
- Add fluid as necessary. See RECOMMENDED FLUIDS . DO NOT overfill. Check condition of fluid for contamination and burned smell. Ensure dipstick is fully installed.
