2002 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Front Electronic Module (FEM) C201c

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

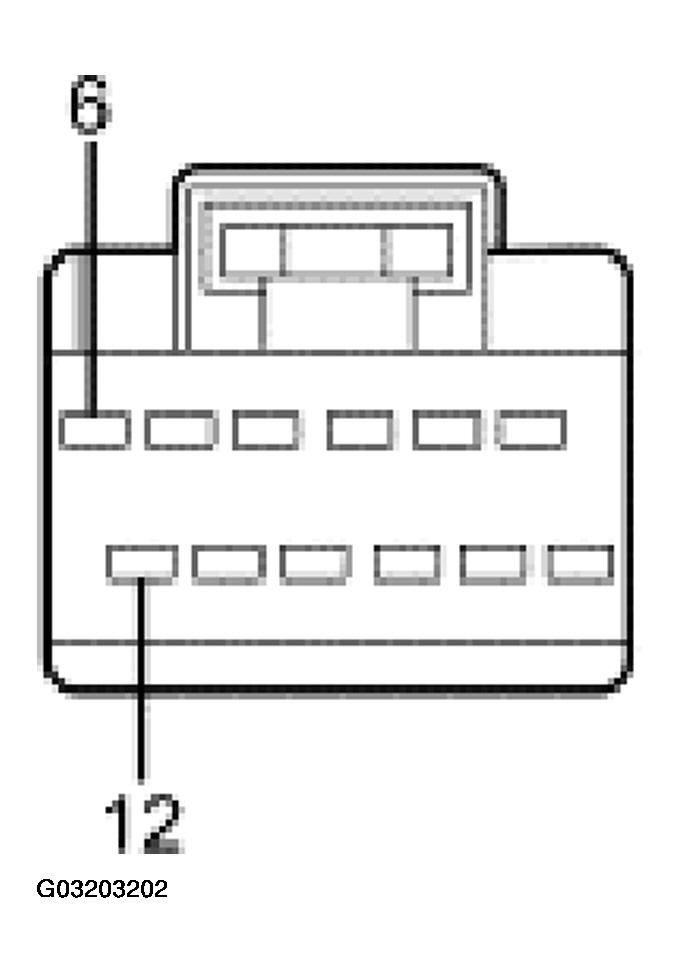

Fig 1: Identifying Front Electronic Module (FEM) C201c Connector Pins
G03203202Courtesy of FORD MOTOR CO.
FRONT ELECTRONIC MODULE (FEM) C201C CONNECTOR PINS DESCRIPTION

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
6 29-DK20 (OG/GN) FEM power supply. 10 volts or greater at the FEM connector.
12 31-DK20(BK) FEM ground. Less than 5 ohms between the FEM connector and ground.
