2002 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Control Assembly: Removal
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery.

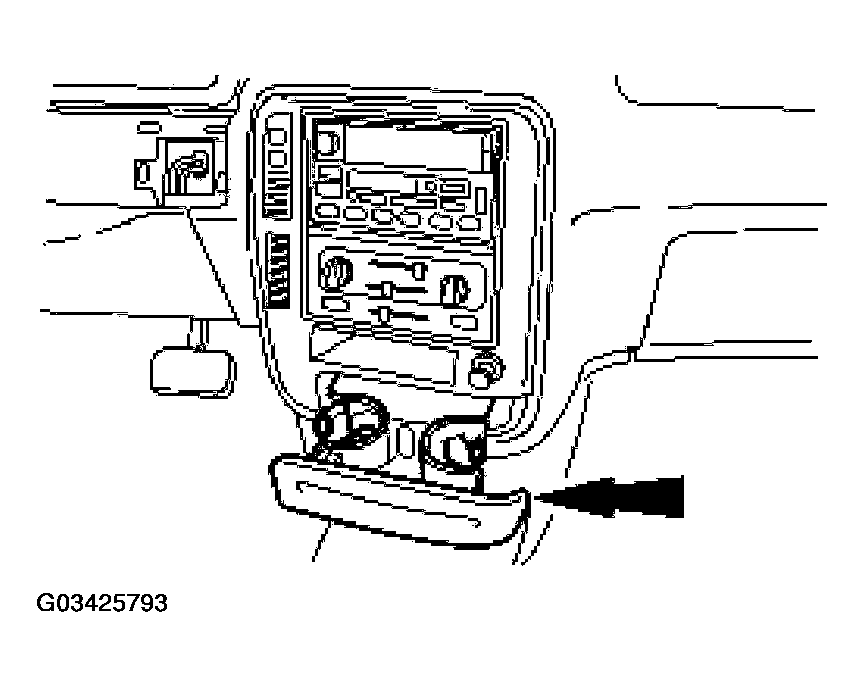

- Remove the ash receptacle.
- Remove the audio unit.

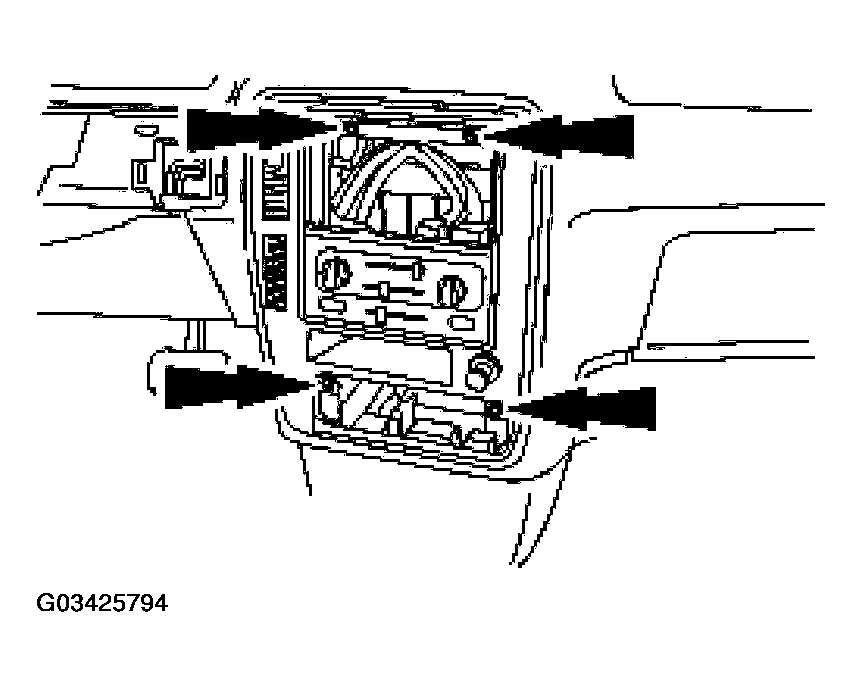

- Remove the screws.

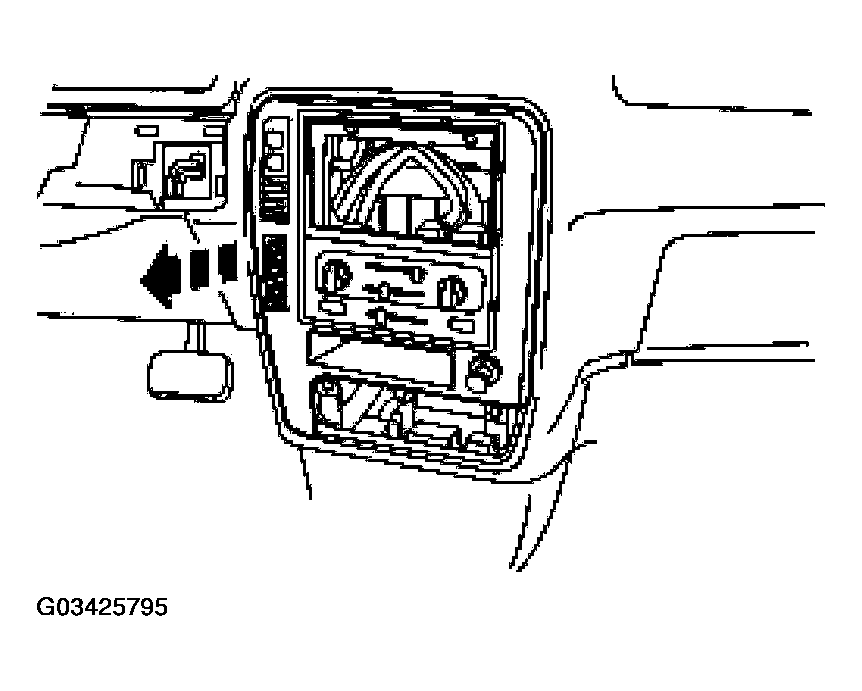

- Unsnap the panel.

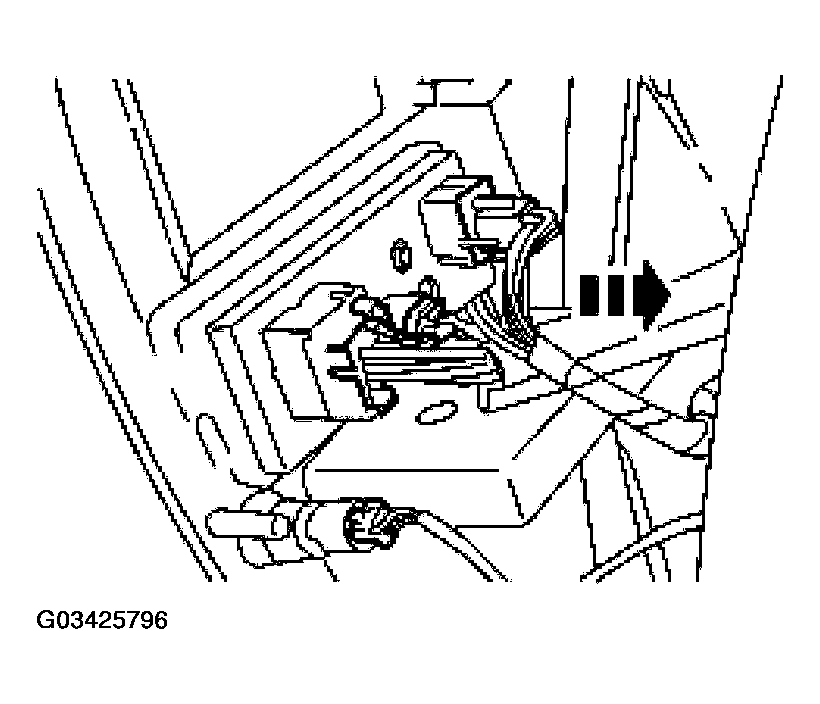

- Disconnect the connectors.
- Remove the control assembly.
CAUTION:
The slider knobs are illuminated using a LEDs. Use care not to damage them when removing the slider knobs.

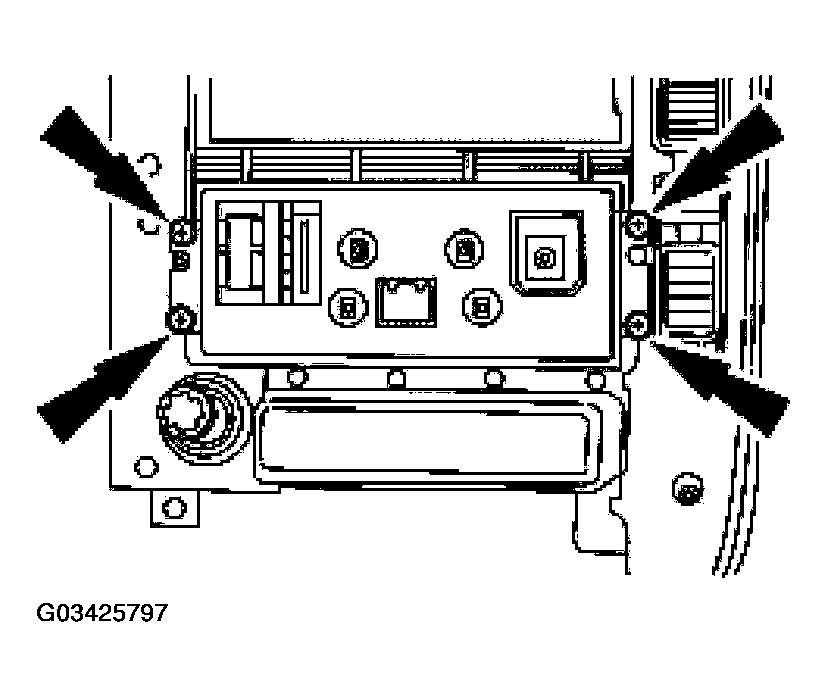

- Remove the screws.
