2002 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Support Insulators - RH: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	3-Bar Engine Support Kit 303-F072
Courtesy of FORD MOTOR CO.	Lifting Brackets, Engine 134-00243 or equivalent

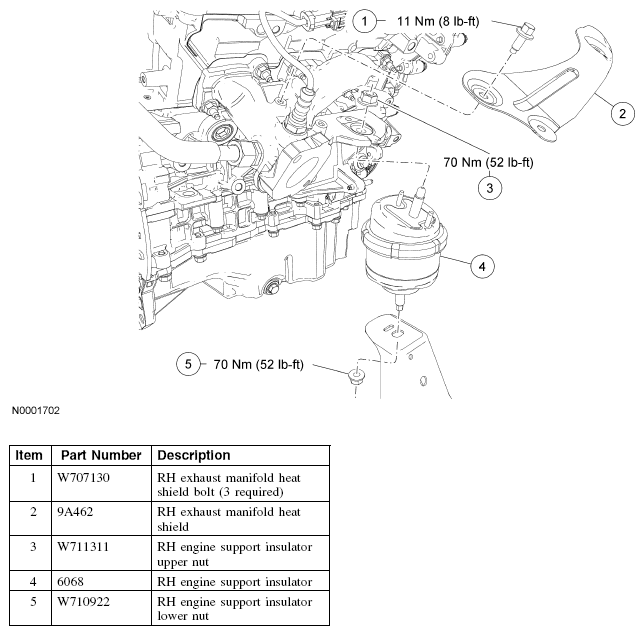

Fig 1: Engine Support Insulator Replacement Components - RH With Torque Specifications

Courtesy of FORD MOTOR CO.
