WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Since the engine is not free-wheeling, timing procedures must be followed exactly or piston and valve damage can occur.

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
Remove the crankshaft sensor ring from the crankshaft.

Fig 1: View Of Crankshaft Sensor Ring At Crankshaft
Courtesy of FORD MOTOR CO.

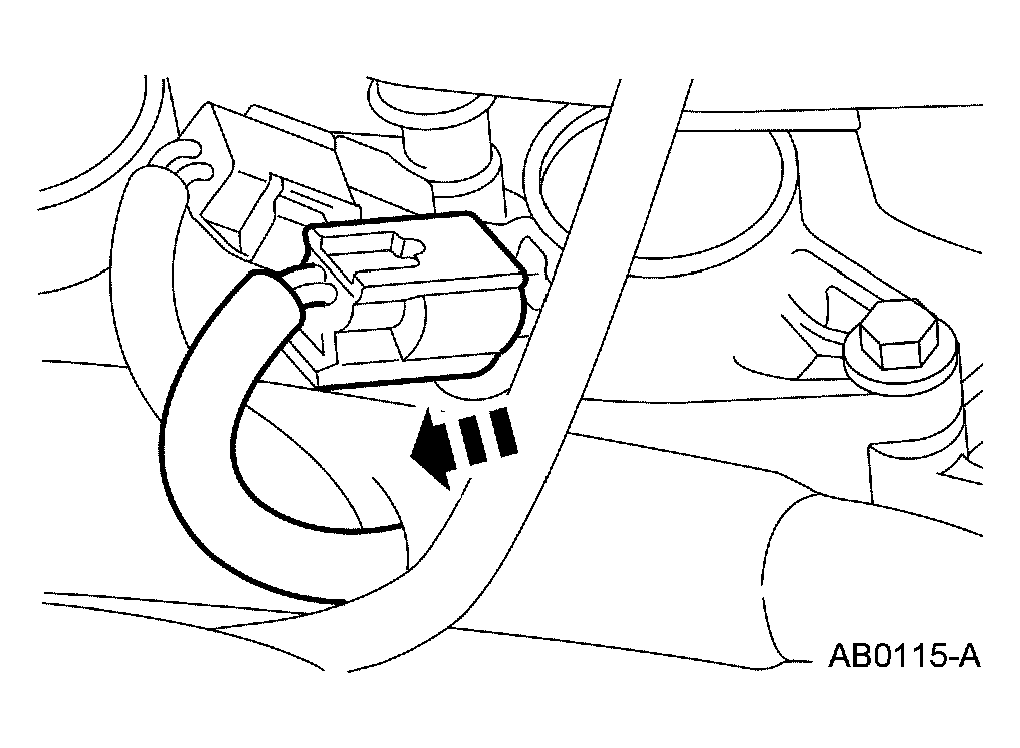

Disconnect the 8 ignition coil electrical connectors.

Fig 2: Disconnecting Eight Ignition Coil Electrical Connectors
Courtesy of FORD MOTOR CO.

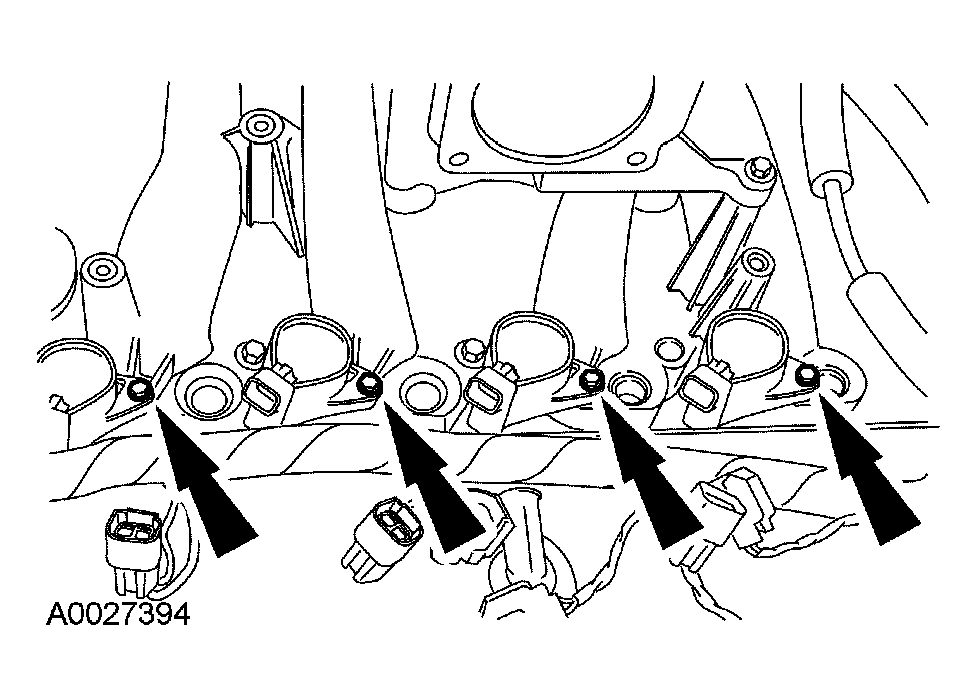

Remove the bolts and the 8 ignition coils.

Fig 3: Removing Ignition Coils Bolts
Courtesy of FORD MOTOR CO.

NOTE: Use compressed air to remove any foreign material from the spark plug wells before removing the spark plugs.
