2002 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Diagnosis And Testing: Engine: Notes
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATIONS

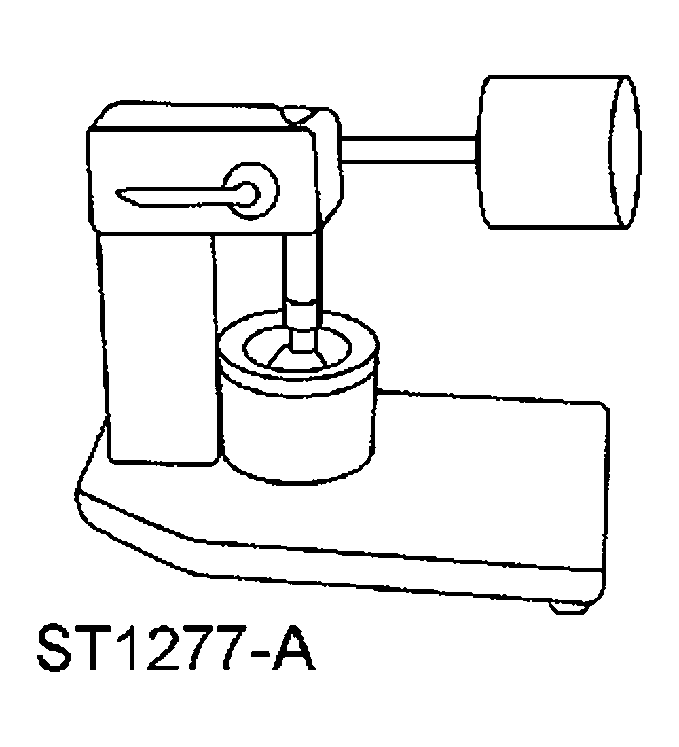

| Commercially Available Leakdown Tester - |
|

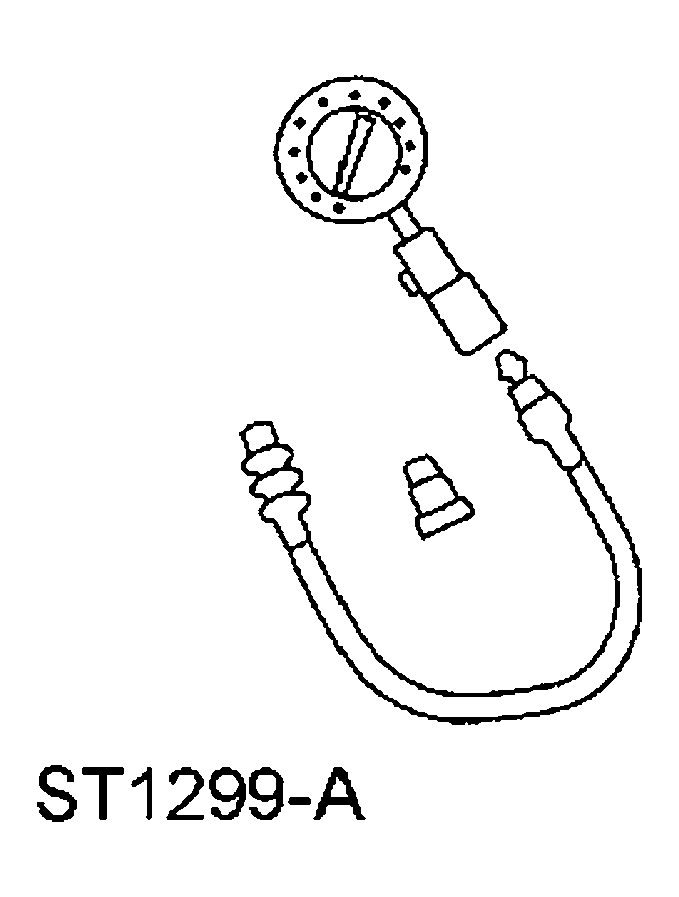

| Quick Disconnect Compression Tester 134-R0212 or equivalent |
|

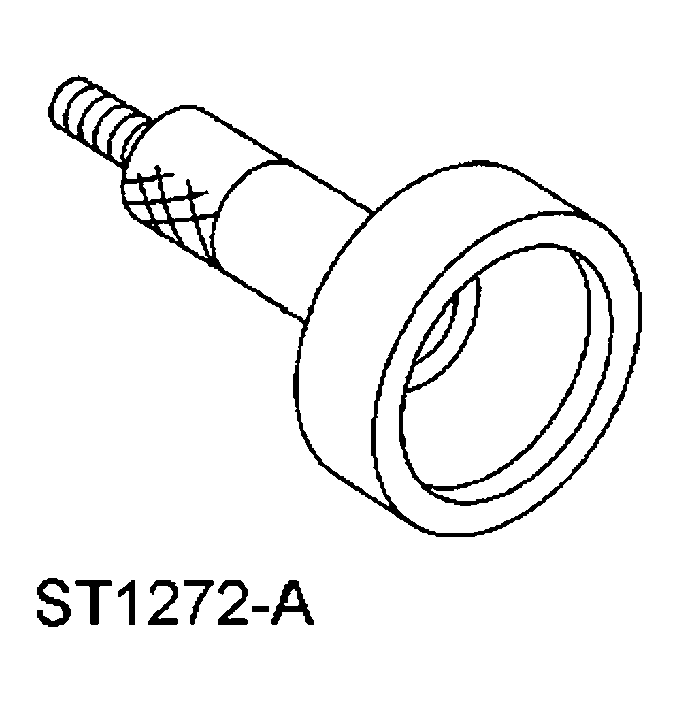

| Dial Indicator Gauge Adapter 303-007 (TOOL-6565-AB) or equivalent | |

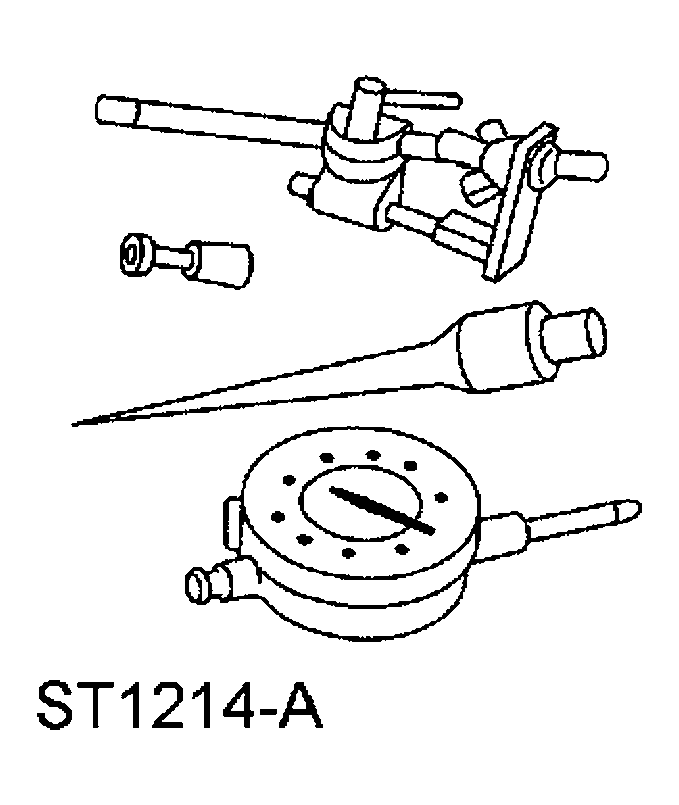

| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |
|

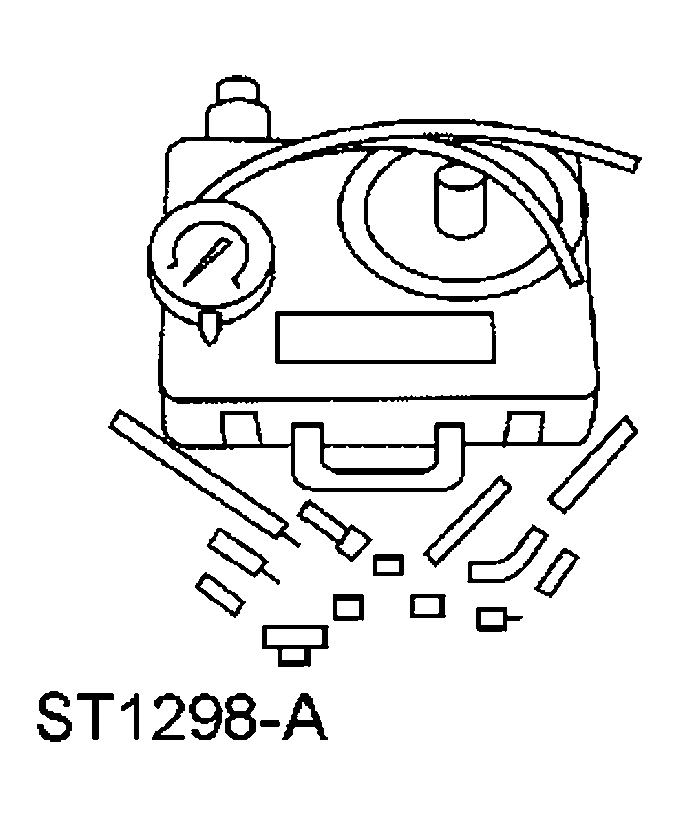

| Engine Cylinder Leak Detection/Air Pressurization Kit 014-00708 or equivalent | |

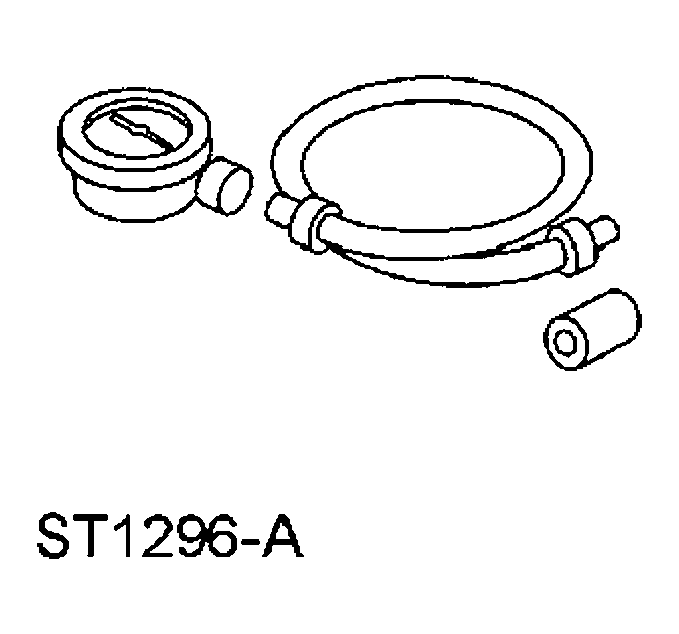

| Oil Pressure Gauge 303-088 (T73L-6600-A) | |

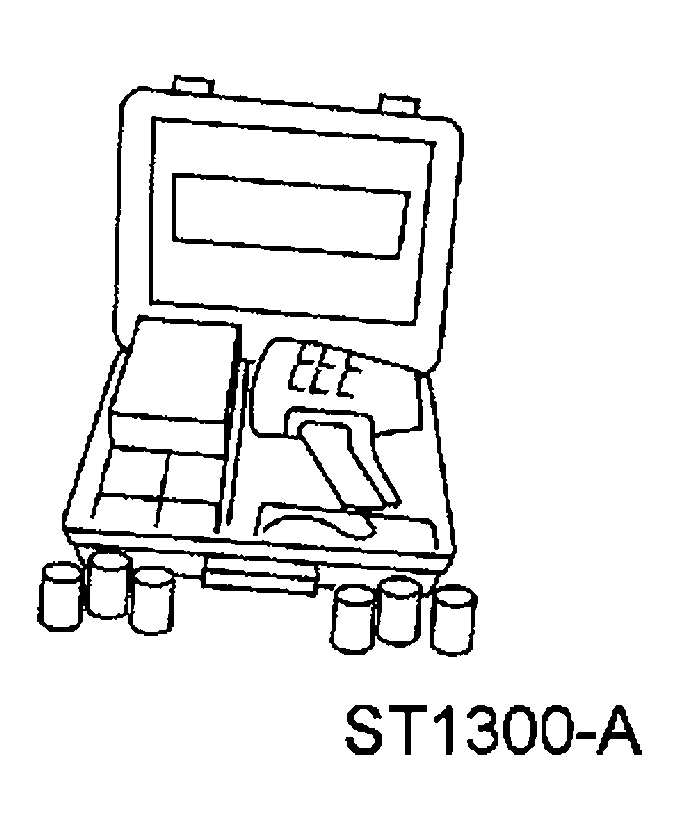

| UV Leak Detector Kit 164-R0756 or equivalent | |

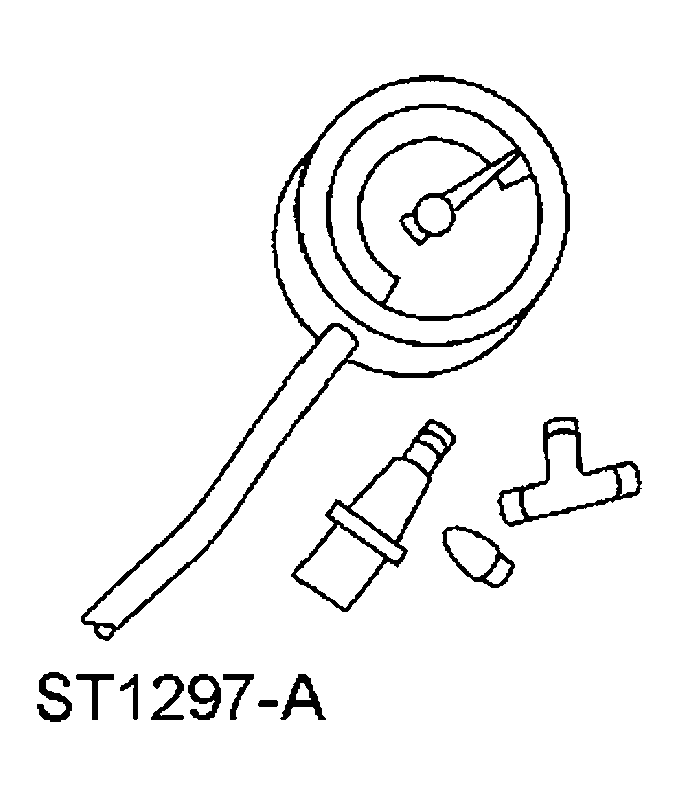

| Vacuum/Pressure Tester 164-R0253 or equivalent |
ITEM SPECIFICATIONS
| Item | Specification |
|---|---|
| Gasoline Engine Oil Dye 164-R3705 | - |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent | WSS-M2C930-A |
