2002 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Automatic Transmission: Specifications

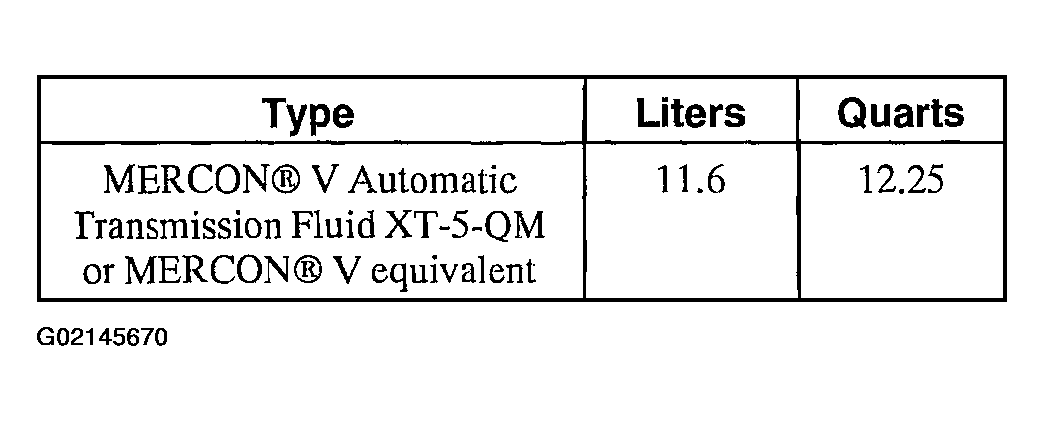

Fig 1: Capacity Specifications

Courtesy of FORD MOTOR CO.

General Specifications

Item	Specification
Multi-Purpose Grease D0AZ-19584-AA	ESB-M1C93-B
MERCON V® Automatic Transmission Fluid XT-5-QM	MERCON V®

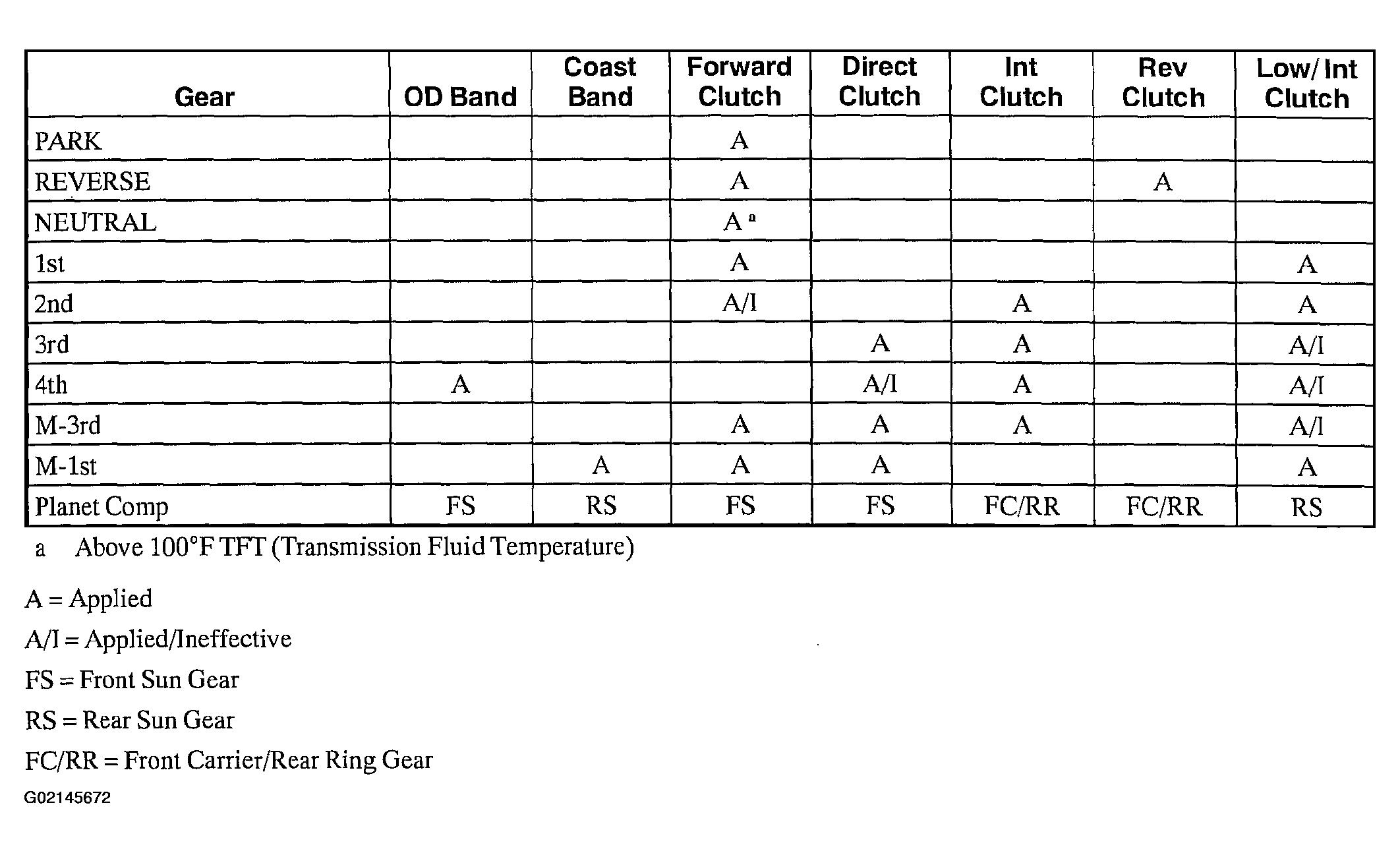

Fig 2: Band And Clutch Application Chart 1

Courtesy of FORD MOTOR CO.
