2002 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Sun and Shell Assembly-Disassembly: Disassembly

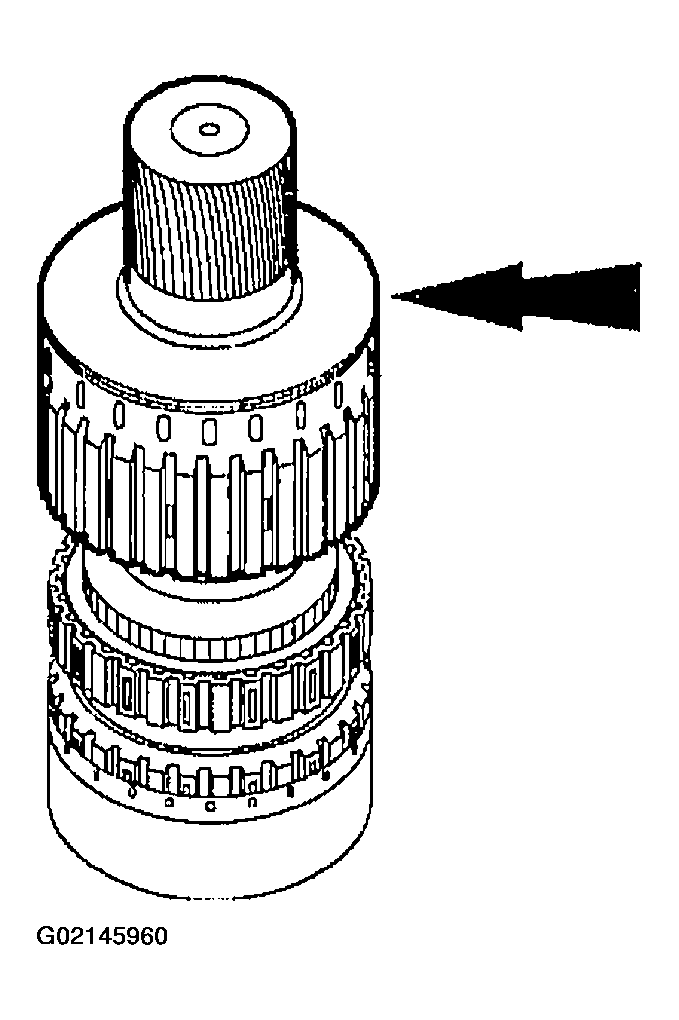

  1. Remove the front sun shell.
    Fig 1: Removing Front Sun Shell
    G02145960Courtesy of FORD MOTOR CO.

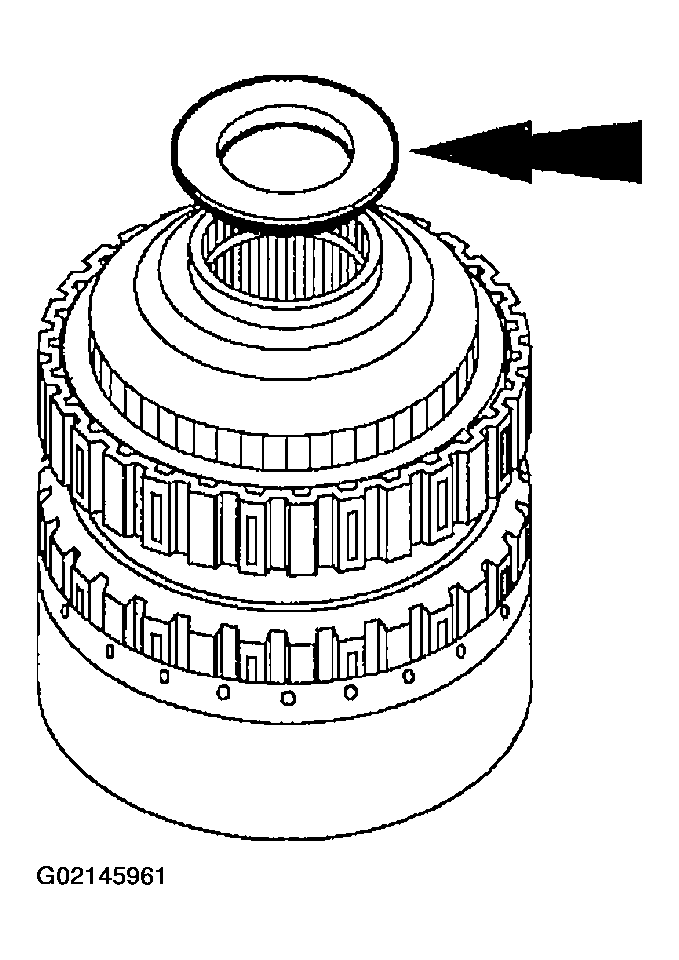

  2. Remove the No. 11 needle bearing.
    Fig 2: Removing No. 11 Needle Bearing
    G02145961Courtesy of FORD MOTOR CO.

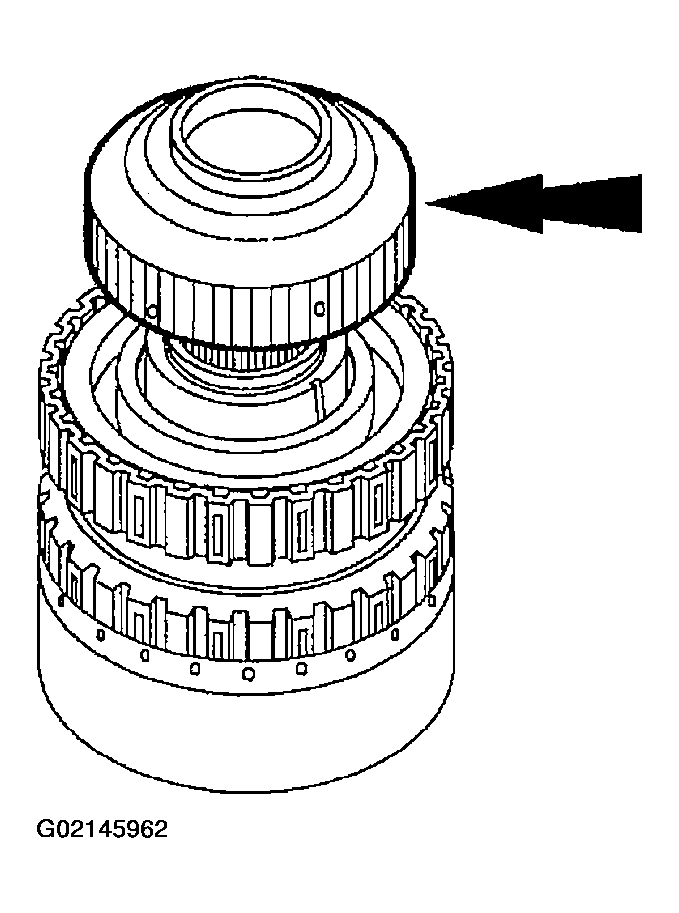

  3. Remove the intermediate clutch hub.
    Fig 3: Removing Intermediate Clutch Hub
    G02145962Courtesy of FORD MOTOR CO.

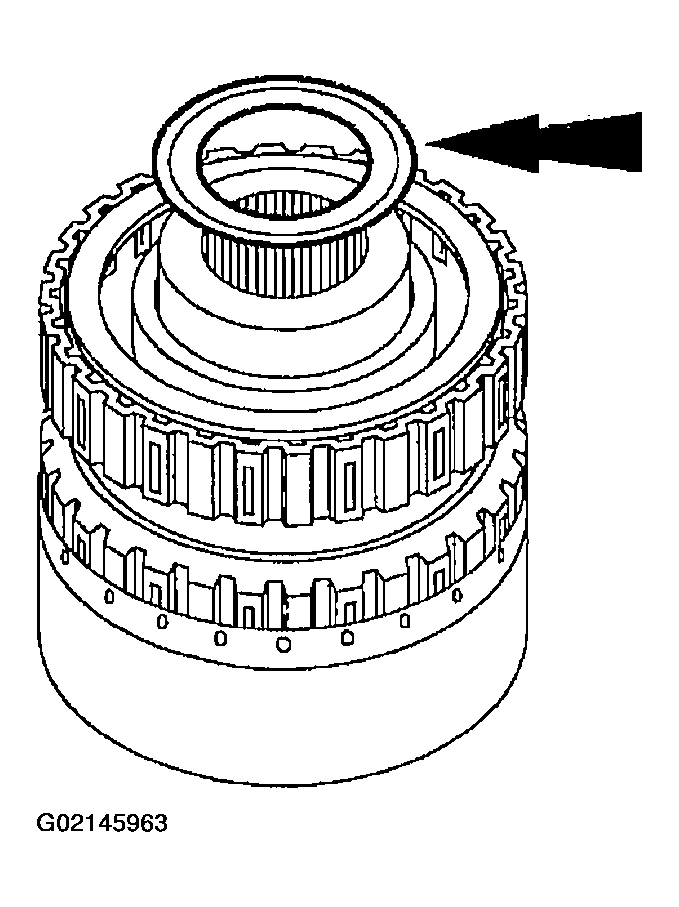

  4. Remove the No. 10 thrust bearing.
    Fig 4: Removing No. 10 Thrust Bearing
    G02145963Courtesy of FORD MOTOR CO.

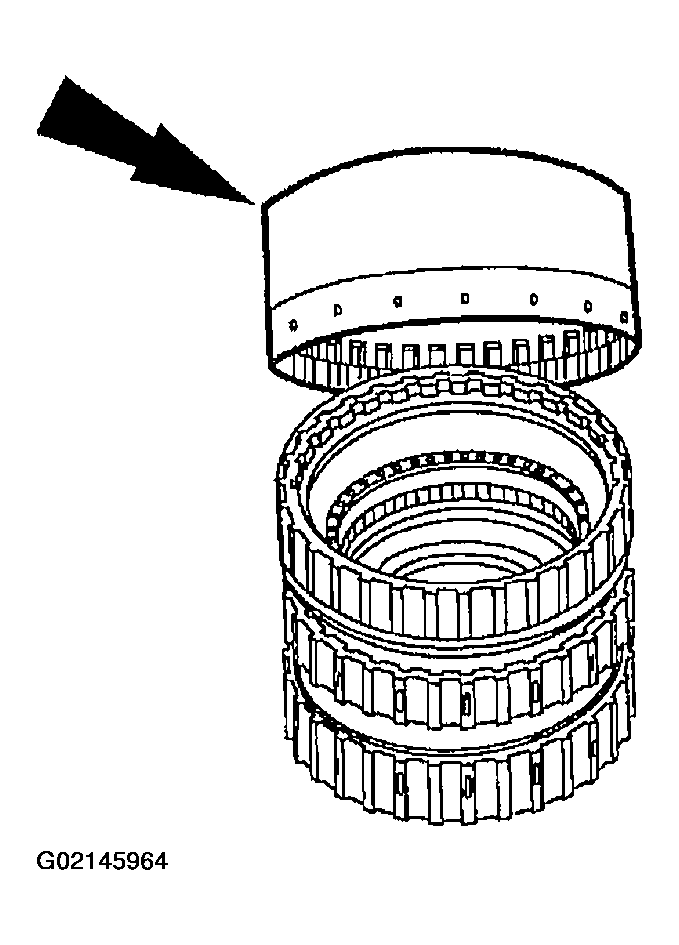

  5. Remove the overdrive drum.
    Fig 5: Removing Overdrive Drum
    G02145964Courtesy of FORD MOTOR CO.

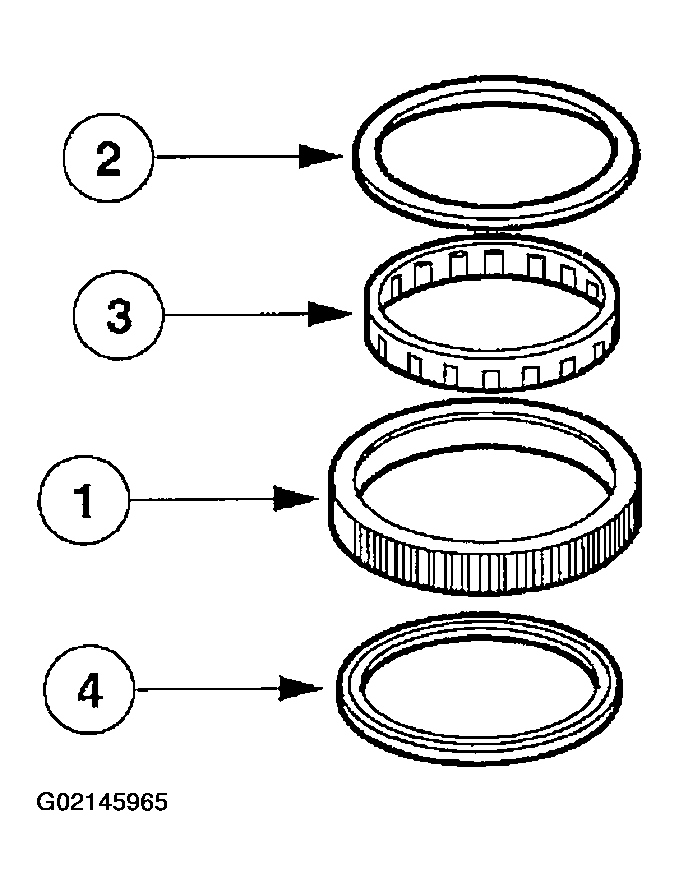

  6. Remove the one-way clutch assembly.
    1. Remove the one-way clutch assembly.
    2. Remove the top cap.
    3. Remove the one-way clutch.
    4. Remove the bottom cap.
    Fig 6: Removing One-Way Clutch Assembly
    G02145965Courtesy of FORD MOTOR CO.
