2002 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Pump Assembly: Disassembly

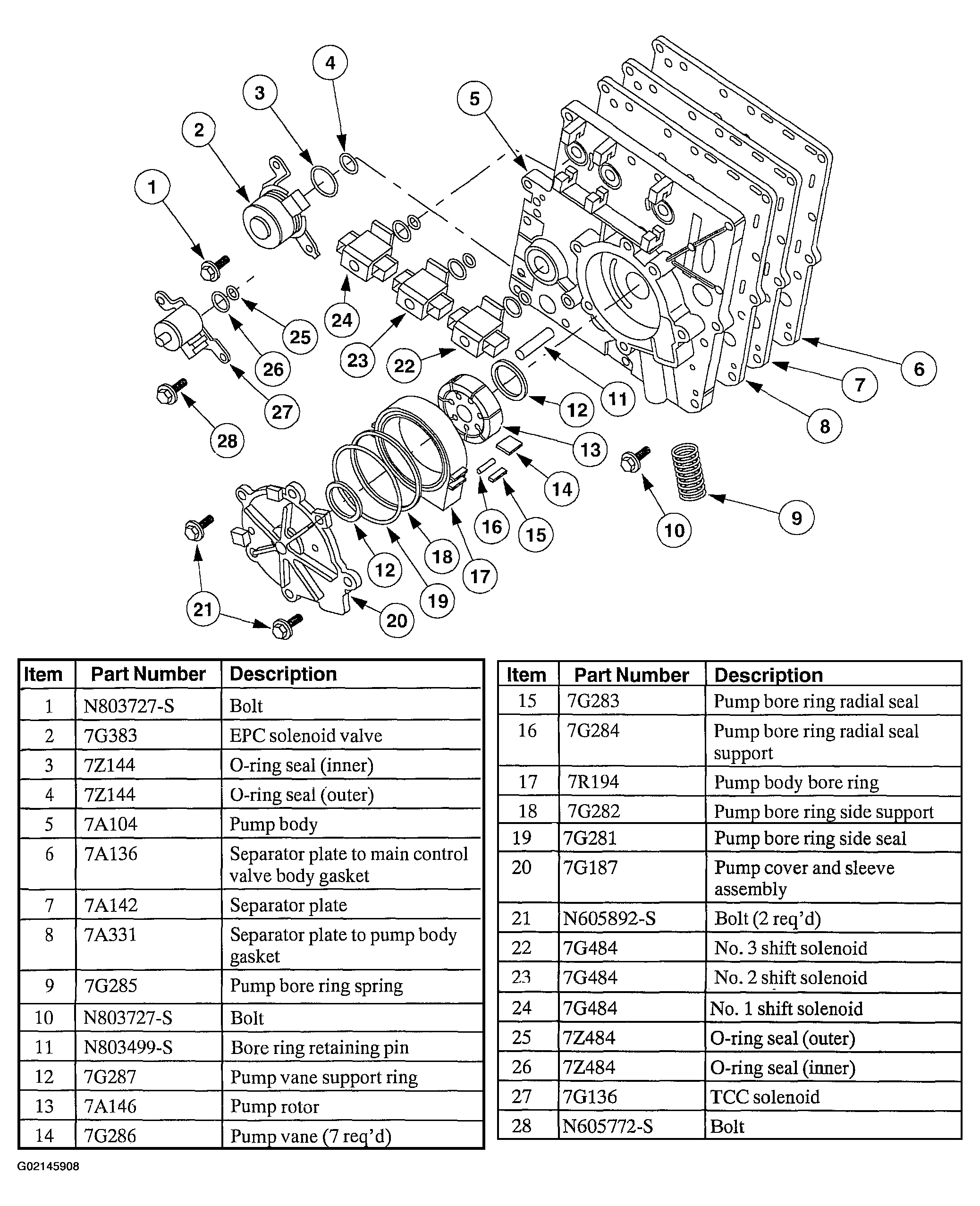

Fig 1: Exploded View Of Pump Assembly Components

Courtesy of FORD MOTOR CO.

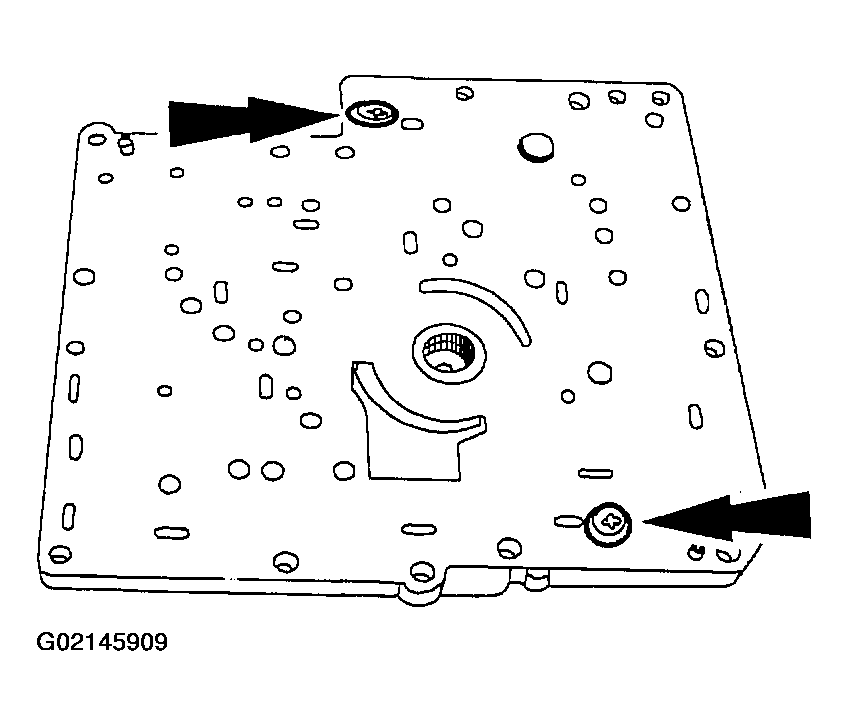

Remove the bolts.

Fig 2: Removing Pump Assembly Bolts
Courtesy of FORD MOTOR CO.

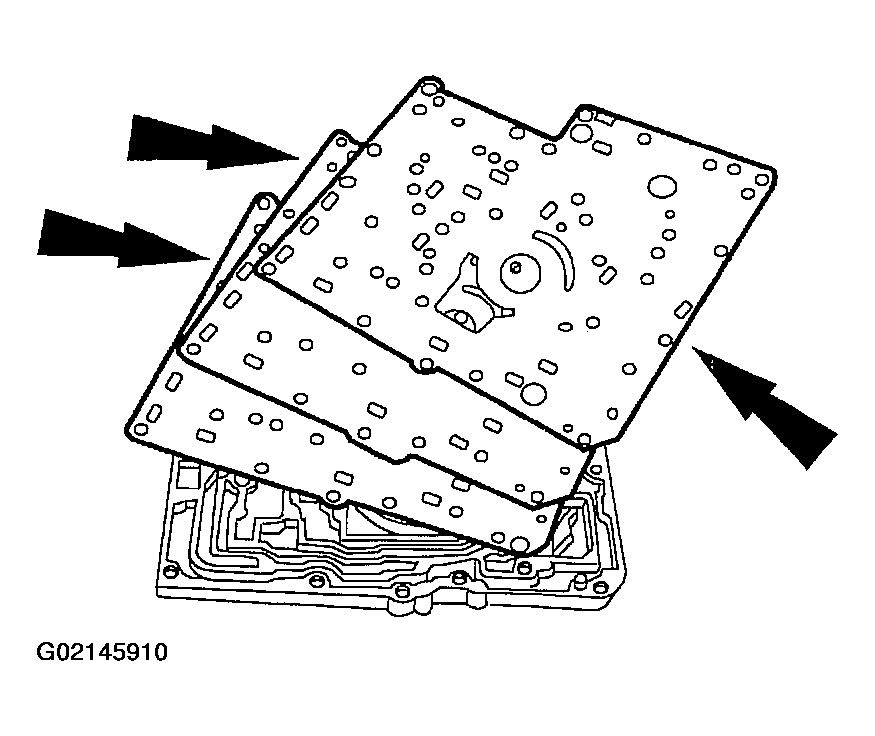

Remove the valve body separator plates and gaskets.

Fig 3: Removing Valve Body Separator Plates And Gaskets
Courtesy of FORD MOTOR CO.

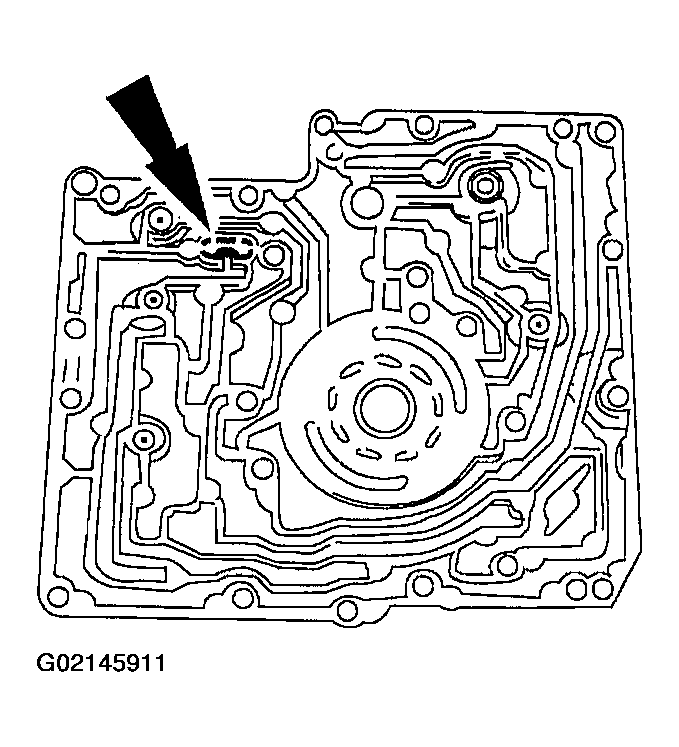

Remove the check ball and nuts the location.

Fig 4: Removing Check Ball
Courtesy of FORD MOTOR CO.

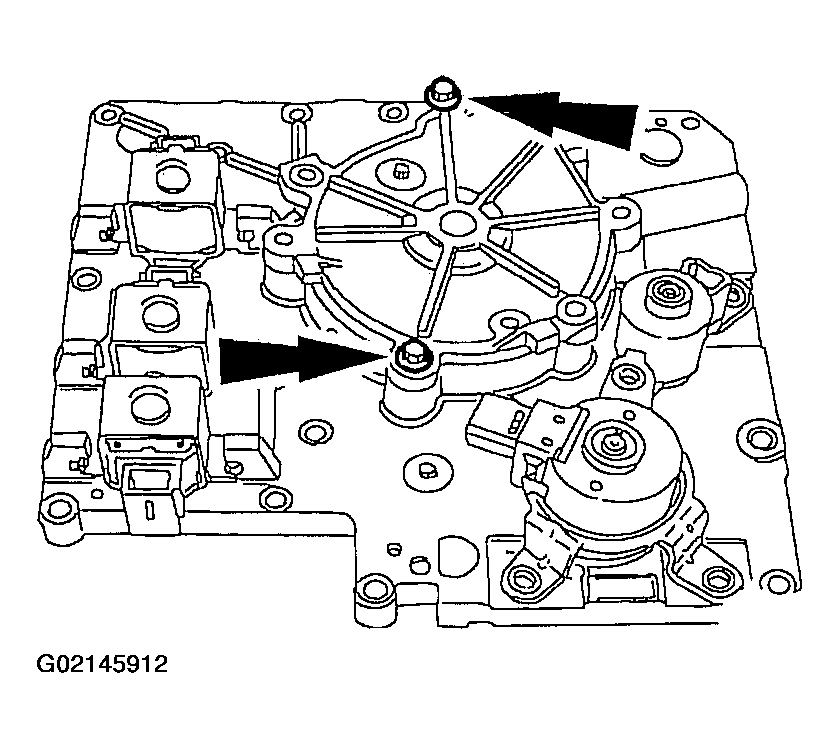

Remove the bolts and the pump cover.

Fig 5: Removing Bolts And Pump Cover
Courtesy of FORD MOTOR CO.

WARNING: Use extreme caution when removing spring to prevent personal injury.
