Toe-In Adjustment: Rear

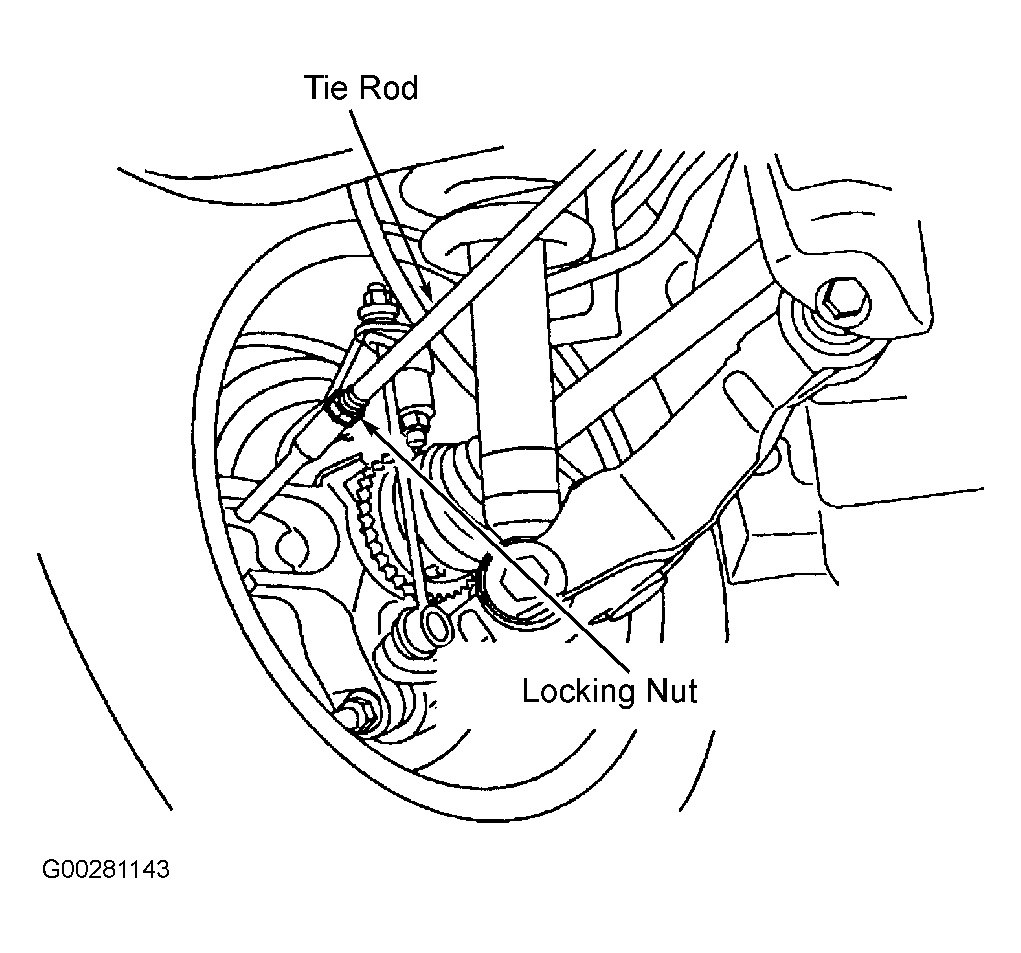

Hold rear tie rod end while loosening locking nuts. See Fig 1 . Rotate tie rod to obtain correct toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . Tighten locking nut to specification. See TORQUE SPECIFICATIONS . Recheck toe-in.
