2002 Ford Mustang Base, 2D Convertible, AutomaticFACTORY OEM SERVICE PROCEDURE
Disassembly And Assembly: Disassembly

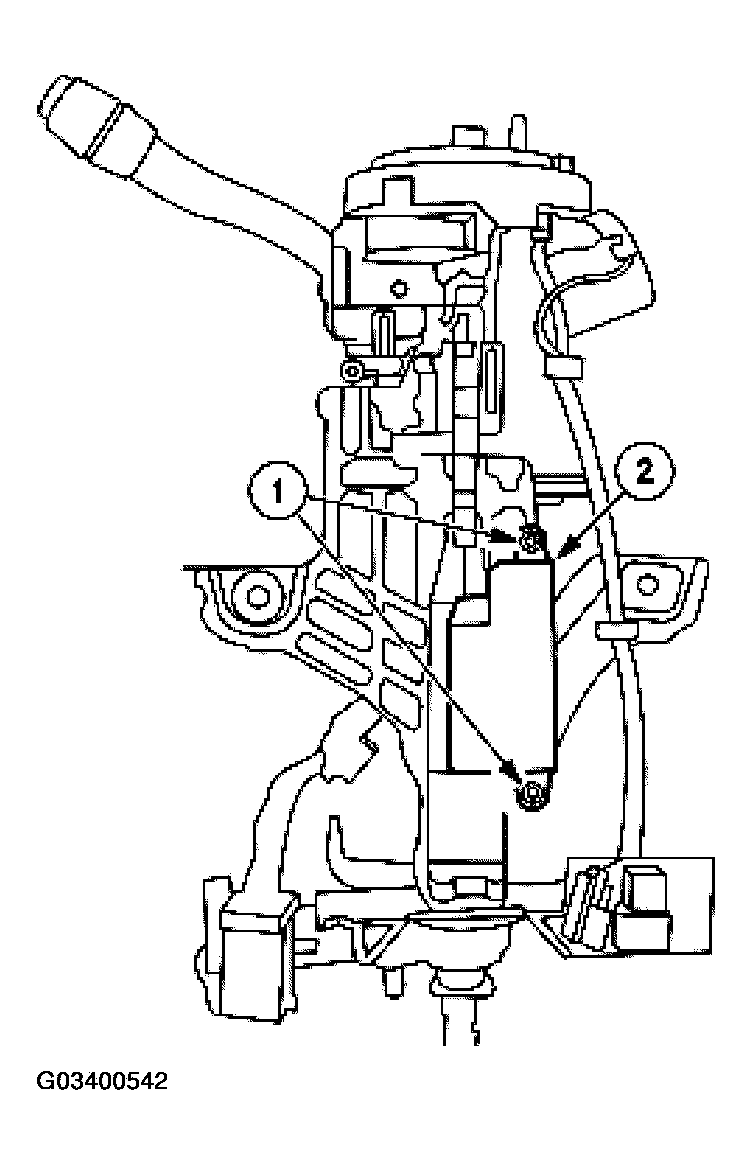

- Remove the steering column (3C529). For additional information, refer to COLUMN .
- Remove the ignition switch (11572).
- Remove the screws.
- Remove the ignition switch.
WARNING:
To avoid risk of serious personal injury, follow all warnings, cautions, notes and instructions
during the driver air bag removal and installation procedure. See AIR BAG RESTRAINT SYSTEMS
article.
CAUTION:
Carefully note the position of the steering column lock gear, bearing and retainer prior to removal.
