2002 Ford Focus SVTFACTORY OEM SERVICE PROCEDURE

Section 298 (Engine-2.0L SPI): Assembly: Engine: Material

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

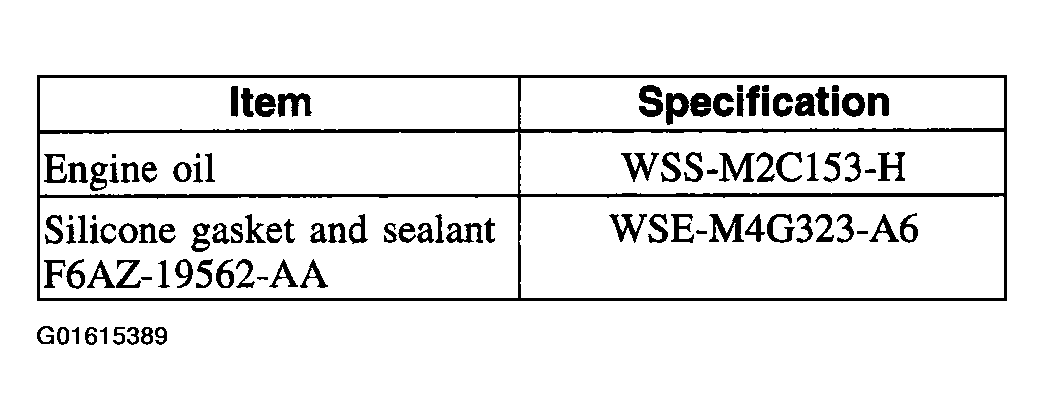

Fig 1: Material Specification Index - Engine (Assembly)

Courtesy of FORD MOTOR CO.

CAUTION: Do not use abrasive grinding discs to remove the gasket material; use only plastic manual scrapers. Do not scratch or gouge aluminum sealing surfaces.
