Driver's Power Window Control Switch (4-Door)

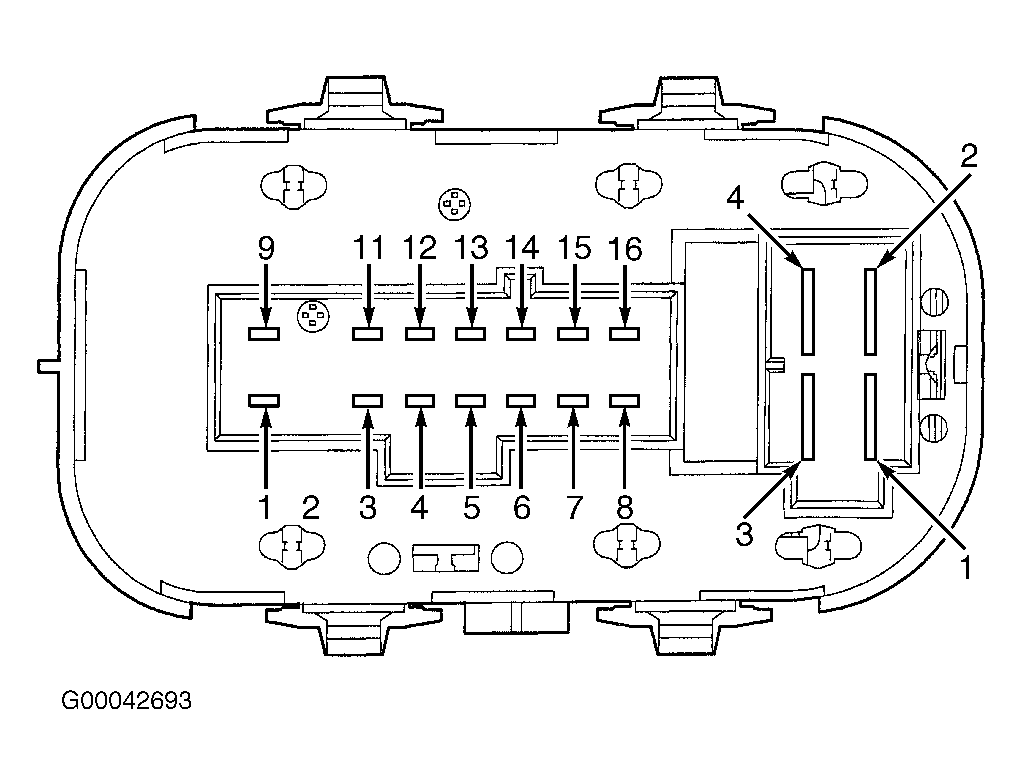

Check continuity between specified terminals at appropriate connector with switch in specified position. See DRIVER'S POWER WINDOW CONTROL SWITCH TESTING (4-DOOR) table. See Fig 1. If continuity does not exist as specified, replace switch and retest system operation
| Test Between Terminals No. (Connector) | Switch Position | Continuity | |
|---|---|---|---|
| Left Front Power Window Switch | |||
| 3 (C486) & 9 (C487) | Neutral | Yes | |
| 3 (C486) & 9 (C487) | Up | No | |
| 4 (C486) & 9 (C487) | Neutral | No | |
| 4 (C486) & 9 (C487) | Up | Yes | |
| 4 (C486) & 11 (C487) | Neutral | No | |
| 4 (C486) & 11 (C487) | Down | Yes | |
| 4 (C486) & 11 (C487) | One-Touch Down | Yes | |
| 4 (C486) & 12 (C487) | Neutral | No | |
| 4 (C486) & 12 (C487) | Down | No | |
| 4 (C486) & 12 (C487) | One-Touch Down | Yes | |
| Right Front Power Window Switch | |||
| 1 (C487) & 3 (C486) | Neutral | Yes | |
| 1 (C487) & 3 (C486) | Up | No | |
| 1 (C487) & 3 (C486) | Down | No | |
| 1 (C487) & 4 (C486) | Neutral | No | |
| 1 (C487) & 4 (C486) | Up | Yes | |
| 1 (C487) & 4 (C486) | Down | No | |
| 3 (C486) & 4 (C487) | Neutral | Yes | |
| 3 (C486) & 4 (C487) | Up | Yes | |
| 3 (C486) & 4 (C487) | Down | No | |
| 4 (C486) & 4 (C487) | Neutral | No | |
| 4 (C486) & 4 (C487) | Up | No | |
| 4 (C486) & 4 (C487) | Down | Yes | |
| Left Rear Power Window Switch | |||
| 2 (C486) & 15 (C487) | Neutral | No | |
| 2 (C486) & 15 (C487) | Up | Yes | |
| 2 (C486) & 15 (C487) | Down | No | |
| 2 (C486) & 16 (C487) | Neutral | No | |
| 2 (C486) & 16 (C487) | Up | No | |
| 2 (C486) & 16 (C487) | Down | Yes | |
| 3 (C486) & 15 (C487) | Neutral | Yes | |
| 3 (C486) & 15 (C487) | Up | No | |
| 3 (C486) & 15 (C487) | Down | Yes | |
| 3 (C486) & 16 (C487) | Neutral | Yes | |
| 3 (C486) & 16 (C487) | Up | Yes | |
| 3 (C486) & 16 (C487) | Down | No | |
| Right Rear Power Window Switch | |||
| 2 (C486) & 7 (C487) | Neutral | No | |
| 2 (C486) & 7 (C487) | Up | Yes | |
| 2 (C486) & 7 (C487) | Down | No | |
| 2 (C486) & 8 (C487) | Neutral | No | |
| 2 (C486) & 8 (C487) | Up | No | |
| 2 (C486) & 8 (C487) | Down | Yes | |
| 3 (C486) & 7 (C487) | Neutral | Yes | |
| 3 (C486) & 7 (C487) | Up | No | |
| 3 (C486) & 7 (C487) | Down | Yes | |
| 3 (C486) & 8 (C487) | Neutral | Yes | |
| 3 (C486) & 8 (C487) | Up | Yes | |
| 3 (C486) & 8 (C487) | Down | No | |
| Rear Window Cutoff Switch | |||
| 2 (C486) & 1 (C486) | Off | No | |
| 2 (C486) & 1 (C486) | On | Yes | |
