Driver's Power Window Control Switch (2-Door)
Remove power window control switch. See POWER WINDOW CONTROL SWITCH under REMOVAL & INSTALLATION.

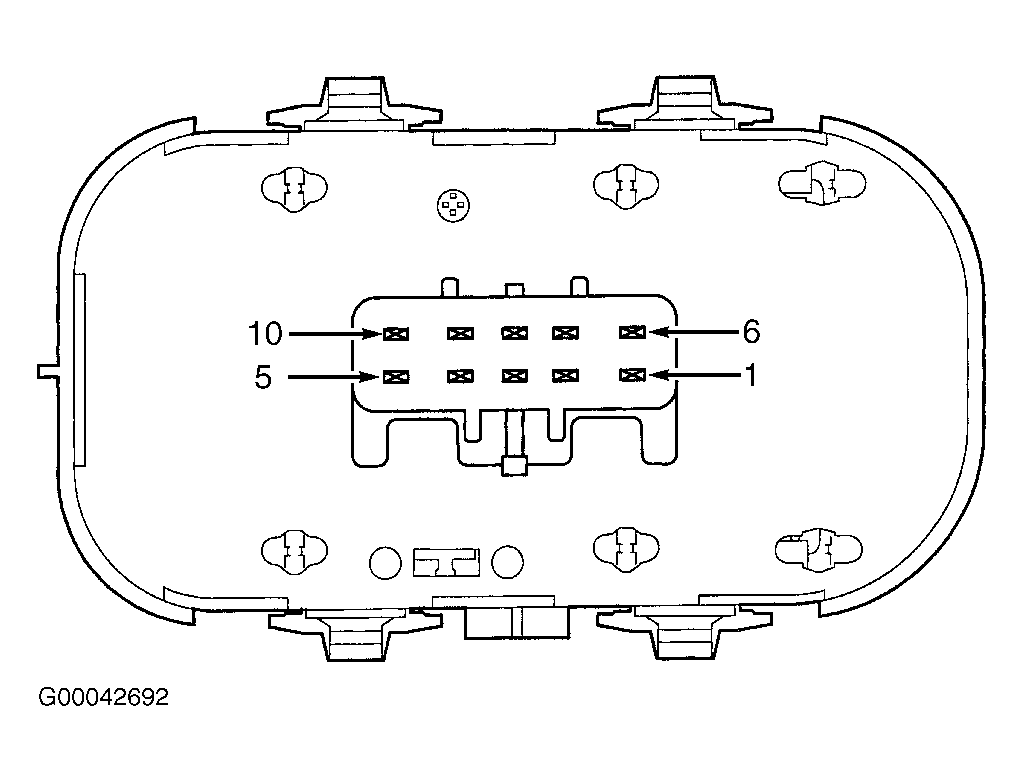

Check continuity between specified terminals at appropriate connector with switch in specified position. See DRIVER'S POWER WINDOW CONTROL SWITCH TESTING (2-DOOR) table. See Fig 1. If continuity does not exist as specified, replace switch and retest system operation.
| Test Between Terminals No. | Switch Position | Continuity | |
|---|---|---|---|
| Left Front Power Window Switch | |||
| 1 & 8 | Neutral | Yes | |
| 1 & 8 | Up | No | |
| 8 & 10 | Neutral | No | |
| 8 & 10 | Up | Yes | |
| Right Front Power Window Switch | |||
| 1 & 3 | Neutral | Yes | |
| 1 & 3 | Up | Yes | |
| 1 & 3 | Down | No | |
| 1 & 5 | Neutral | Yes | |
| 1 & 5 | Up | No | |
| 1 & 5 | Down | Yes | |
| 3 & 10 | Neutral | No | |
| 3 & 10 | Up | No | |
| 3 & 10 | Down | Yes | |
| 5 & 10 | Neutral | No | |
| 5 & 10 | Up | Yes | |
| 5 & 10 | Down | No | |
