2002 Ford Focus S2FACTORY OEM SERVICE PROCEDURE

Main Controls: Removal

  1. Remove the fluid pan. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  2. Disconnect the transmission fluid temperature (TFT) sensor electrical connector.

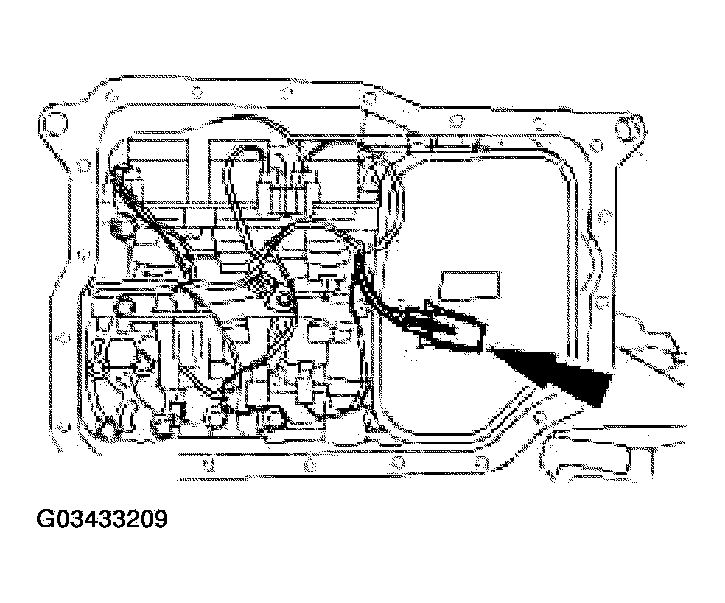

    Fig 1: Disconnecting Transmission Fluid Temperature (TFT) Sensor Electrical Connector
    G03433209Courtesy of FORD MOTOR CO.
  3. Remove the fluid filter.

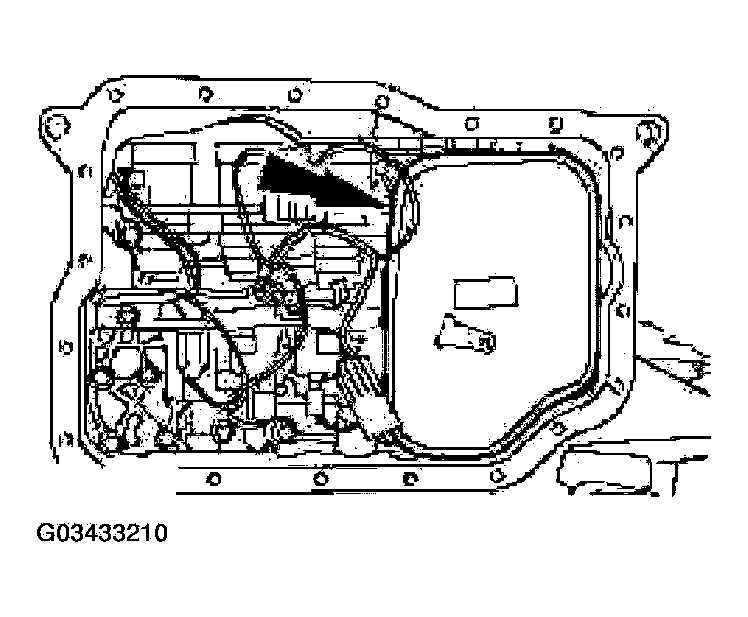

    Fig 2: Removing Fluid Filter
    G03433210Courtesy of FORD MOTOR CO.
    4. NOTE: It is necessary to note the location of the main control wire harness connectors so they can be connected in the same positions. Connector color letters are cast into the solenoid body.
  4. Remove the ground wire bolt. Disconnect the electrical connectors and remove the main control wiring harness.
    1. Solenoid SSC; Color N (Neutral/White).
    2. Solenoid SSE; Color G (Green).
    3. Solenoid SSD; Color L (Blue).
    4. Solenoid EPC; Color B (Black).
    5. Solenoid SSA; Color N (Neutral).
    6. Solenoid SSB; Color B (Black).

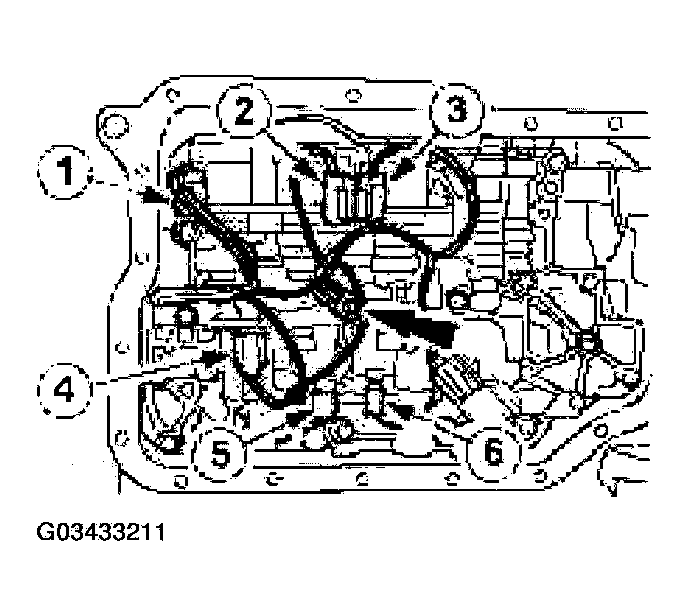

      Fig 3: Disconnecting Electrical Connectors And Removing Main Control Wiring Harness
      G03433211Courtesy of FORD MOTOR CO.
    5. NOTE: Note the locations of the two long bolts.
