2002 Ford Focus S2FACTORY OEM SERVICE PROCEDURE
Main Controls: Installation

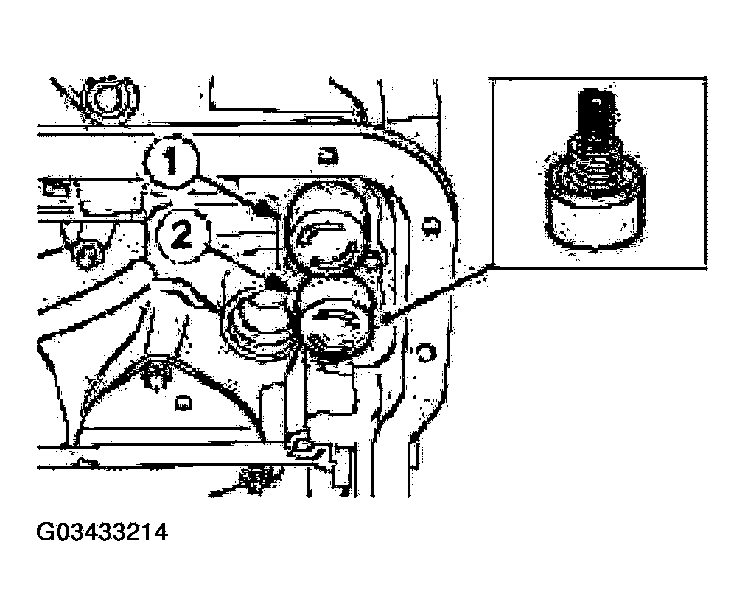

- Install the accumulator pistons and springs.
- Accumulator 1 and 2.
- Accumulator N and D.
NOTE:
The thin longer springs are for the neutral and drive accumulator.
CAUTION:
Make sure that the manual valve is in the manual control valve shift lever.
