2002 Ford Focus S2FACTORY OEM SERVICE PROCEDURE

Pump Assembly: Disassembly

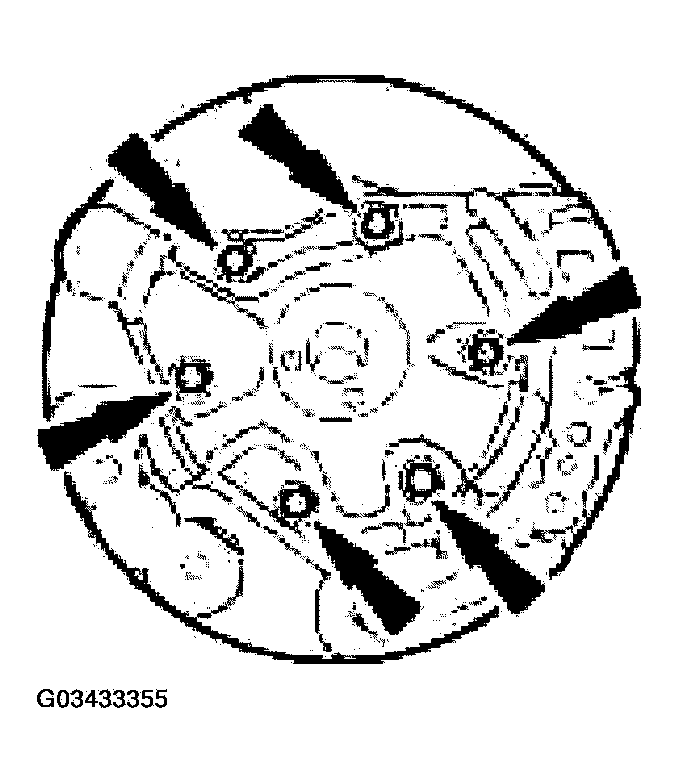

Remove the top portion of the pump.

Fig 1: Removing Top Portion Of Pump
Courtesy of FORD MOTOR CO.

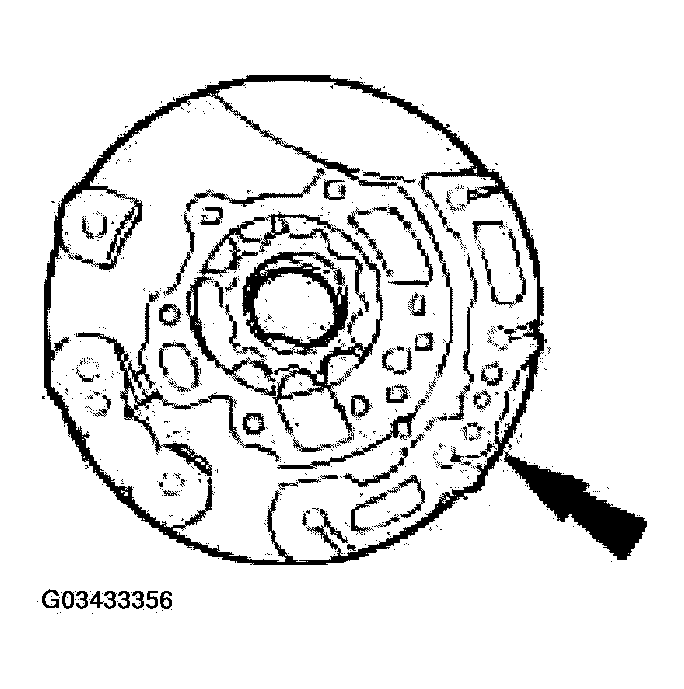

Inspect the lower portion of the pump and gear pocket for nicks, scratches, gouges or wear.

Fig 2: Inspecting Lower Portion Of Pump And Gear Pocket For Nicks
Courtesy of FORD MOTOR CO.

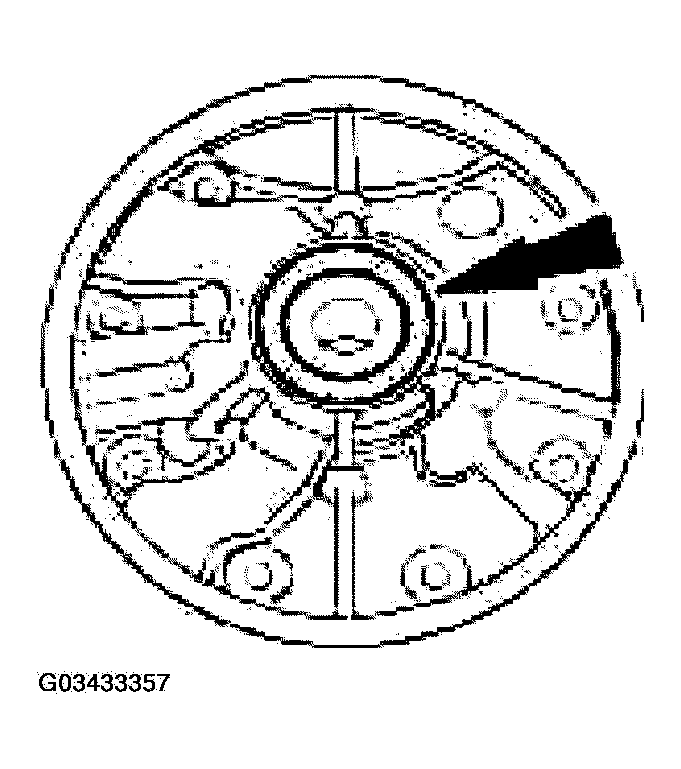

Remove the pump seal.

Fig 3: Removing Pump Seal
Courtesy of FORD MOTOR CO.

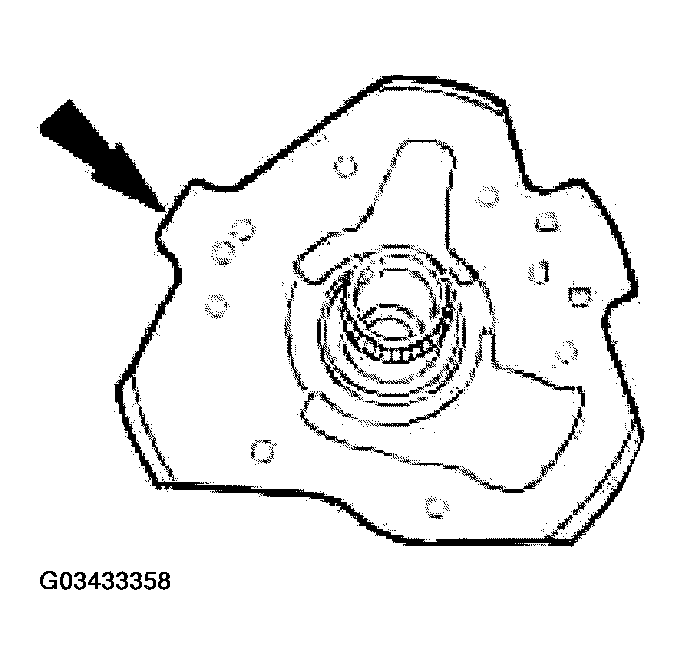

Inspect the upper portion of the pump for nicks, scratches or gouges.

Fig 4: Inspecting Upper Portion Of Pump For Nicks
Courtesy of FORD MOTOR CO.

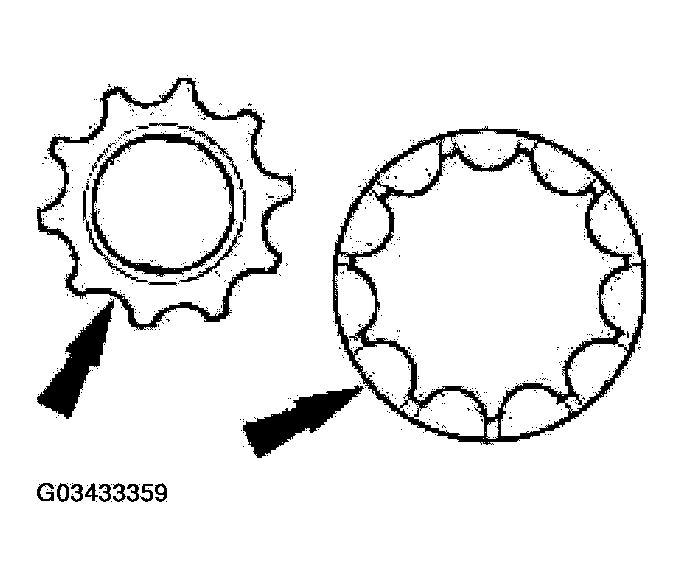

Inspect the pump gears of nicks, scratches or gouges.

Fig 5: Inspecting Pump Gears Of Nicks, Scratches Or Gouges
Courtesy of FORD MOTOR CO.
