2002 Ford Focus S2FACTORY OEM SERVICE PROCEDURE

Planetary Assembly: Disassembly

  1. Inspect the planet internal bearing for damage.

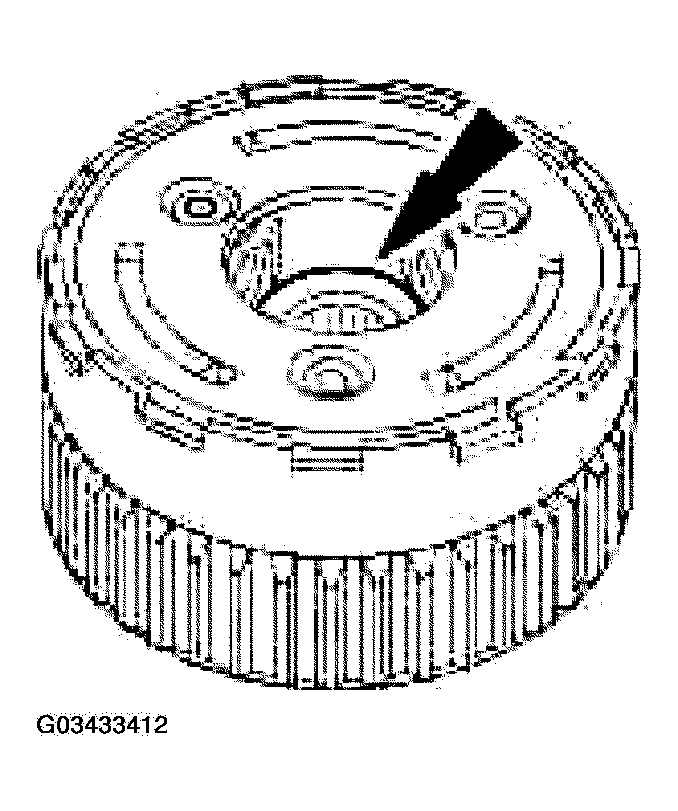

    Fig 1: Inspecting Planet Internal Bearing For Damage
    G03433412Courtesy of FORD MOTOR CO.
  2. Remove the snap ring.

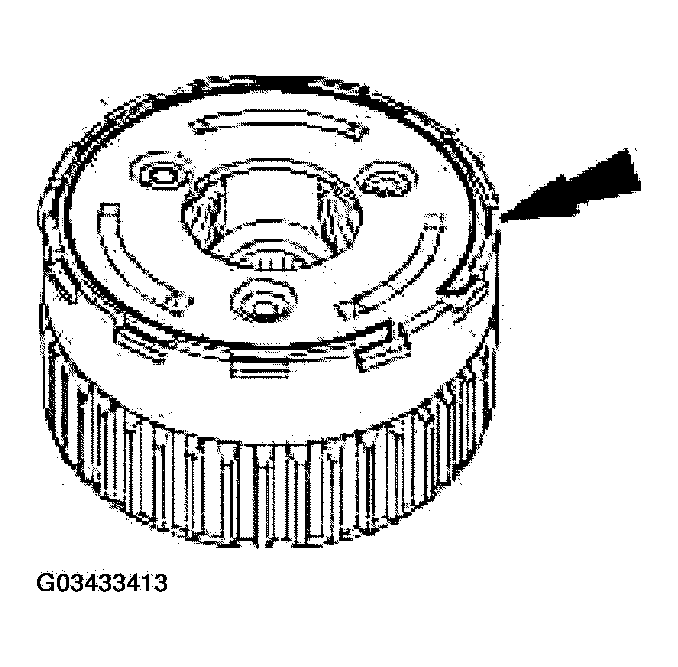

    Fig 2: Removing Snap Ring
    G03433413Courtesy of FORD MOTOR CO.
  3. Remove the rear planet assembly.

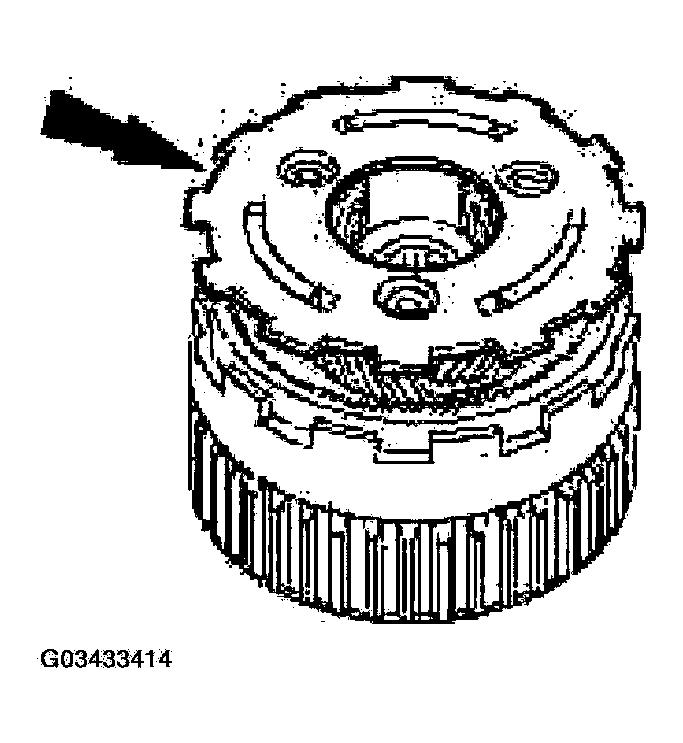

    Fig 3: Removing Rear Planet Assembly
    G03433414Courtesy of FORD MOTOR CO.
  4. Remove the thrust bearing.

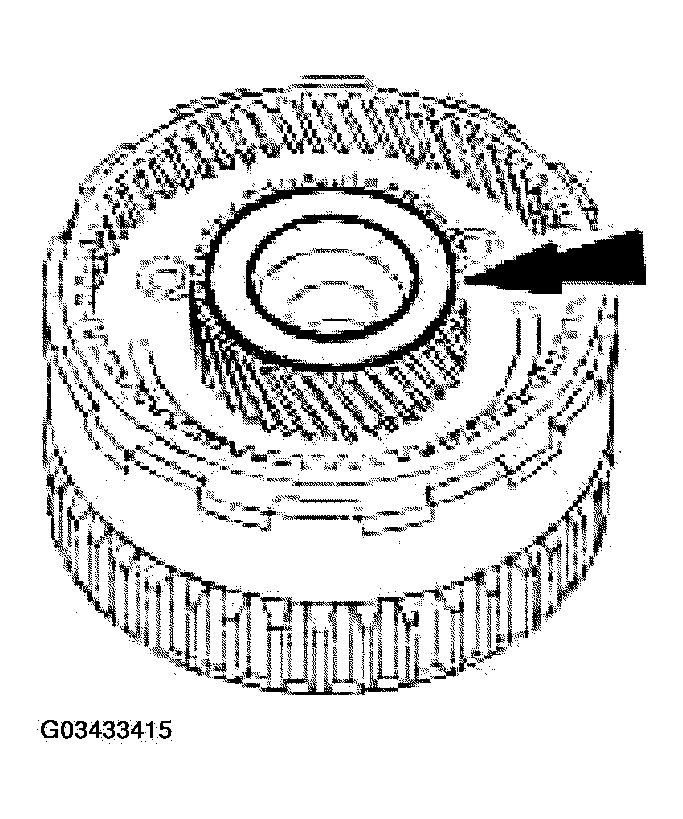

    Fig 4: Removing Thrust Bearing
    G03433415Courtesy of FORD MOTOR CO.
  5. Remove the forward planet sun gear.

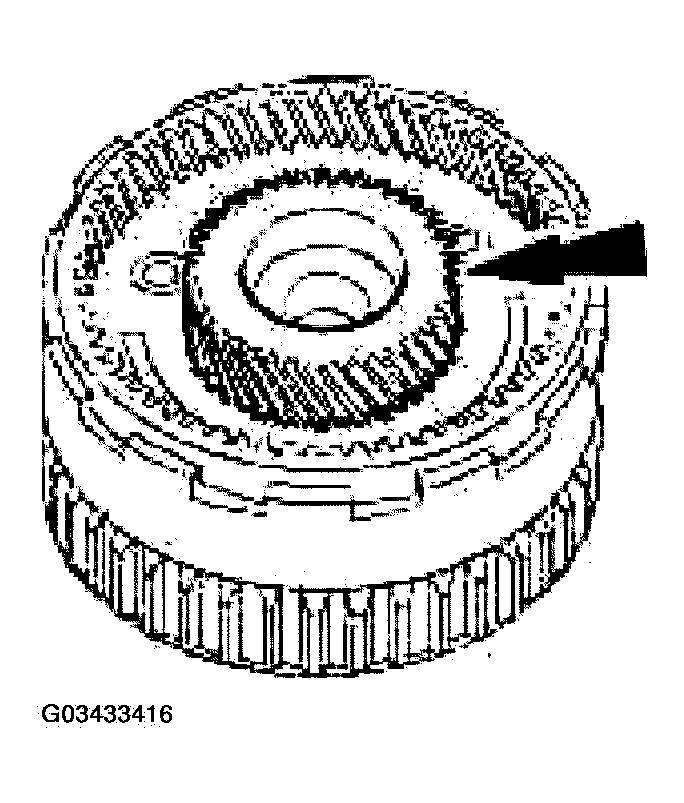

    Fig 5: Removing Forward Planet Sun Gear
    G03433416Courtesy of FORD MOTOR CO.
  6. Remove the thrust bearing.

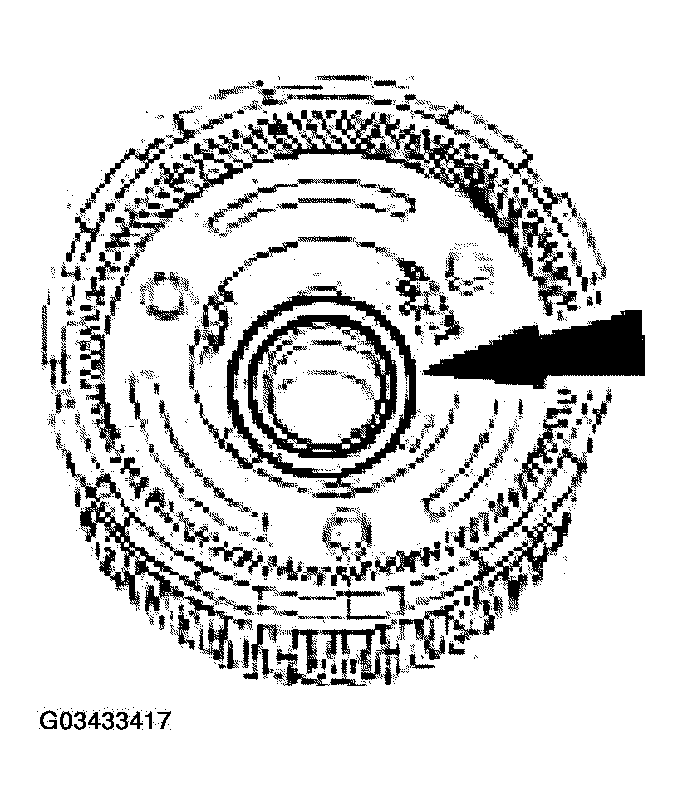

    Fig 6: Removing Thrust Bearing]
    G03433417Courtesy of FORD MOTOR CO.
  7. Remove the forward planet assembly.

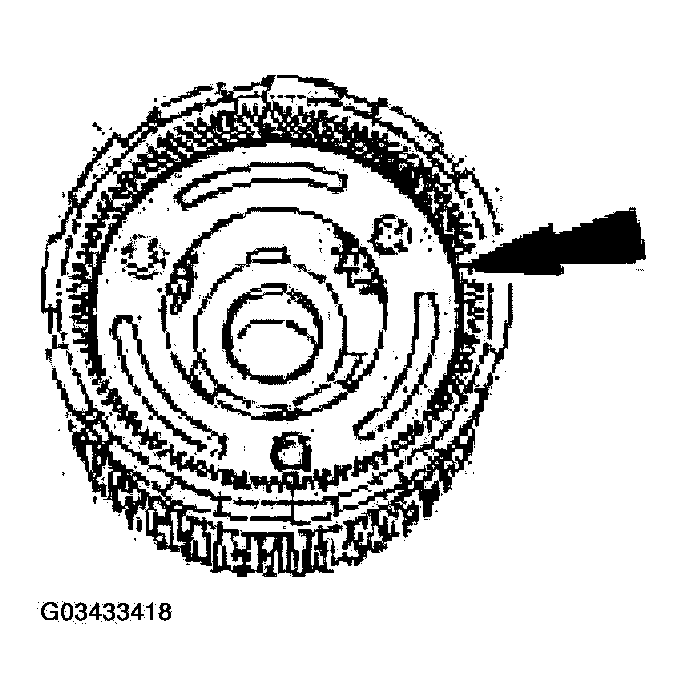

    Fig 7: Removing Forward Planet Assembly
    G03433418Courtesy of FORD MOTOR CO.
  8. Inspect the low and reverse ring gear.

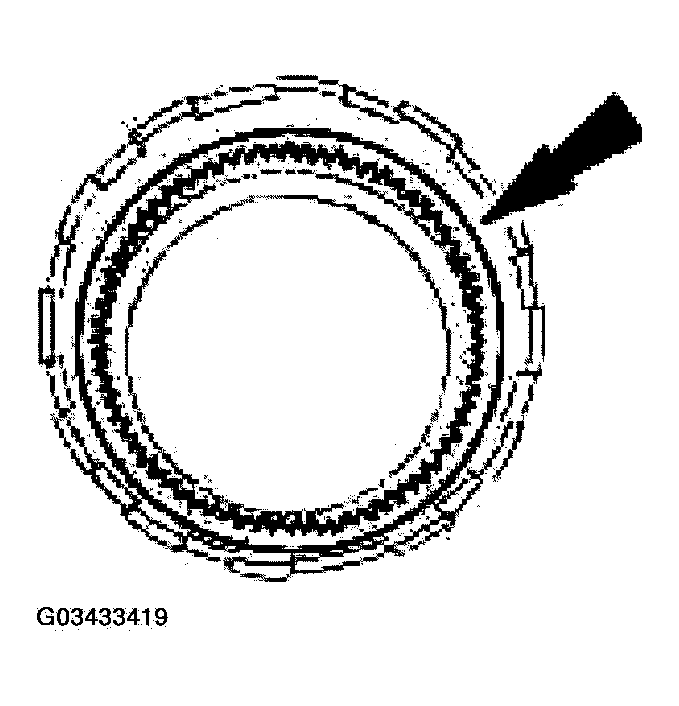

    Fig 8: Inspecting Low And Reverse Ring Gear
    G03433419Courtesy of FORD MOTOR CO.
  9. Remove the top retainer of the one-way clutch.

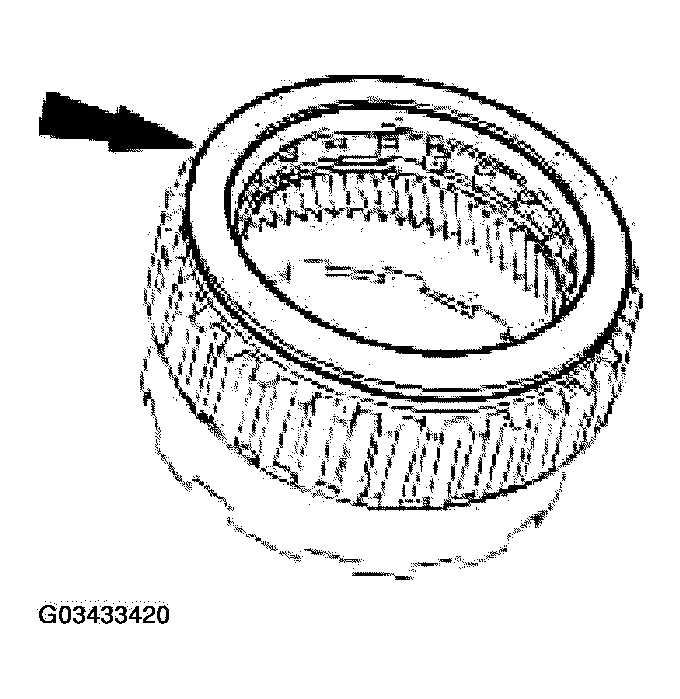

    Fig 9: Removing Top Retainer Of One-Way Clutch
    G03433420Courtesy of FORD MOTOR CO.
  10. Remove the top one-way clutch ring.

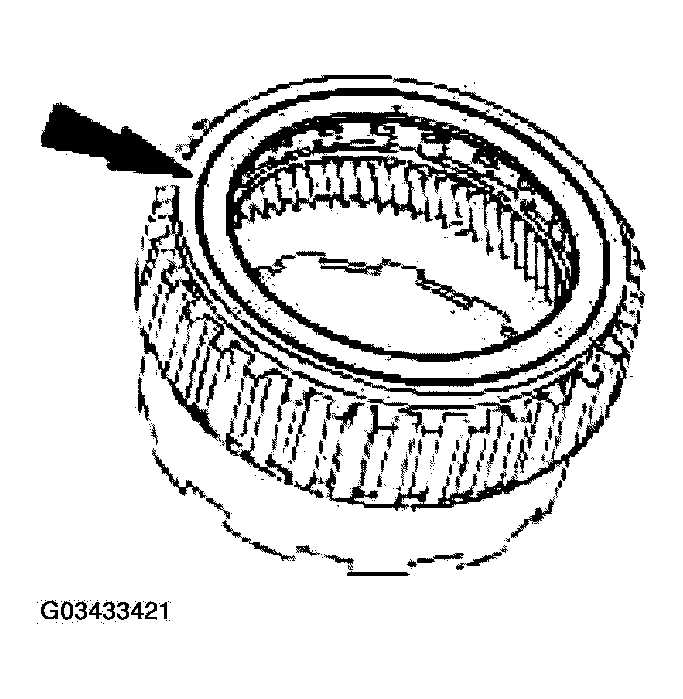

    Fig 10: Removing Top One-Way Clutch Ring]
    G03433421Courtesy of FORD MOTOR CO.
  11. Remove the low one-way clutch assembly.

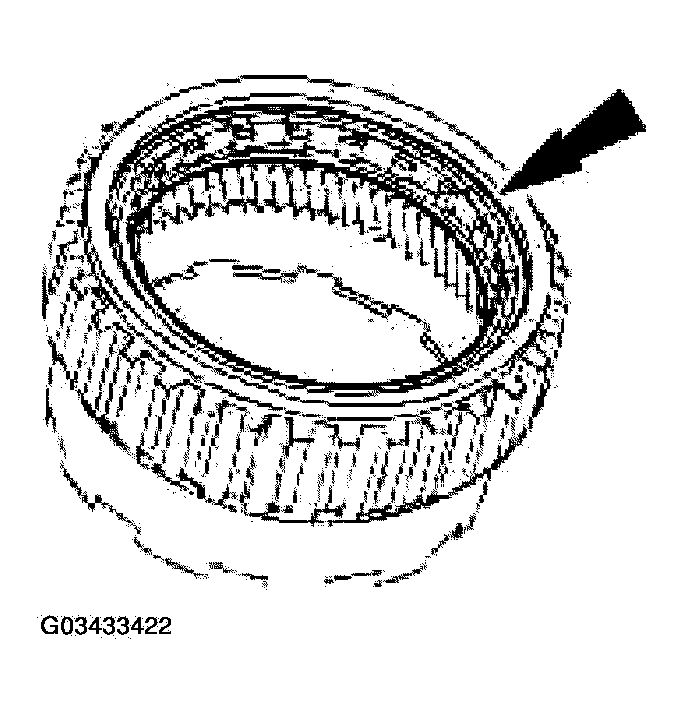

    Fig 11: Removing Low One-Way Clutch Assembly
    G03433422Courtesy of FORD MOTOR CO.
  12. Remove the lower one-way ring.

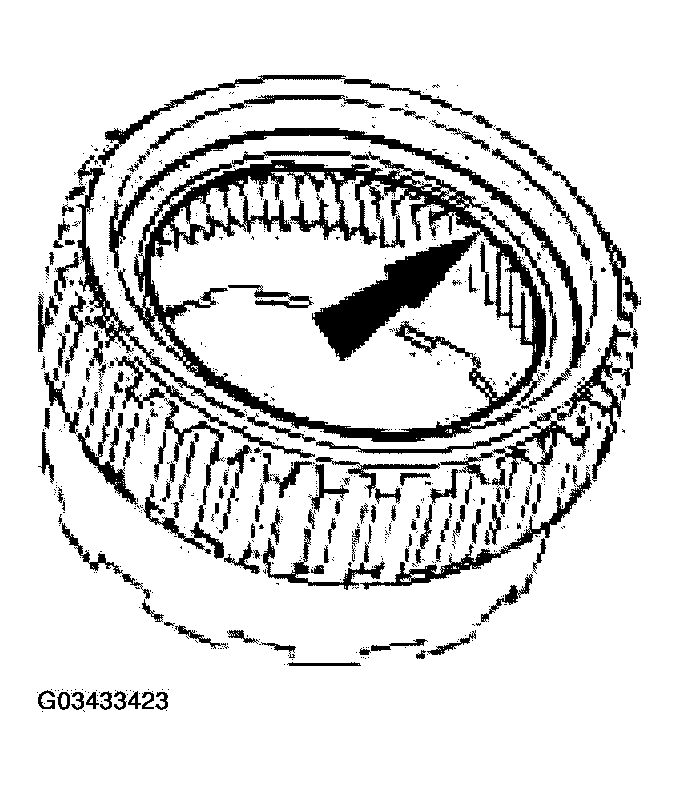

    Fig 12: Removing Lower One-Way Ring
    G03433423Courtesy of FORD MOTOR CO.
