2002 Ford Focus S2FACTORY OEM SERVICE PROCEDURE

Planetary Assembly: Assembly

  1. Install the lower one-way ring.

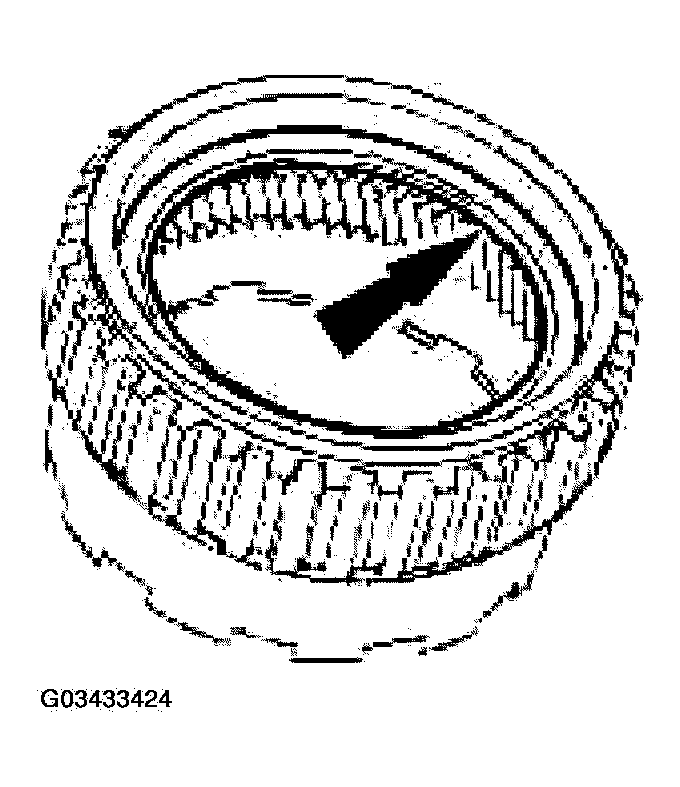

    Fig 1: Installing Lower One-Way Ring
    G03433424Courtesy of FORD MOTOR CO.
  2. Inspect the rollers and the springs of the one-way clutch.

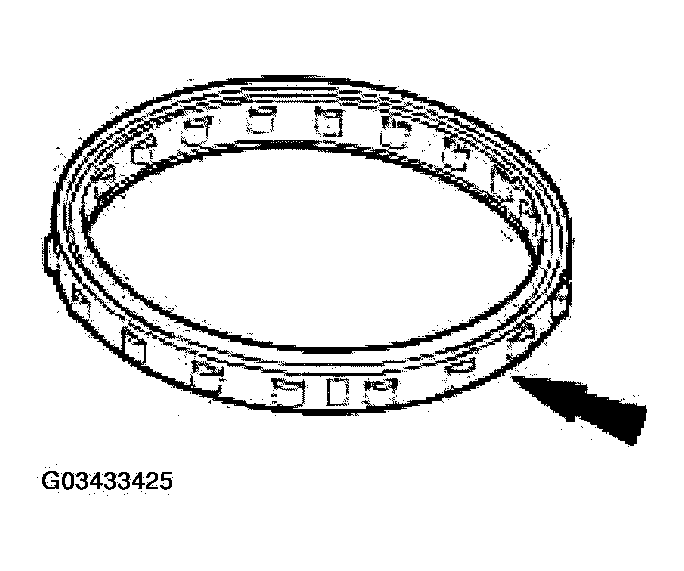

    Fig 2: Inspecting Rollers And Springs Of One-Way Clutch
    G03433425Courtesy of FORD MOTOR CO.

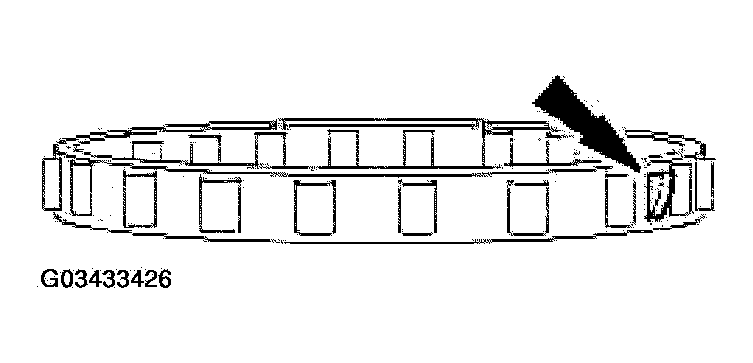

  3. Make sure the low one-way clutch is installed with the tab pointing in the direction as shown.
    Fig 3: Locating Direction Of Tab For Low One-Way Clutch
    G03433426Courtesy of FORD MOTOR CO.
  4. Install the low one-way clutch.

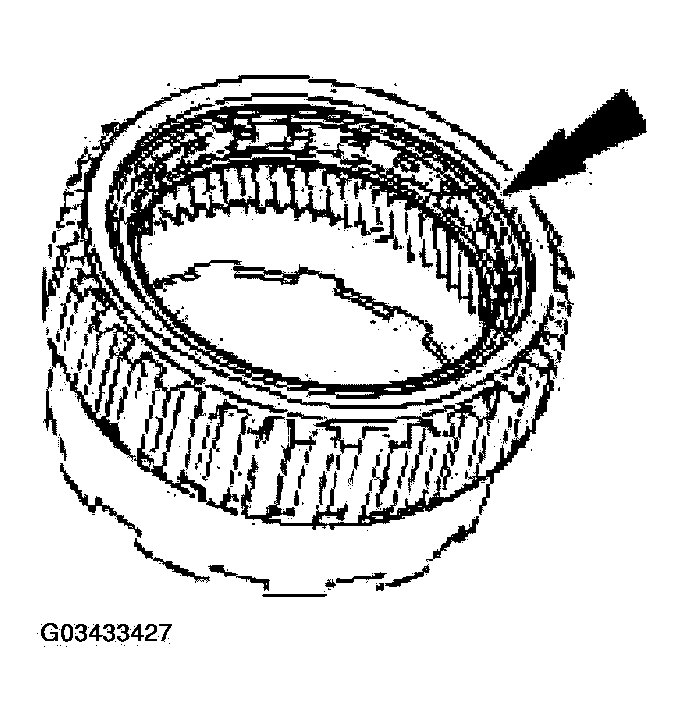

    Fig 4: Installing Low One-Way Clutch
    G03433427Courtesy of FORD MOTOR CO.
  5. Install the top one-way clutch ring.

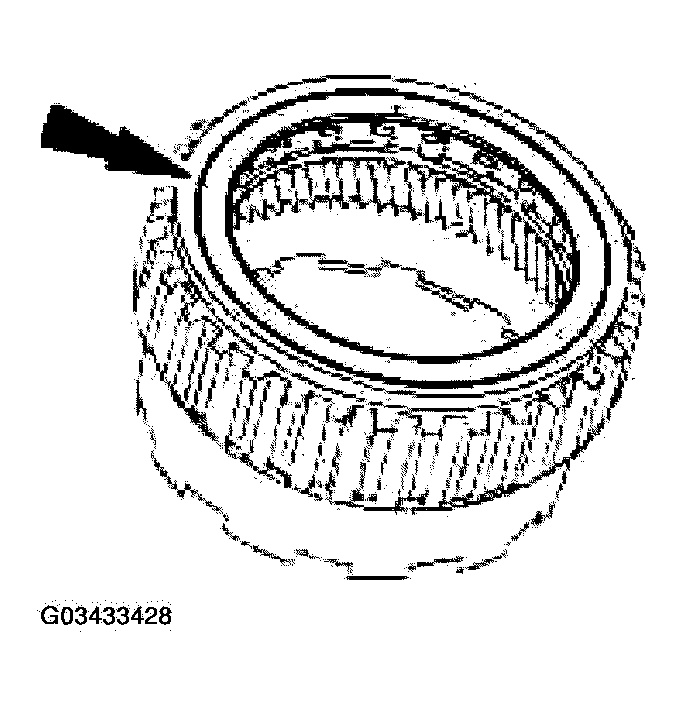

    Fig 5: Installing Top One-Way Clutch Ring
    G03433428Courtesy of FORD MOTOR CO.

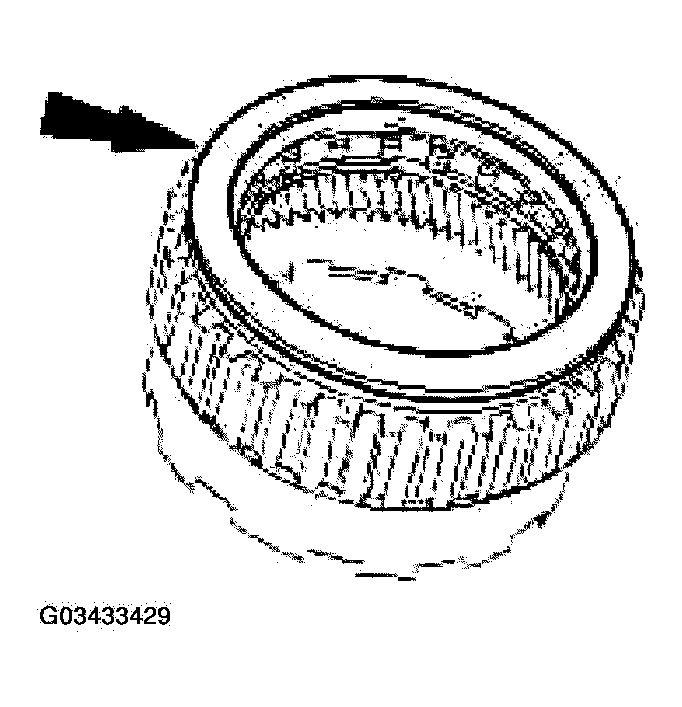

  6. Install the top retainer of the one-way clutch.
    Fig 6: Installing Top Retainer Of One-Way Clutch
    G03433429Courtesy of FORD MOTOR CO.
  7. Install the forward planet assembly.

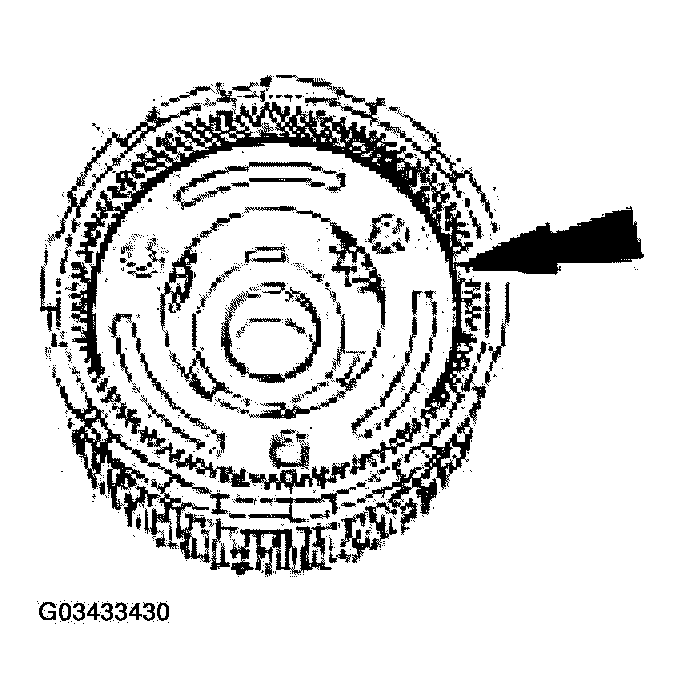

    Fig 7: Installing Forward Planet Assembly
    G03433430Courtesy of FORD MOTOR CO.

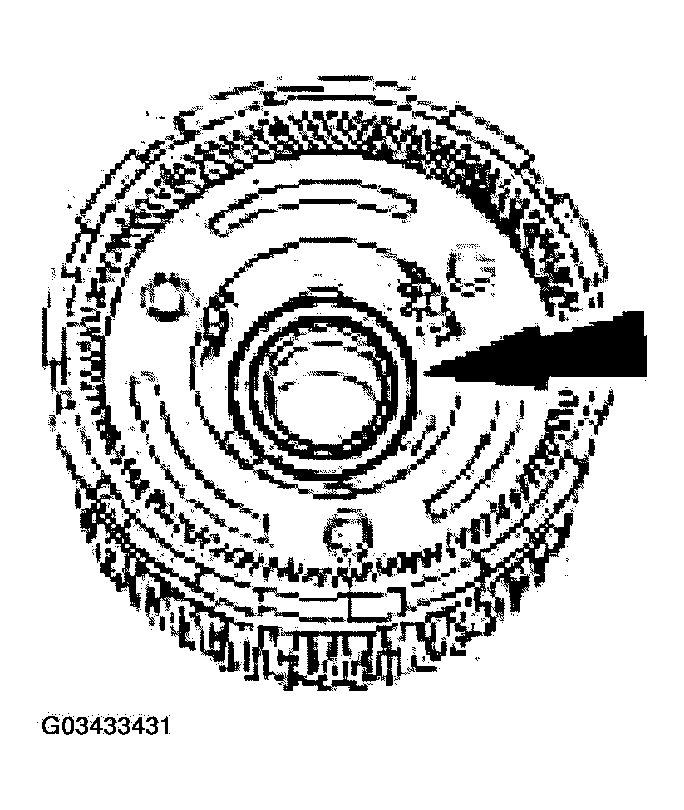

  8. Install the thrust bearing.
    Fig 8: Installing Thrust Bearing
    G03433431Courtesy of FORD MOTOR CO.

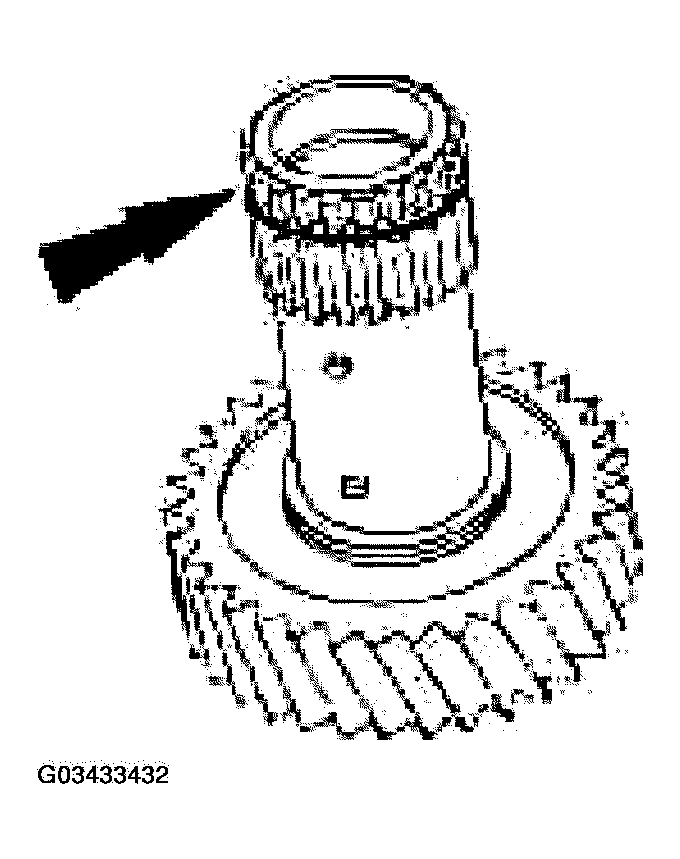

  9. Inspect the front sun gear retaining ring.
    Fig 9: Inspecting Front Sun Gear Retaining Ring
    G03433432Courtesy of FORD MOTOR CO.
  10. Install the forward planet sun gear.

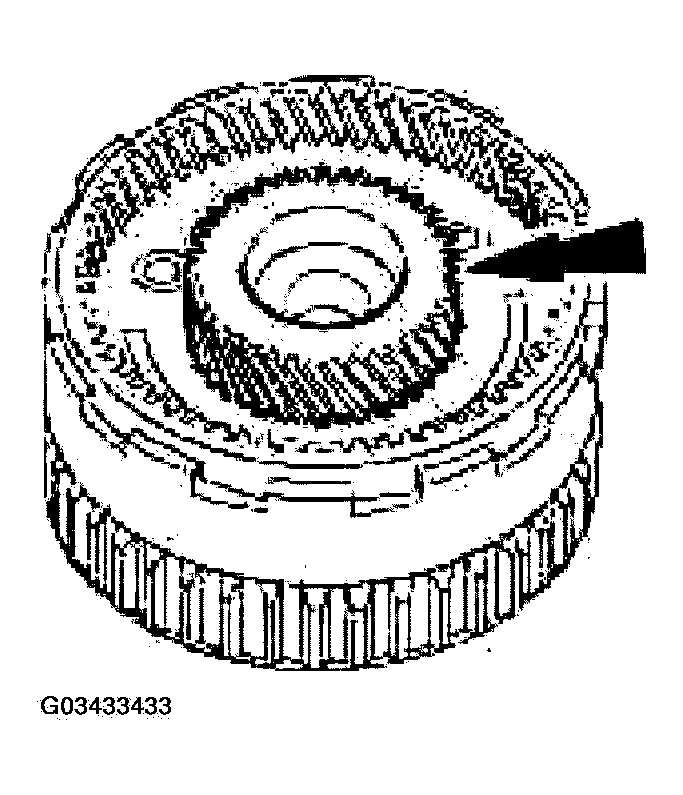

    Fig 10: Installing Forward Planet Sun Gear
    G03433433Courtesy of FORD MOTOR CO.

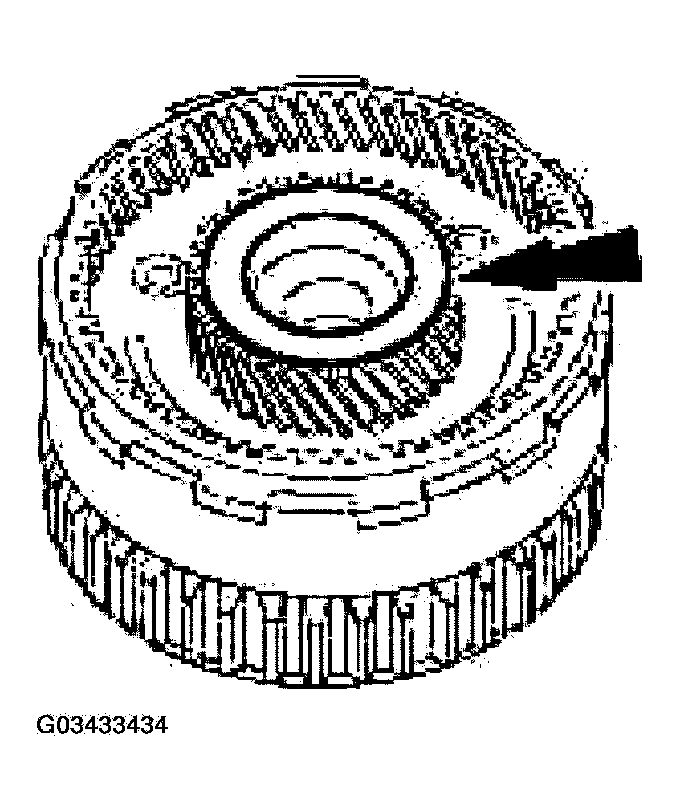

  11. Install the thrust bearing.
    Fig 11: Installing Thrust Bearing
    G03433434Courtesy of FORD MOTOR CO.
  12. Install the rear planet assembly.

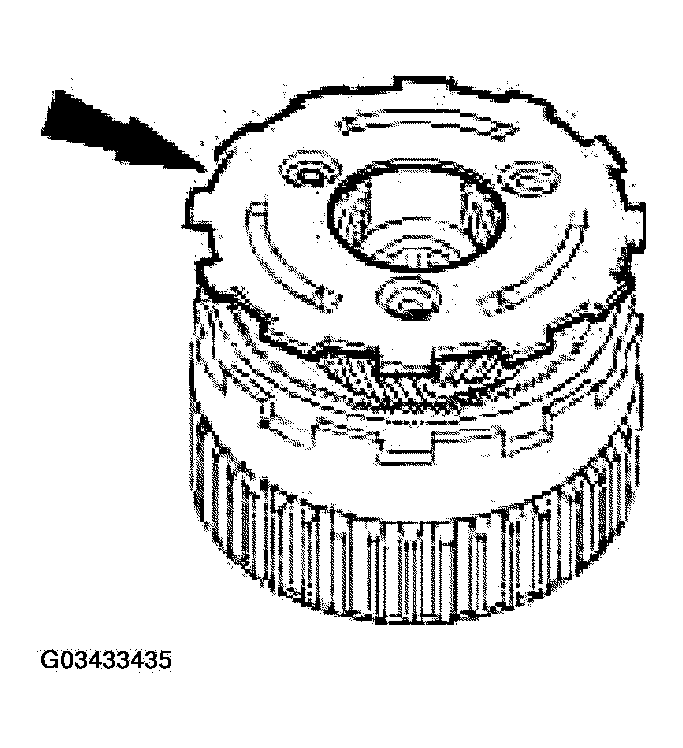

    Fig 12: Installing Rear Planet Assembly
    G03433435Courtesy of FORD MOTOR CO.
  13. Install the snap ring.

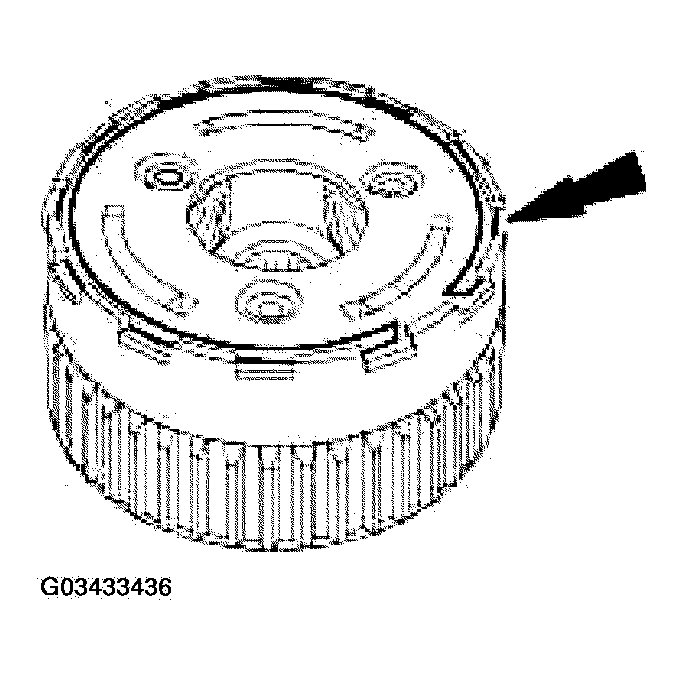

    Fig 13: Installing Snap Ring
    G03433436Courtesy of FORD MOTOR CO.
