2001 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Section 308 (Engine-SVT): Installation: Engine: Installation
WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 1. Install the transaxle.

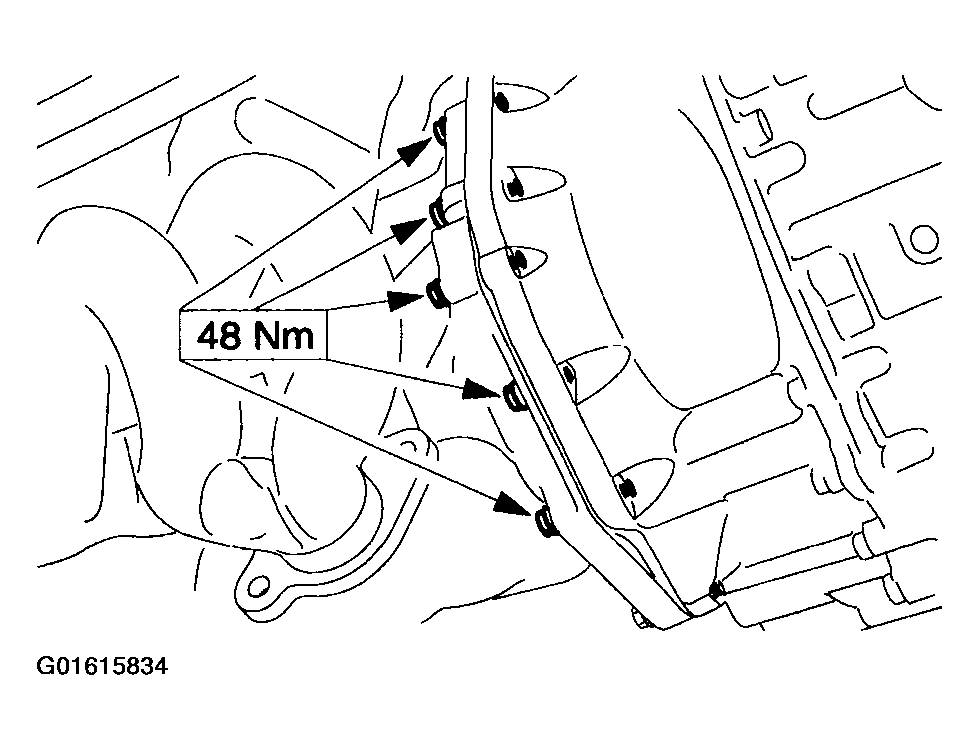

- 2. Install the transaxle left-hand retaining bolts.

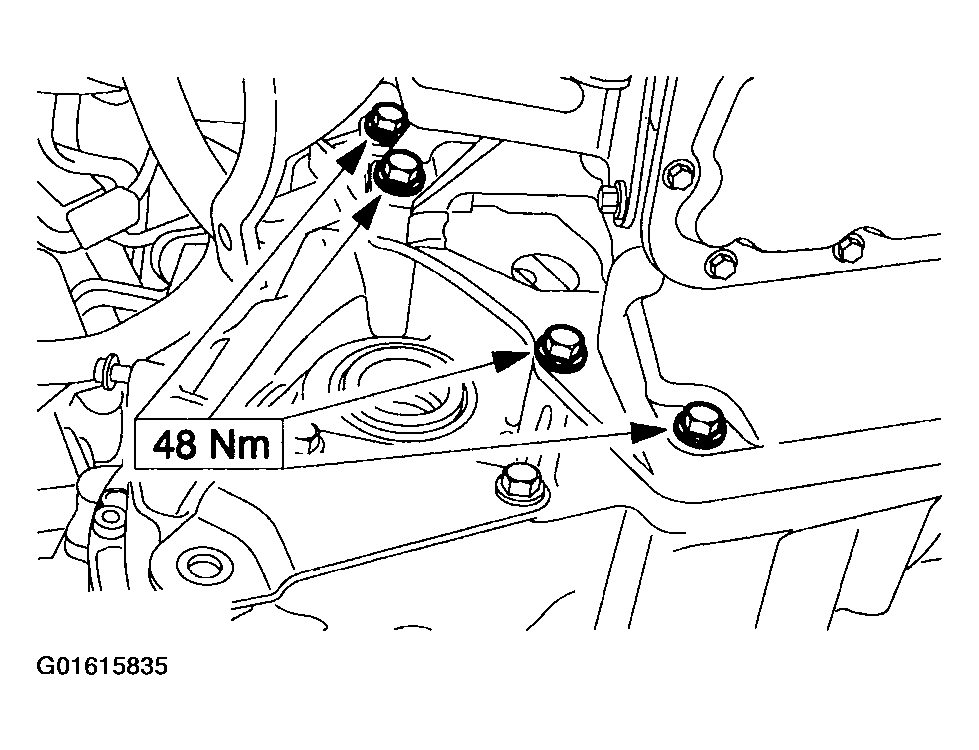

- 3. Install the transaxle right-hand retaining bolts.

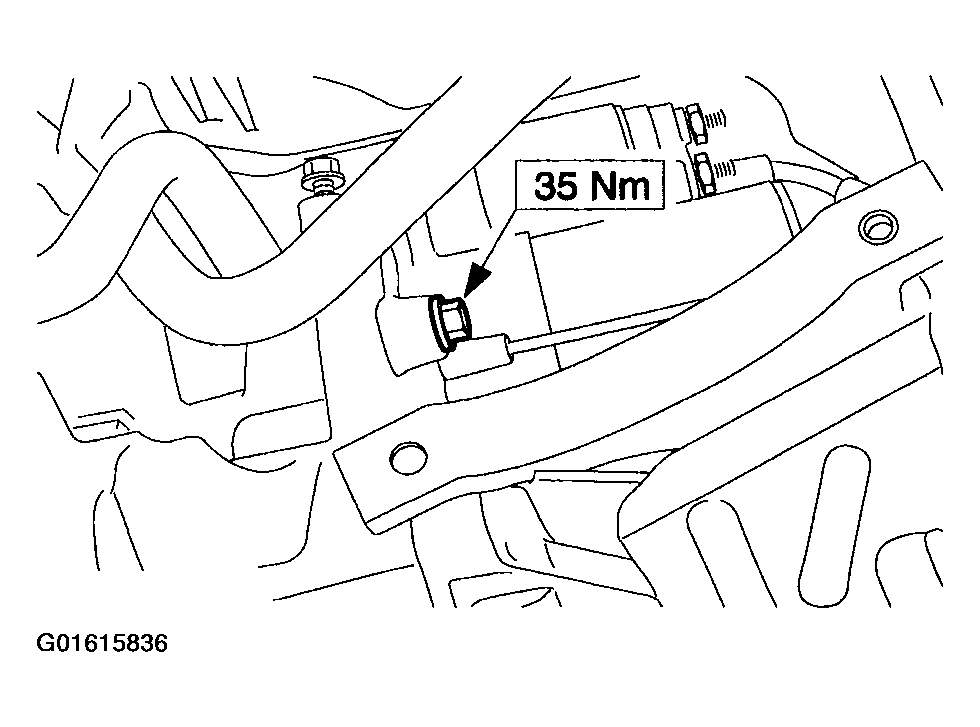

- 4. Attach the starter motor to the transaxle.
- 5.

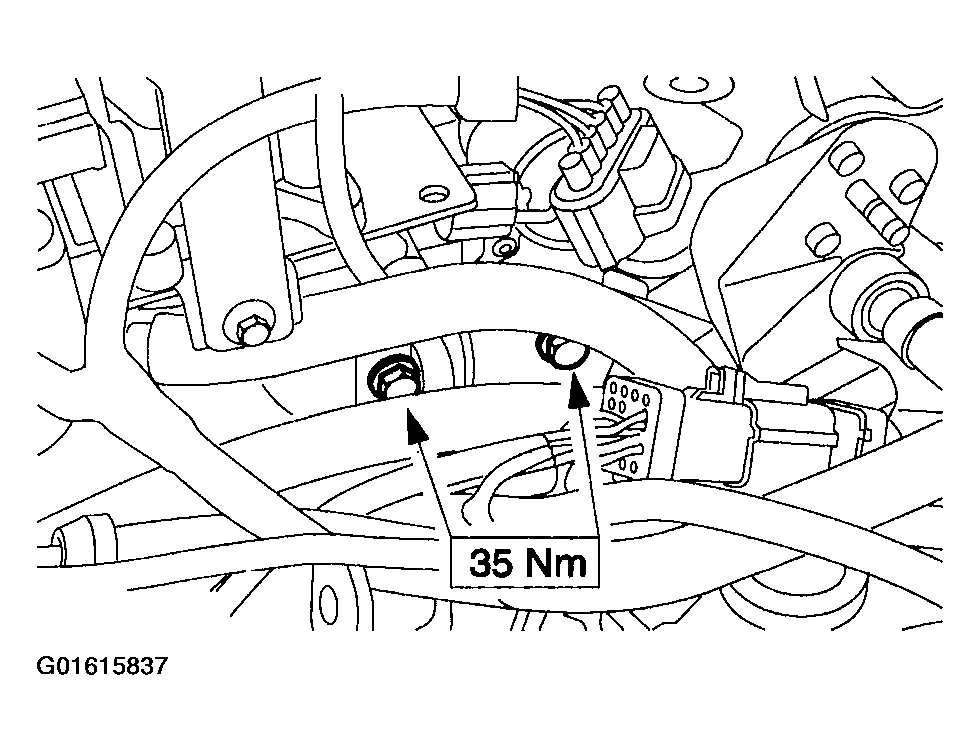

Install the starter motor upper retaining bolts.
- Attach the ground cable to the transaxle.

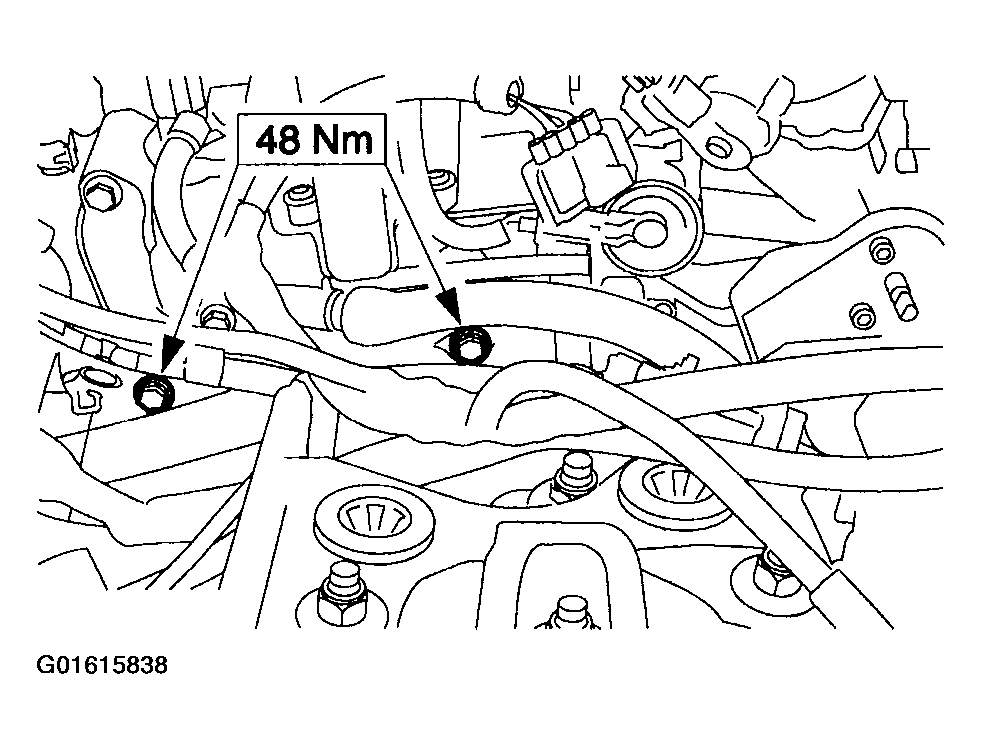

- 6. Install the transaxle upper retaining bolts.
All vehicles
NOTE:
Install a new exhaust flange gasket and new nuts.
