Single Switch

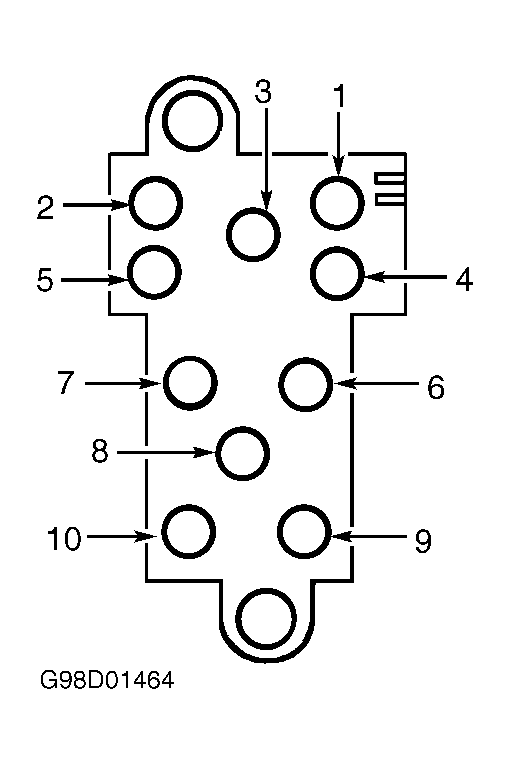

Remove appropriate single switch from vehicle. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, measure resistance between specified terminals while operating switch. See appropriate SINGLE SWITCH TESTING table. See Fig 1 or Fig 2 . Replace switch if resistance between specified terminals is 5 ohms or more. DO NOT measure resistance between terminals not specified.
| Switch Position | Between Terminals No. |
|---|---|
| Up | 8 & 10; 6 & 9 |
| Down | 6 & 8; 7 & 10 |
| Switch Position | Between Terminals No. |
|---|---|
| Up | 1 & 4; 3 & 5 |
| Down | 1 & 3; 2 & 5 |
