NOTE: For corresponding harness connector wire colors, refer to appropriate wiring diagram. See WIRING DIAGRAMS .

Remove left front door master window/door lock switch from vehicle. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check continuity between specified component terminals while operating switch. See appropriate MASTER WINDOW/DOOR LOCK SWITCH TESTING table. See Fig 1 or Fig 2 . Replace switch if resistance between specified terminals is 5 ohms or more. DO NOT measure resistance between terminals not specified.

MASTER WINDOW/DOOR LOCK SWITCH TESTING (ESCORT)

Switch/Position		Between Terminals No.
Lock-Out/Up		8 & 9
Left Front
Up		5 & 9
Down		4 & 9
Right Front
Up		9 & 13
Down		9 & 12
Left Rear
Up		3 & 9
Down		2 & 9
Right Rear
Up		9 & 11
Down		9 & 10

MASTER WINDOW/DOOR LOCK SWITCH TESTING (ZX2)

Switch Position		Between Terminals No.
Left
Up		6 & 12; 10 & 13
Neutral		6 & 12; 7 & 13
Down		6 & 10; 7 & 13
Right
Up		8 & 14; 11 & 15
Neutral		8 & 14; 9 & 15
Down		8 & 11; 9 & 15

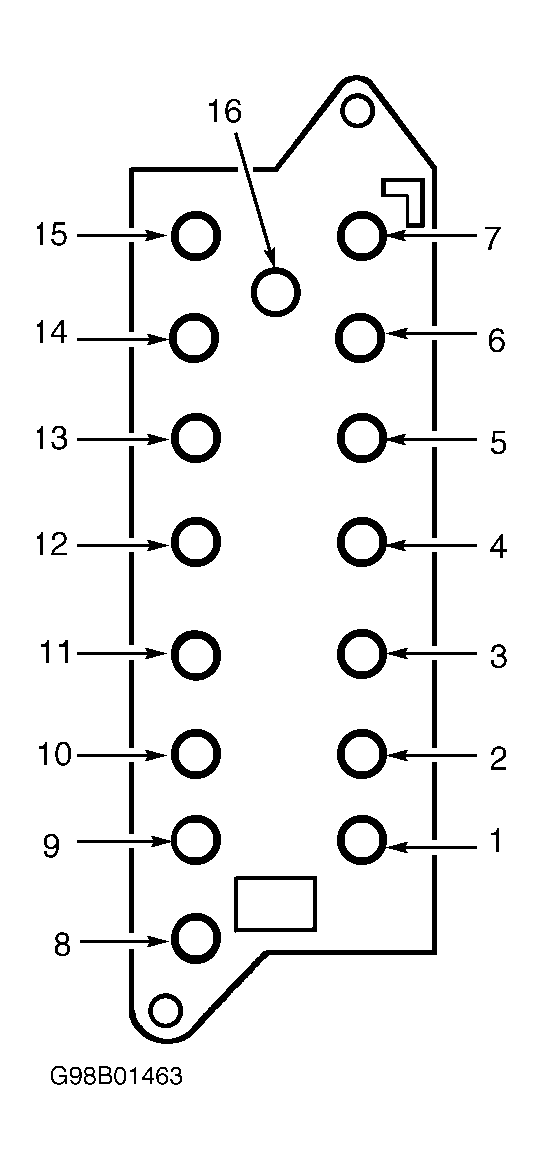

Fig 1: Identifying Left Front Door Master Window/Door Lock Switch (Component Side) Terminals (Escort)

Courtesy of FORD MOTOR CO.
