2001 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Transaxle Assembly

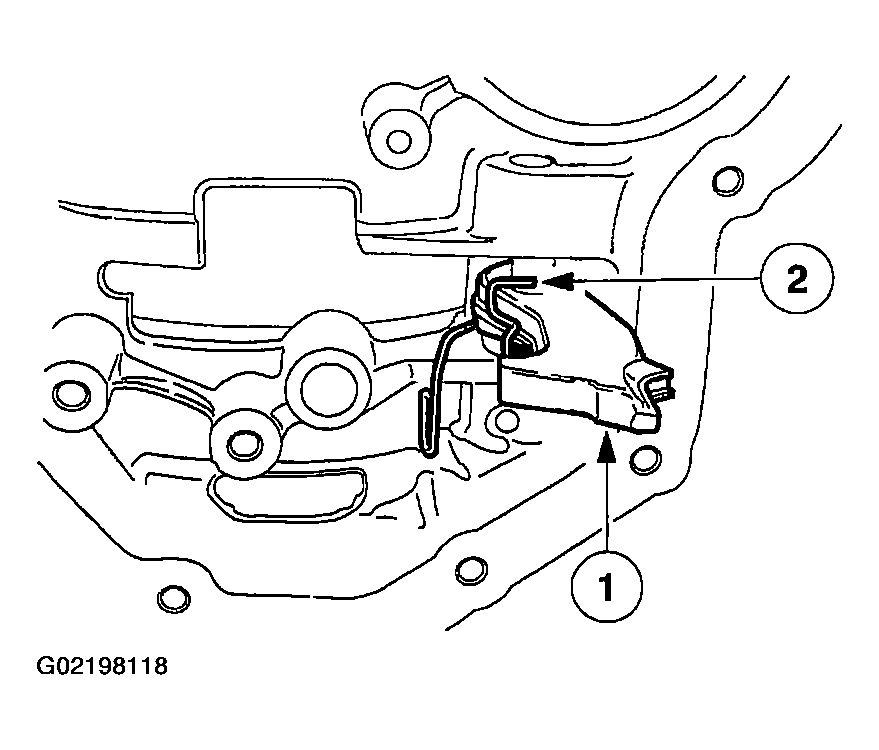

Install the parking pawl assembly.
1. Install the parking pawl and return spring.
2. Install the parking pawl shaft.
Fig 1: Installing Parking Pawl Assembly

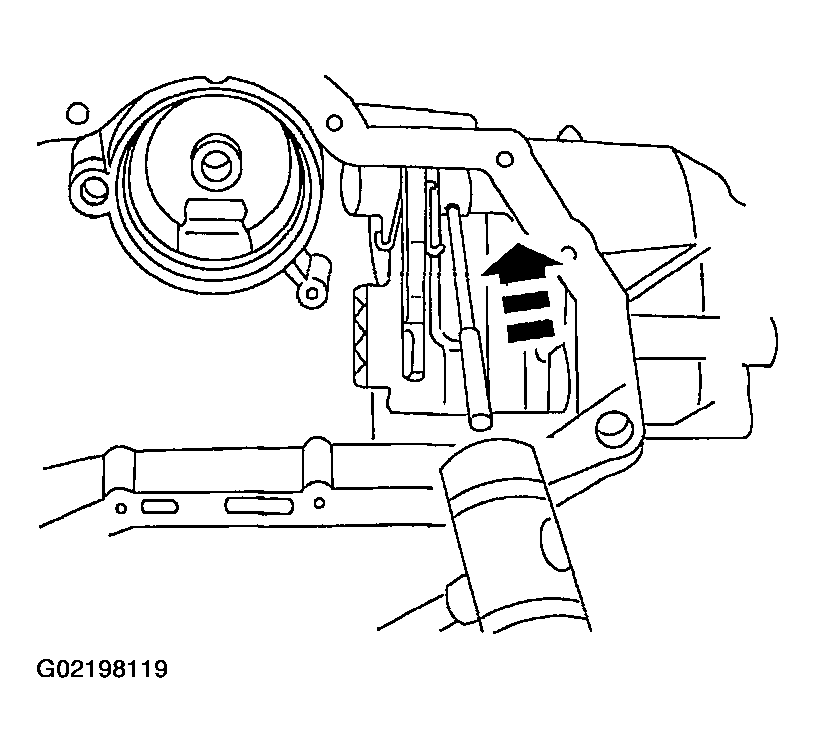

Install the park pawl roll pin.

Fig 2: Installing Park Pawl Roll Pin

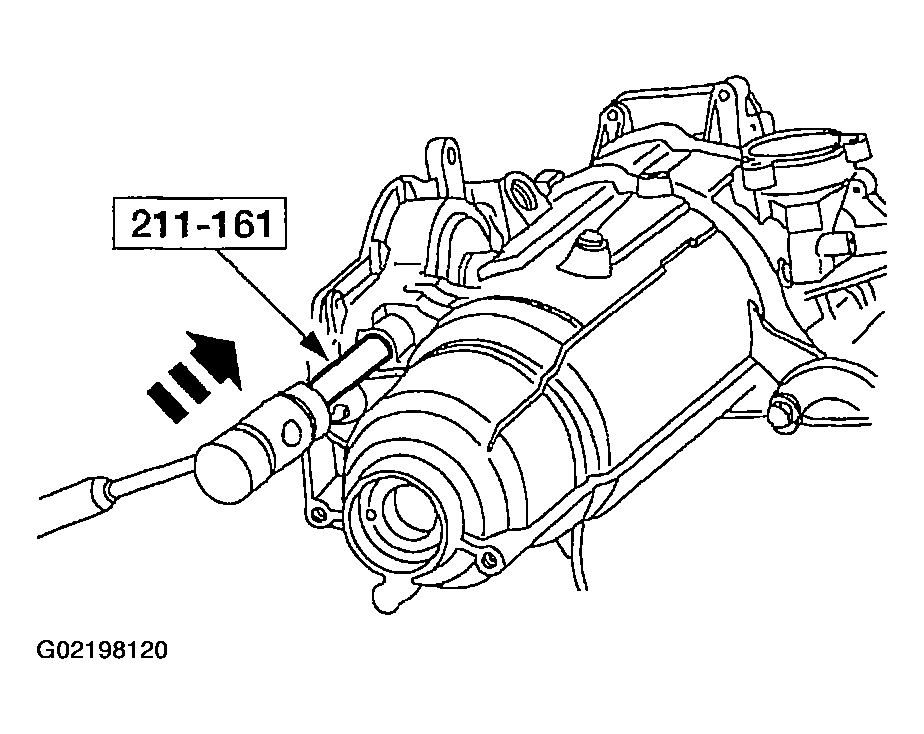

Using the special tool, install the cup plug.

Fig 3: Installing Cup Plug

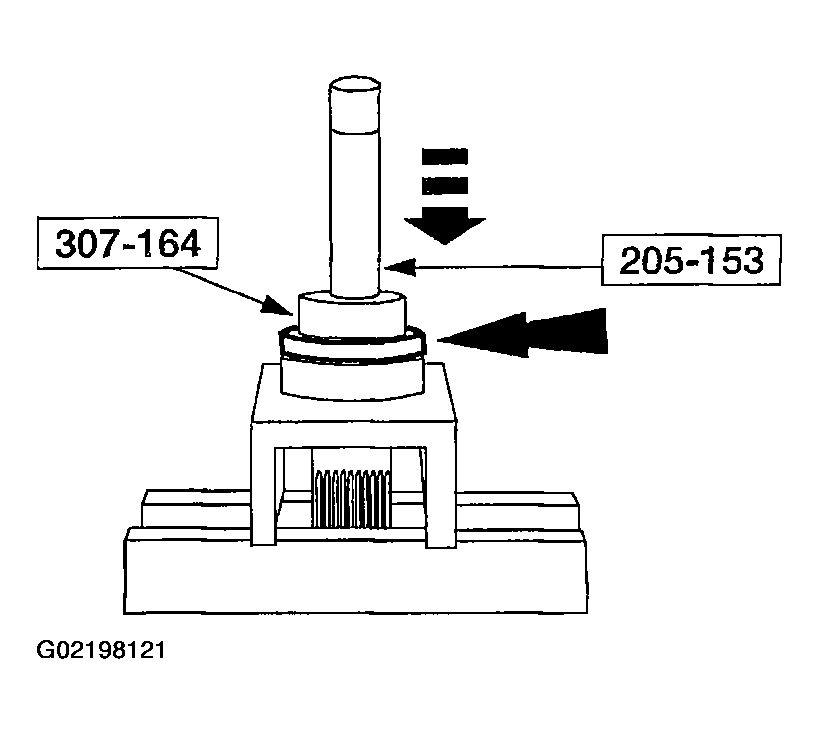

Using the special tools, install the new drive sprocket bearing, if it was removed.

Fig 4: Installing New Drive Sprocket Bearing

NOTE: The bolt holes are offset and the drive sprocket can only be aligned one way.
