2001 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE
Selector Lever Indicator Adjustment

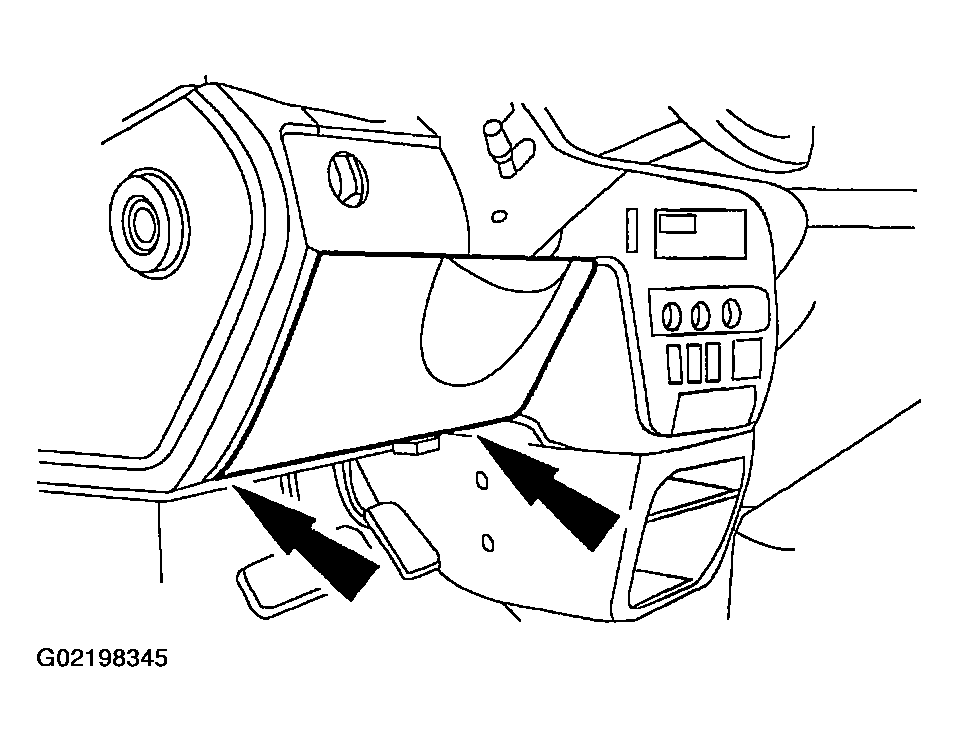

- Remove the two screws and the instrument panel lower steering column opening cover.

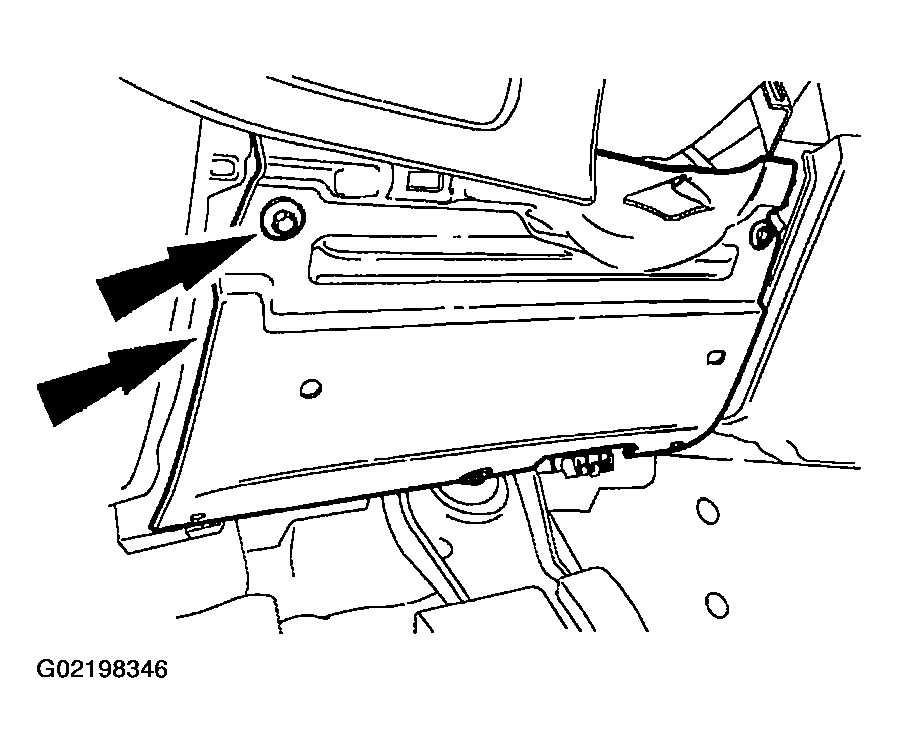

- Remove the screws and the instrument panel opening cover reinforcement.
- Rotate the gearshift lever (7210) clockwise until it bottoms out (first gear), then rotate it counterclockwise two detents (D position).
- Hang a 1.4 kg (3.0 lb) weight on the gearshift lever.

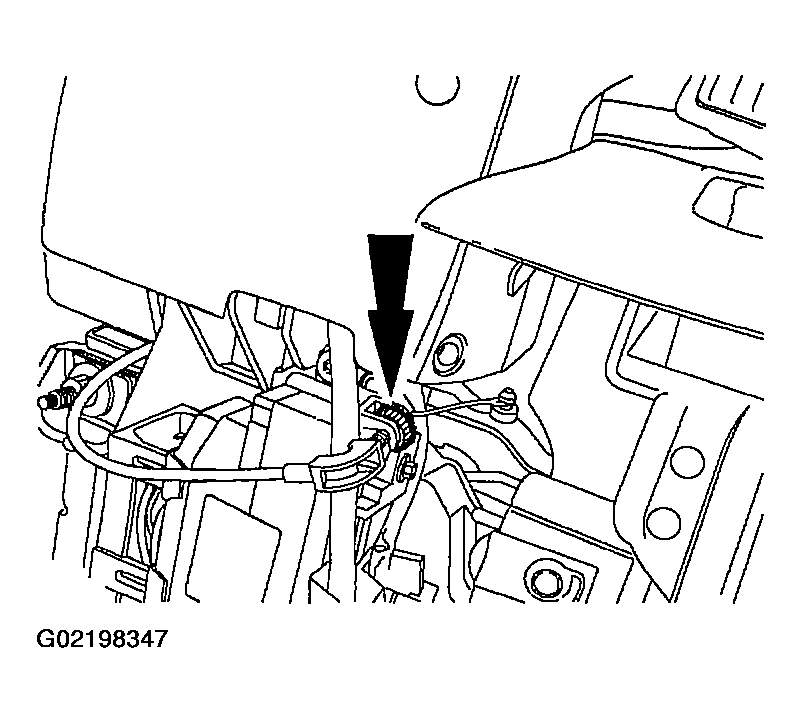

- Rotate the thumbwheel to center the selector lever indicator in the middle of the D position.
- Remove the 1.4 kg (3.0 lb) weight.
- Rotate the gearshift lever into each detent to verify that the selector lever indicator matches the selected range. Readjust, if necessary.

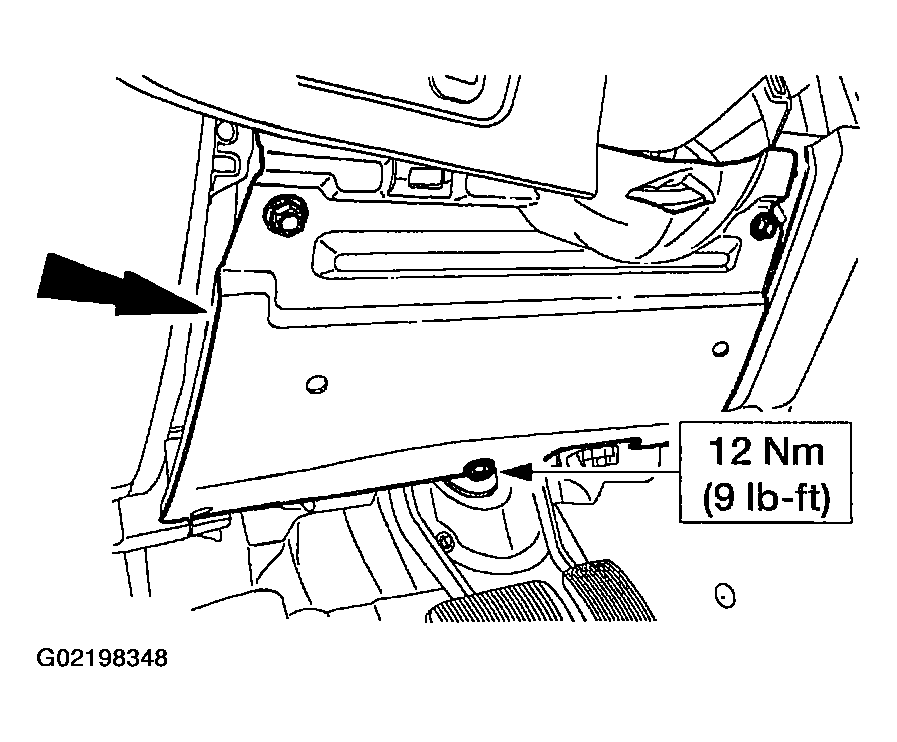

- Install the instrument panel opening cover reinforcement.

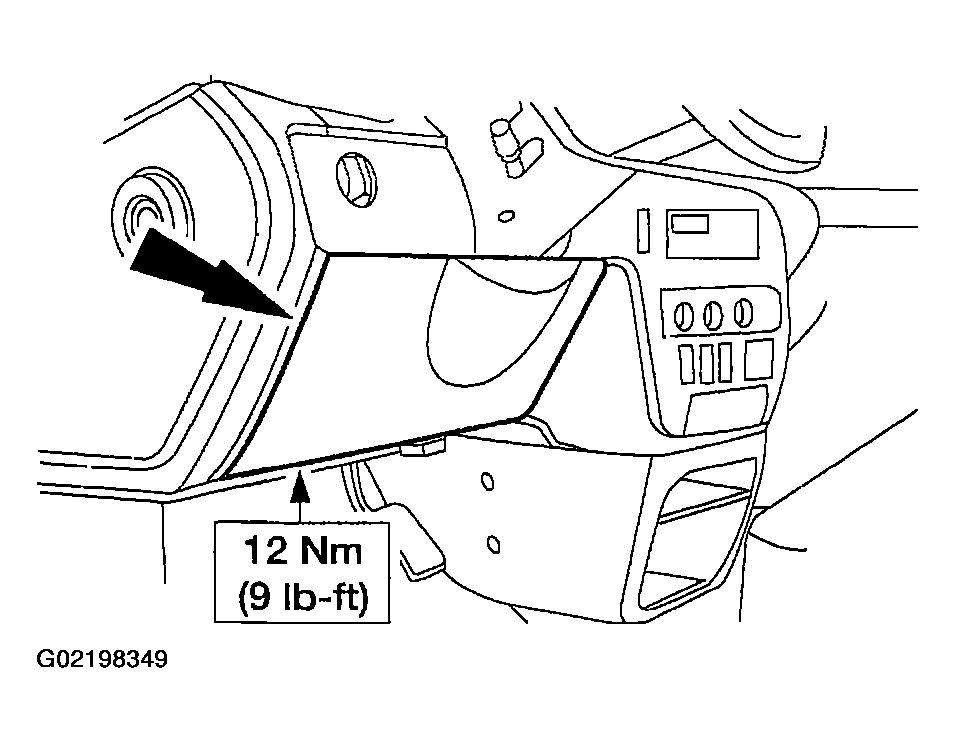

- Install the instrument panel lower steering column opening cover.
