2001 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE
Connector Identification
WARNING: This page is about a different car, the 2000 Ford Windstar and 1999 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR IDENTIFICATION
| Connector | See |
|---|---|
| Anti-Lock Brake Control Module Harness Connector (C111) | Fig 9 |
| Data Link Connector (C216) | Fig 4 |
| Front Electronics Module Harness Connector (C190) | Fig 2 |
| Front Electronics Module Harness Connector (C191) | Fig 8 |
| Front Electronics Module Harness Connector (C192) | Fig 6 |
| Front Electronics Module Harness Connector (C346) | Fig 7 |
| In-Line Harness Connector (C100) | Fig 11 |
| In-Line Harness Connectors (C180 & C292) | Fig 5 |
| In-Line Harness Connector (C432) | Fig 3 |
| Instrument Cluster Harness Connectors (C239 & C241) | Fig 8 |
| Instrument Cluster Harness Connector (C240) | Fig 7 |
| Left Power Sliding Door Module Harness Connector (C355) | Fig 2 |

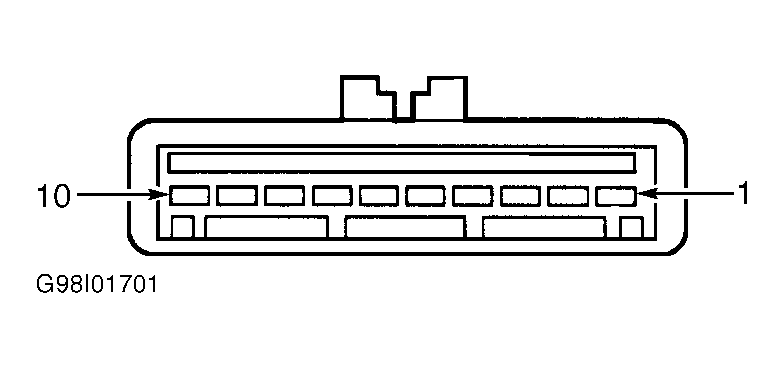

| Next Generation Speed Control Servo Harness Connector (C116) | Fig 1 |
| Powertrain Control Module Harness Connector (C103) | Fig 12 |
| Rear Electronics Module Harness Connector (C340) | Fig 6 |
| Rear Electronics Module Harness Connector (C341) | Fig 8 |
| Rear Electronics Module Harness Connector (C343) | Fig 7 |
| Rear Electronics Module Harness Connector (C344) | Fig 2 |
| Remote Keyless Entry Module Harness Connector (C200) | Fig 2 |
| Restraint Control Module Harness Connector (C231) | Fig 10 |
| Right Power Sliding Door Module Harness Connector (C352) | Fig 2 |
