COMPONENT LOCATIONS

Component	Location
Anti-Lock Brake Control Module	See Fig 1
Data Link Connector (DLC)	Located Below Driver's Side Of Instrument Panel, Right Of Steering Column
Front Electronics Module (FEM)	See Fig 1
In-Line 14-Pin Harness Connector C432	Located Rear Right Side Of Cargo Area, Behind Panel
In-Line 16-Pin Harness Connector C180	Located Behind Instrument Panel, Above Front Electronics Module (FEM)
In-Line 16-Pin Harness Connector C292	Located Behind Driver's Side Kick Panel
In-Line 42-Pin Harness Connector C100	Located At Left Rear Side Of Engine Compartment
Instrument Cluster	See Fig 1
Next Generation Speed Control (NGSC) Servo	See Fig 1
Parking Aid Module (PAM)	See Fig 1
Rear Electronics Module (REM)	See Fig 1
Remote Keyless Entry (RKE) Module	See Fig 1
Restraint Control Module	See Fig 1
Powertrain Control Module (PCM)	See Fig 1

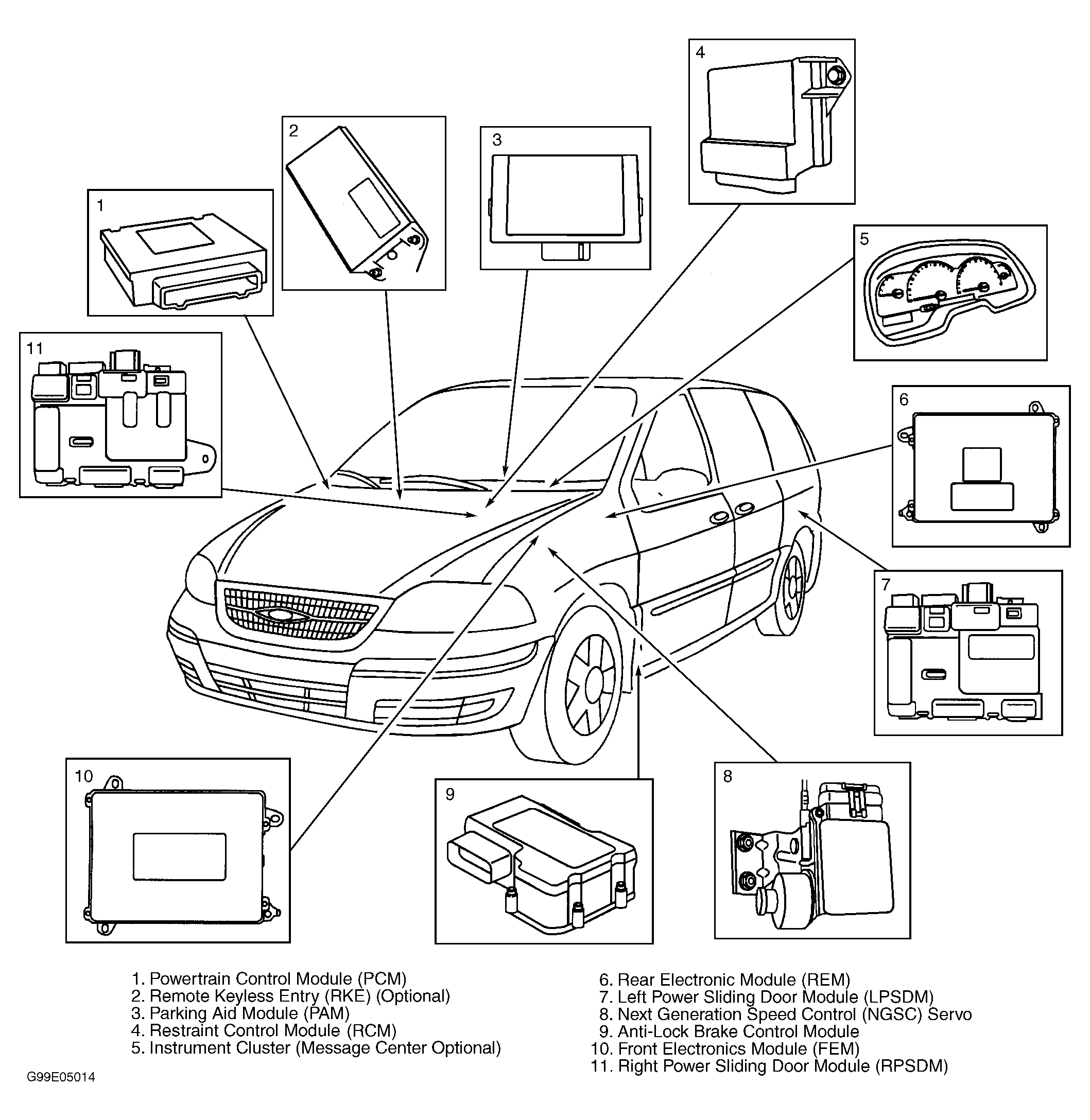

Fig 1: Locating Vehicle Communication Network Modules

Courtesy of FORD MOTOR CO.
