Upper Intake Manifold: Installation

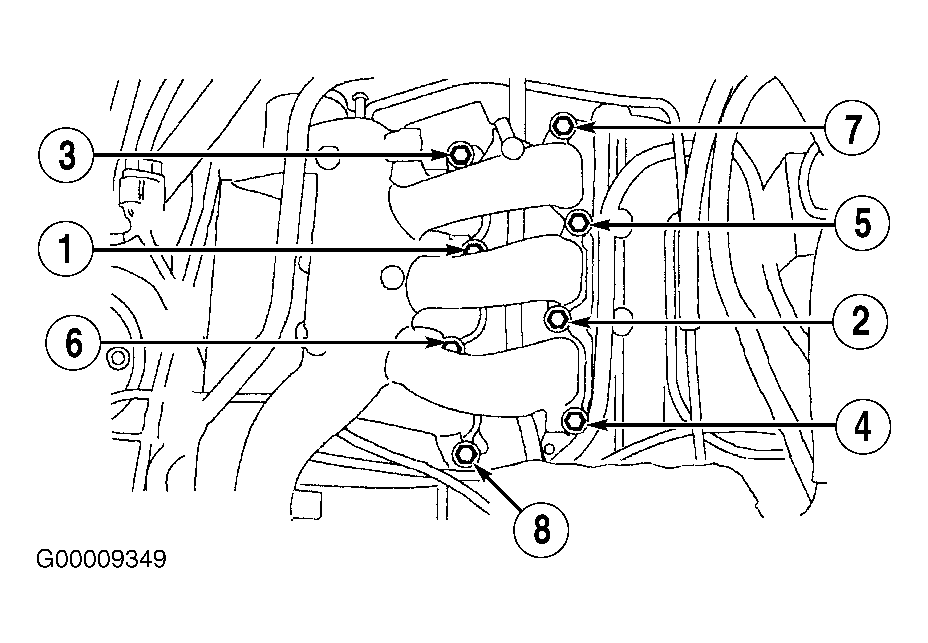

Use NEW gaskets. Tighten upper intake manifold bolts in reverse removal sequence. See Fig 1. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

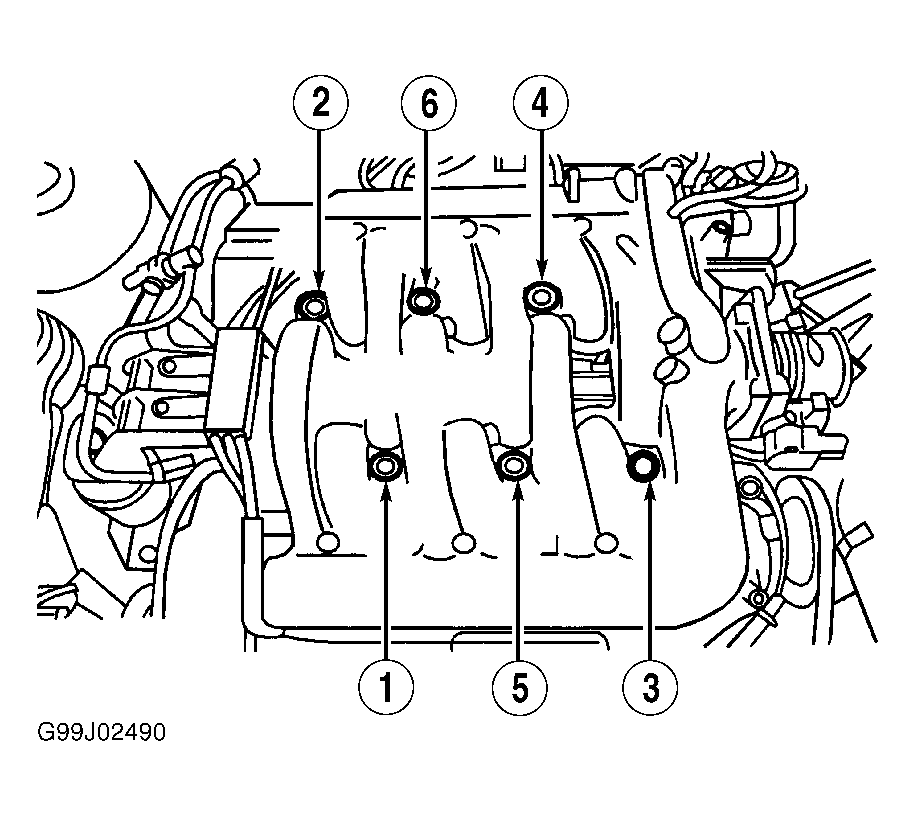

To install, reverse removal procedure. Tighten upper intake manifold bolts in sequence and to specification. See TORQUE SPECIFICATIONS . See Fig 1 or Fig 2 .
