2001 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE
Connector Identification

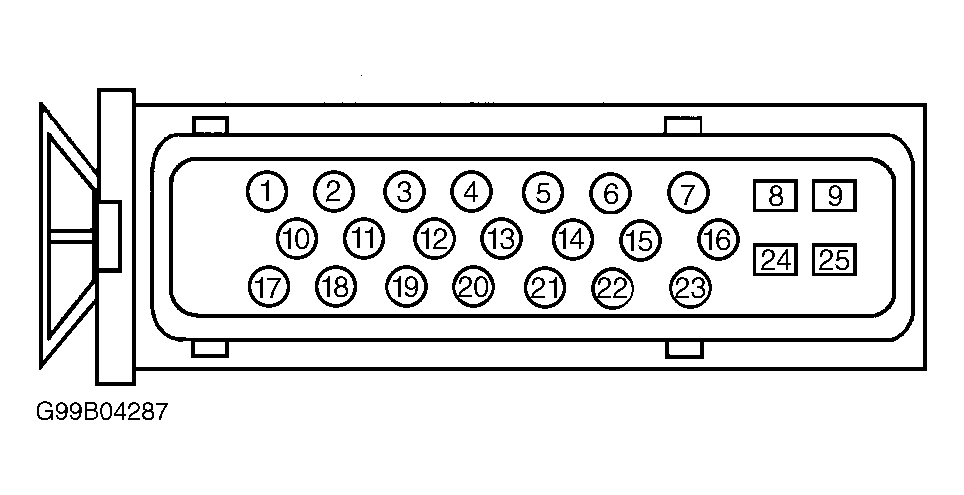

ANTI-LOCK BRAKE CONTROL MODULE (ABCM) CONNECTOR ID CHART
| Pin No. | Circuit No. (Color) | Function |
|---|---|---|
| 1 | 522 (Tan/Black) | LF ABS Sensor (-) |
| 2 | 516 (Yellow/Black) | RF ABS Sensor (-) |
| 3 | 519 (Light Green/Black) | LR ABS Sensor (+) |
| 4 | 524 (Pink/Black) | RR ABS Sensor (+) |
| 5 | 535 (Light Blue/Red) | Brake Pressure Switch Input |
| 6 | 915 (Pink/Light Blue) | Data Link Connector (-) |
| 7 | ..... | Not Used |
| 8 | 1205 (Black) | Ground |
| 9 | 601 (Light Blue/Pink) | Power (Hot At All Times) |
| 10 | 521 (Tan/Orange) | LF ABS Sensor (+) |
| 11 | 514 (Yellow/Red) | RF ABS Sensor (+) |
| 12 | 518 (Light Green/Red) | LF ABS Sensor (-) |
| 13 | 523 (Red/Pink) | RR ABS Sensor (-) |
| 14 | ..... | Not Used |
| 15 | 914 (Tan/Orange) | Data Link Connector (+) |
| 16 | ..... | Not Used |
| 17 | ..... | Not Used |
| 18 | ..... | Not Used |
| 19 | ..... | Not Used |
| 20 | ..... | Not Used |
| 21 | ..... | Not Used |
| 22 | ..... | Not Used |
| 23 | 1040 (Red/Black) | Power (Hot in Run) |
| 24 | 1205 (Black) | Ground |
| 25 | 534 (Yellow/Light Green) | Power (Hot At All Times) |
