Master Window Regulator Control Switch

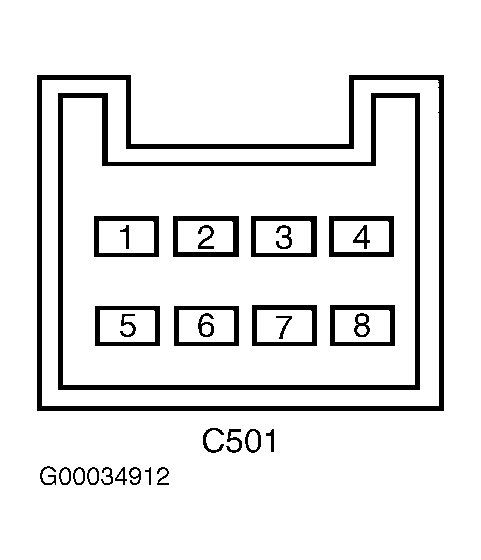

Disconnect master window regulator control switch. Check continuity between specified master window regulator control switch terminals with switch in appropriate position. See MASTER WINDOW REGULATOR CONTROL SWITCH CONTINUITY table. See Fig 1 and Fig 2 . If continuity is not as specified, replace master window regulator control switch.
| Switch Position | Connector (Terminal No.) | Continuity | ||
|---|---|---|---|---|
| All Positions | C501 (2 & 6; 6 & 8) | No | ||
| Neutral | C501 (1, 3, 5, 6 & 7); C501 (6) & C502 (1, 3, 4 & 6) | Yes | ||
| Left Front Window | ||||
| Up | C501 (7 & 8) | Yes | ||
| Down | C501 (3 & 8) | Yes | ||
| Right Front Window | ||||
| Up | C501 (1 & 2) | Yes | ||
| Down | C501 (2 & 5) | Yes | ||
| Flip Window | ||||
| Left | ||||
| Open | C501 (8) & C502 (1) | Yes | ||
| Close | C501 (8) & C502 (4) | Yes | ||
| Right | ||||
| Open | C501 (8) & C502 (6) | Yes | ||
| Close | C501 (8) & C502 (3) | Yes | ||
| One-Touch Down | C501 (4 & 8) | Yes | ||
