Seat Control Switch

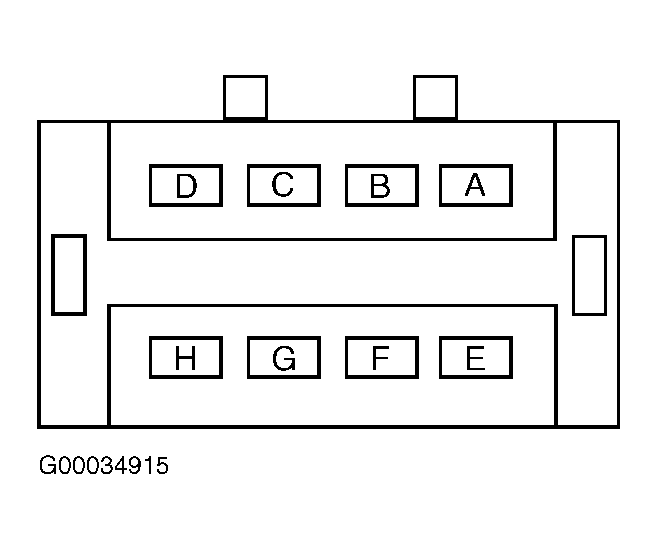

Remove seat control switch. See SEAT CONTROL SWITCH under REMOVAL & INSTALLATION. Measure resistance between appropriate seat control switch terminals with switch in appropriate position. See DRIVER'S SEAT CONTROL SWITCH RESISTANCE or PASSENGER'S SEAT CONTROL SWITCH RESISTANCE table. See Fig 1 . If resistance is not as specified, replace seat control switch.
| Switch Position | Measure Between Terminals | Resistance (Ohms) |
|---|---|---|
| Neutral | E & H | More Than 5 |
| H & All Others Except E | Less Than 5 | |
| Forward | F & H | Less Than 5 |
| Rearward | G & H | Less Than 5 |
| Front Down | D & H | Less Than 5 |
| Front Up | A & H | Less Than 5 |
| Rear Down | B & H | Less Than 5 |
| Rear Up | C & H | Less Than 5 |
| Switch Position | Measure Between Terminals | Resistance (Ohms) |
|---|---|---|
| Neutral | E & H | More Than 5 |
| E & All Others Except H | Less Than 5 | |
| Forward | G & H | Less Than 5 |
| Rearward | F & H | Less Than 5 |
| Front Down | B & H | Less Than 5 |
| Front Up | C & H | Less Than 5 |
| Rear Down | D & H | Less Than 5 |
| Rear Up | A & H | Less Than 5 |
