2001 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Component Locations

COMPONENT LOCATIONS

Component	Location
Central Junction Box	Behind Left Side Of Instrument Panel
Power Mirror Control Switch	On Driver's Door Panel
Rear Electronic Module (REM)	Behind Right Rear Interior Quarter Panel
Supplemental Turn Signal Module	Backside Of Left & Right Side View Mirror Glass

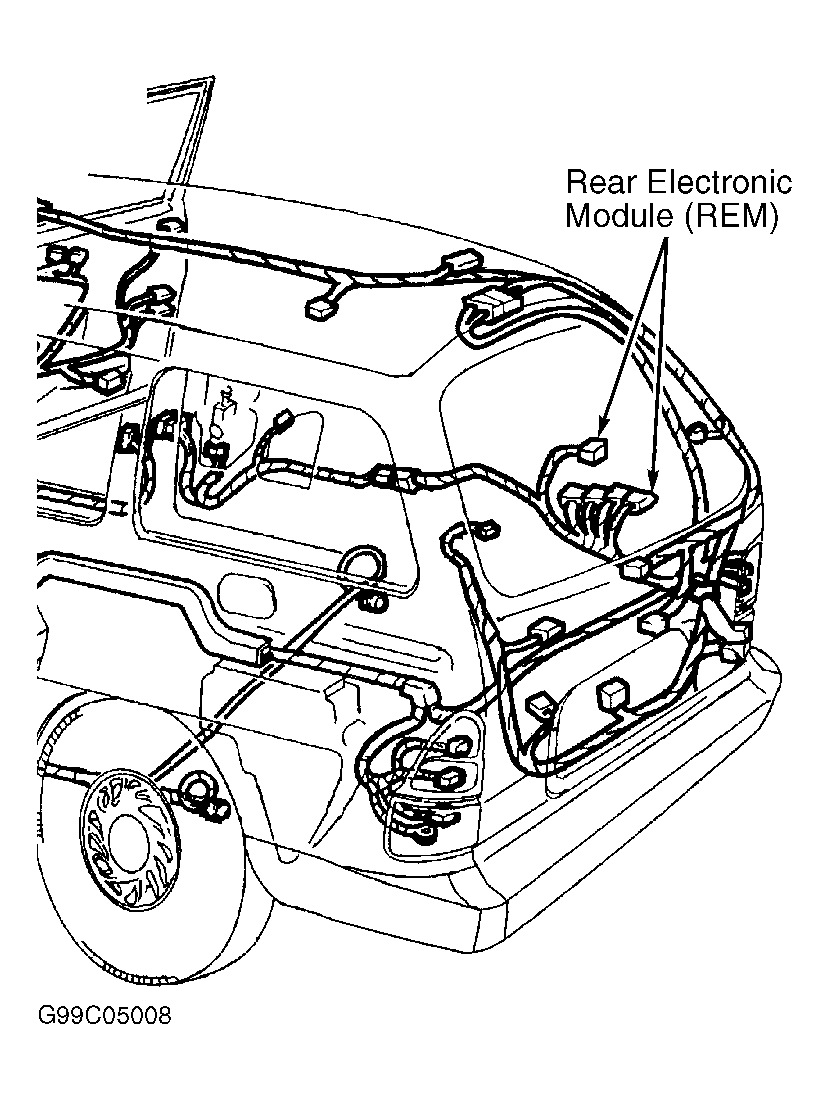

Fig 1: Locating Rear Electronic Module

Courtesy of FORD MOTOR CO.
