2001 Ford Taurus SELFACTORY OEM SERVICE PROCEDURE

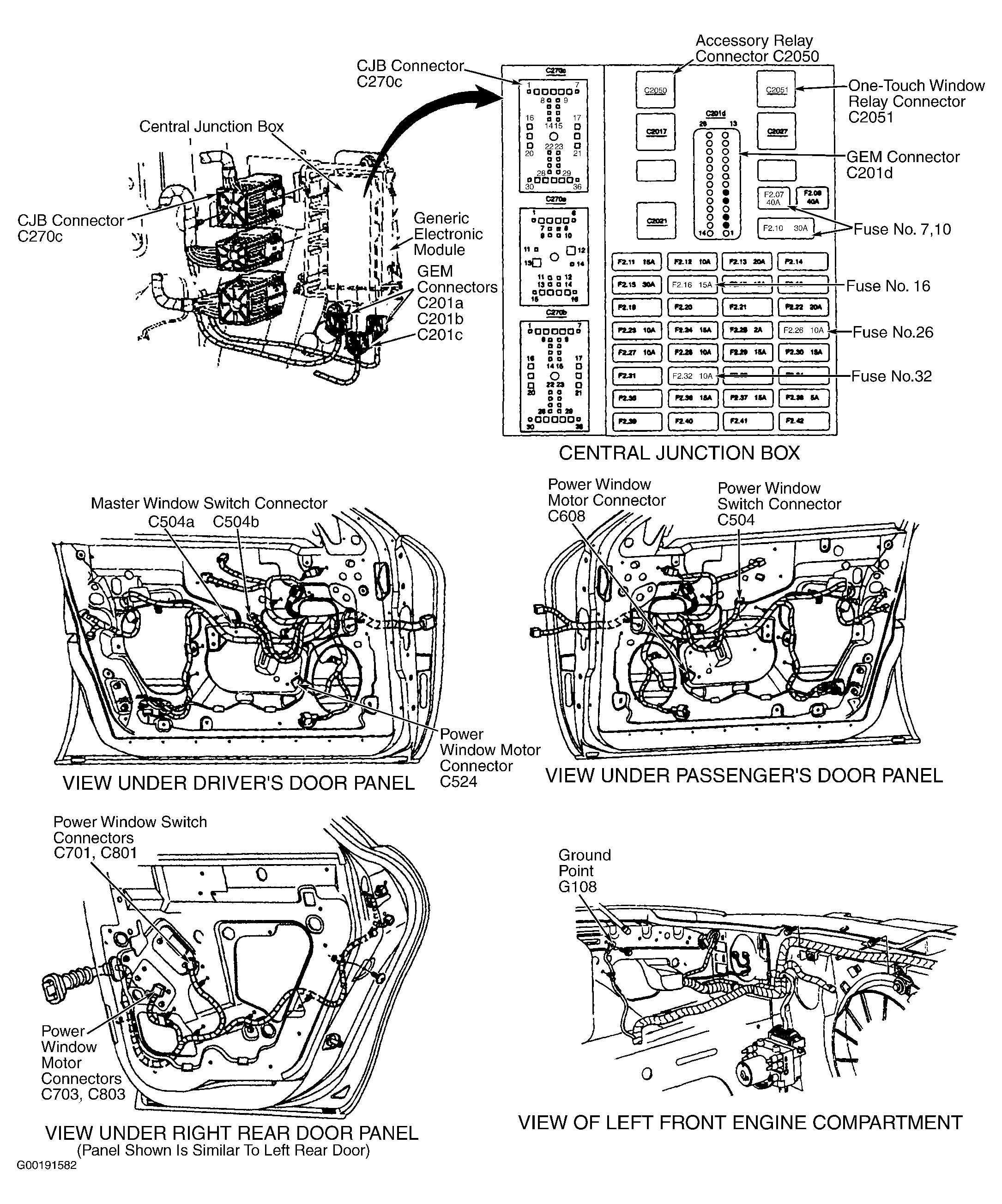

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Central Junction Box | Behind Left Side Of Instrument Panel |
| Data Link Connector | Mounted On Instrument Panel, Under Steering Column |
| Delayed Accessory Relay | In Central Junction Box |
| Fuse No. 10 (30-Amp) | In Central Junction Box |
| Generic Electronic Module | Attached To Under Side Of Central Junction Box |
| Master Power Window Switch | On Driver's Door Trim Panel |
| Power Window Regulator & Motor Assembly | Inside Door, Behind Trim Panel |
