Turn ignition off. Deactivate air bag system. See appropriate AIR BAG RESTRAINT SYSTEMS article. Disconnect Restraint Control Module (RCM) 26-pin connector C232. See Figure. Inspect RCM connector for physical damage, bent terminals or corrosion. Repair connector as necessary and retest system for normal operation. If connector is okay, go to next step.
Measure resistance of Light Blue/White wire between RCM connector C232 terminal No. 5 and DLC terminal No. 7. See Figure and Fig 1 . If resistance is less than 5 ohms, replace RCM and retest system for normal operation. If resistance is 5 ohms or more, repair open in Light Blue/White wire between RCM connector C232 and DLC. Retest system for normal operation.

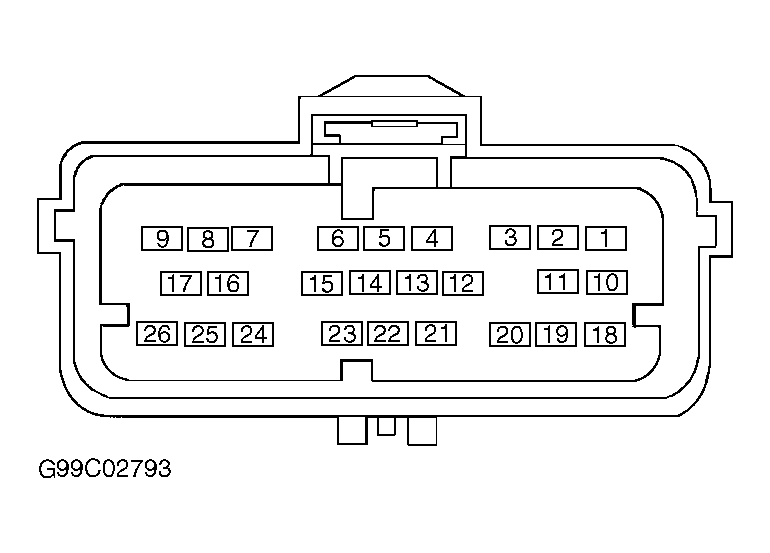

Fig 1: Identifying Restraint Control Module (RCM) Connector C232 Terminals

Courtesy of FORD MOTOR CO.
