Power Window Single Switch

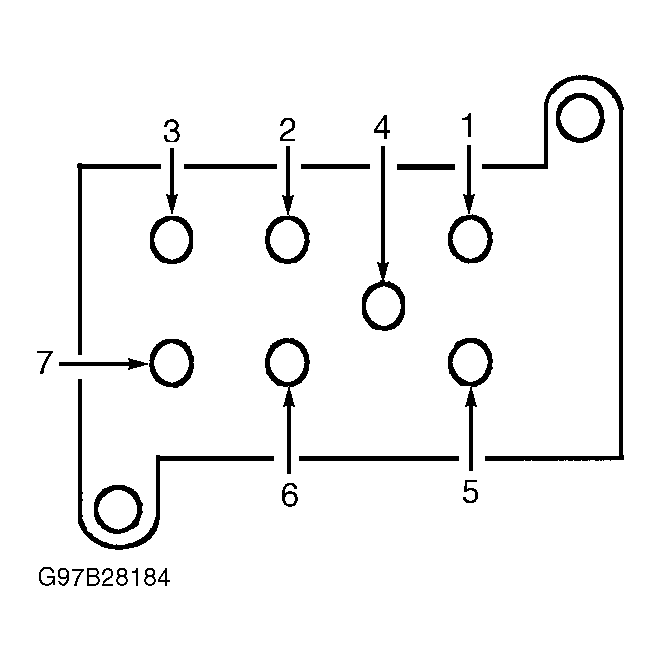

Remove suspect window switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Check for continuity between terminals as specified while operating switch. See appropriate SWITCH TESTING table. If continuity does not exist as specified, replace switch. See Fig 1 or Fig 2 .
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 1 & 2; 5 & 6 |
| Up | 2 & 4 |
| Down | 4 & 5 |
| Switch Illumination | 3 & 7 |
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 1 & 5; 2 & 6 |
| Up | 4 & 5 |
| Down | 2 & 4 |
| Switch Illumination | 3 & 7 |
