2001 MODEL COVERAGE

MODEL

ENGINE

ENGINE ID ⁽¹⁾

FUEL SYSTEM

IGNITION SYSTEM

Cab & Chassis

5.4L

SFI

DIS

.....

6.8L

SFI

DIS

.....

6.8L

SFI ⁽²⁾

DIS

.....

7.3L

Turbo Diesel

N/A

Cutaway

5.4L

SFI

DIS

.....

5.4L

SFI ⁽³⁾

DIS

.....

6.8L

SFI

DIS

.....

7.3L

Turbo Diesel

N/A

Econoline

4.2L

SFI

DIS

.....

4.6L

SFI

DIS

.....

4.6L

SFI

DIS

5.4L

SFI

DIS

.....

5.4L

SFI ⁽³⁾

DIS

.....

6.8L

SFI

DIS

.....

7.3L

Turbo Diesel

N/A

Escape

2.0

SFI

DIS

.....

3.0

SFI

DIS

Excursion

5.4L

SFI

DIS

.....

6.8L

SFI

DIS

.....

7.3L

Turbo Diesel

N/A

Expedition

4.6L

SFI

DIS

.....

4.6L

SFI

DIS

.....

5.4L

SFI

DIS

Explorer

4.0L OHV

SFI

DIS

.....

4.0L SOHC

SFI

DIS

.....

4.0L SOHC

SFI ⁽⁵⁾

DIS

.....

5.0L

SFI

DIS

Explorer Sport

4.0 SOHC

SFI

DIS

.....

4.0 SOHC

SFI ⁽⁵⁾

DIS

Explorer Sport Trac

4.0 SOHC

SFI

DIS

.....

4.0 SOHC

SFI ⁽⁵⁾

DIS

"F" Series Pickup

4.2L

SFI

DIS

.....

4.6L

SFI

DIS

.....

4.6L

SFI

DIS

.....

5.4L

SFI

DIS

.....

5.4L

SFI ⁽³⁾

DIS

.....

5.4L

SFI ⁽⁴⁾

DIS

.....

5.4L (Supercharged)

SFI

DIS

.....

6.8L

SFI

DIS

.....

7.3L

Turbo Diesel

N/A

Mountaineer

4.0L

SFI

DIS

.....

5.0L

SFI

DIS

Navigator

5.4L

SFI

DIS

Ranger

2.3L

SFI

DIS

.....

2.5L

SFI

DIS

.....

3.0L

SFI

Distributor

.....

4.0L SOHC

SFI

DIS

RV Cutaway

5.4L

SFI

DIS

.....

6.8L

SFI

DIS

.....

7.3L

Turbo Diesel

N/A

Villager

3.3L

SFI

Distributor

Windstar

3.8L

SFI

DIS

⁽¹⁾	Engine may be identified by 8th character of VIN.

⁽²⁾	Bi-fuel - gasoline and LPG only.

⁽³⁾

CNG only.

⁽⁴⁾	Bi-fuel - gasoline and CNG, or gasoline and LPG.

⁽⁵⁾	Flex-fuel - gasoline and ethanol.

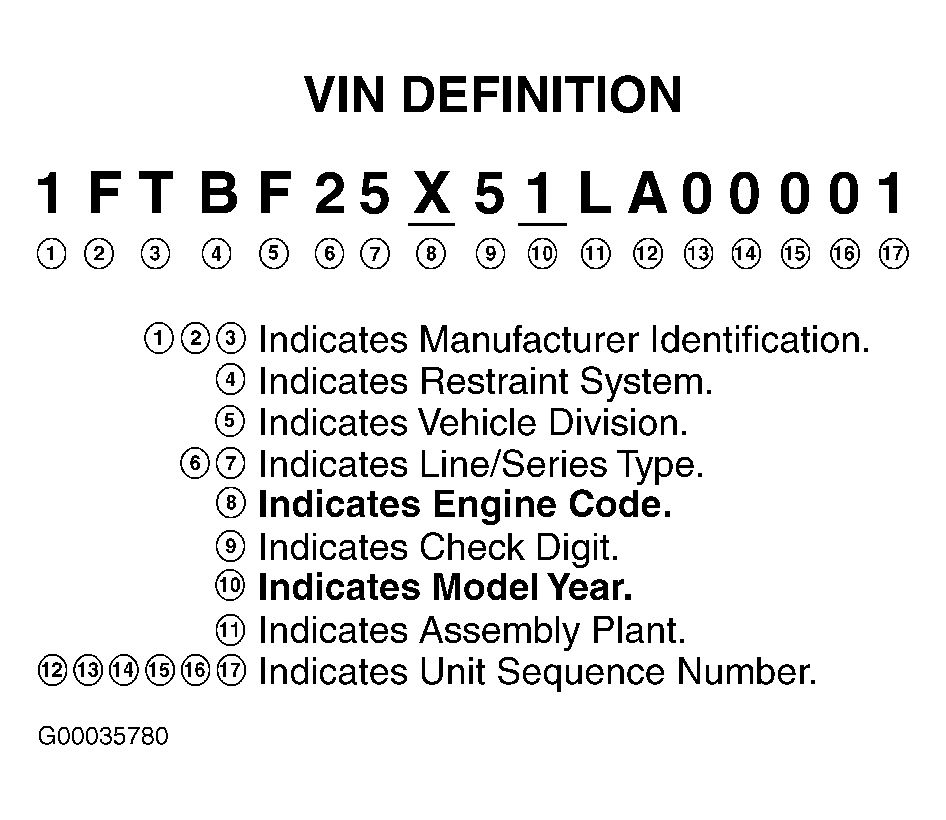

Fig 1: VIN Definition

Courtesy of FORD MOTOR CO.
