Master Window/Door Lock/Unlock Switch

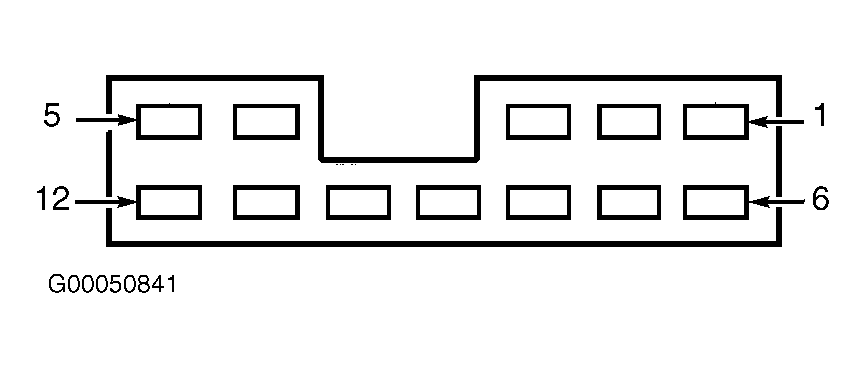

Remove master window/door lock/unlock switch. Check continuity between master window/door lock/unlock switch specified terminals while operating switch in appropriate position. See MASTER WINDOW/DOOR LOCK/UNLOCK SWITCH TESTING table. See Fig 1 . If continuity is not as specified, replace master window/door lock/unlock switch.
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Left Front | ||
| Up | 4 & 8 | |
| Down | 8 & 9 | |
| Right Front | ||
| Up | 2 & 8 | |
| Down | 1 & 8 | |
| Left Rear | ||
| Up | 8 & 11 | |
| Down | 8 & 10 | |
| Right Rear | ||
| Up | 7 & 8 | |
| Down | 6 & 8 | |
