2000 Ford ZX2 StandardFACTORY OEM SERVICE PROCEDURE
Valve Seals: Installation
WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

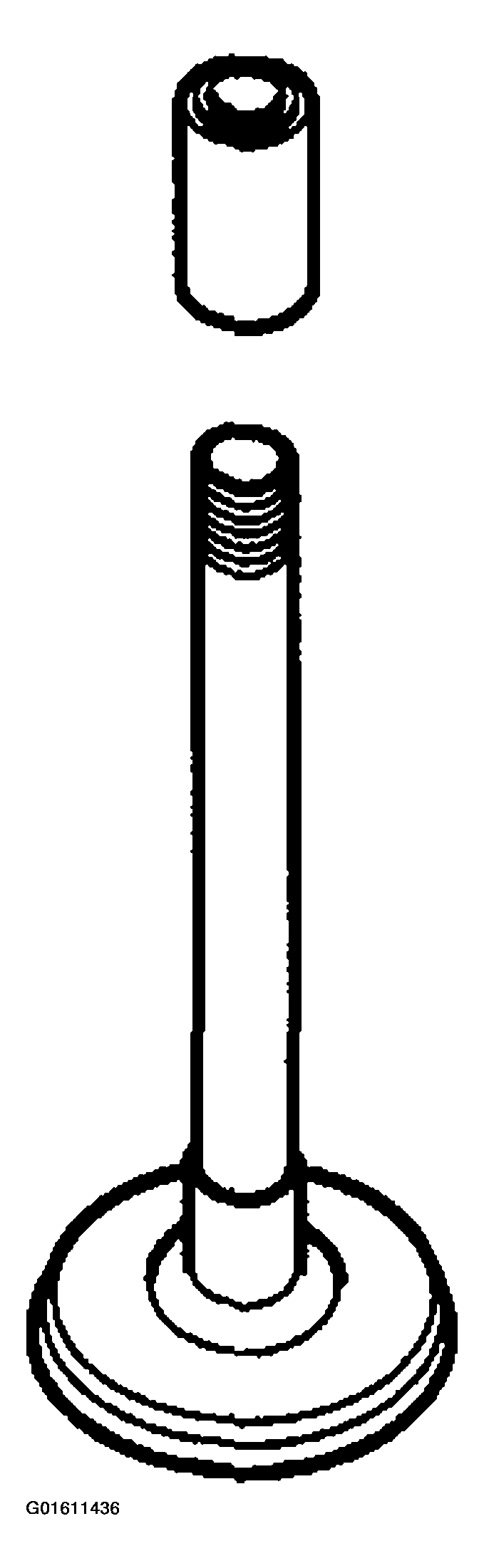

- Install the valve stem seal installation sleeve.

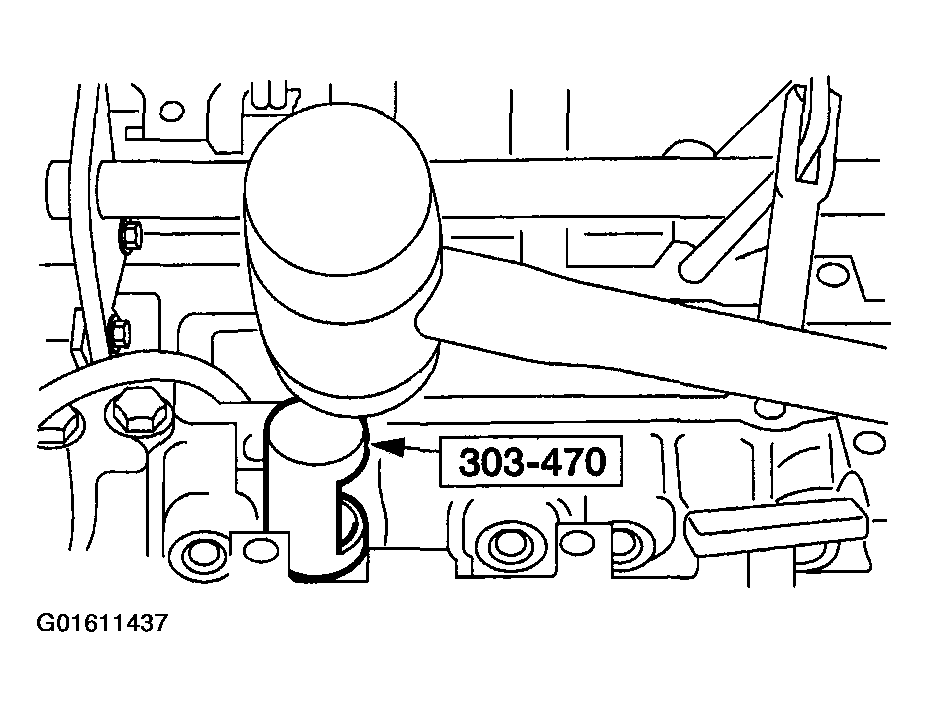

- Using the special tool, install the valve stem oil seals.
- Using the special tools, install the valve springs.
- Insert the valve springs and the valve spring retainers.

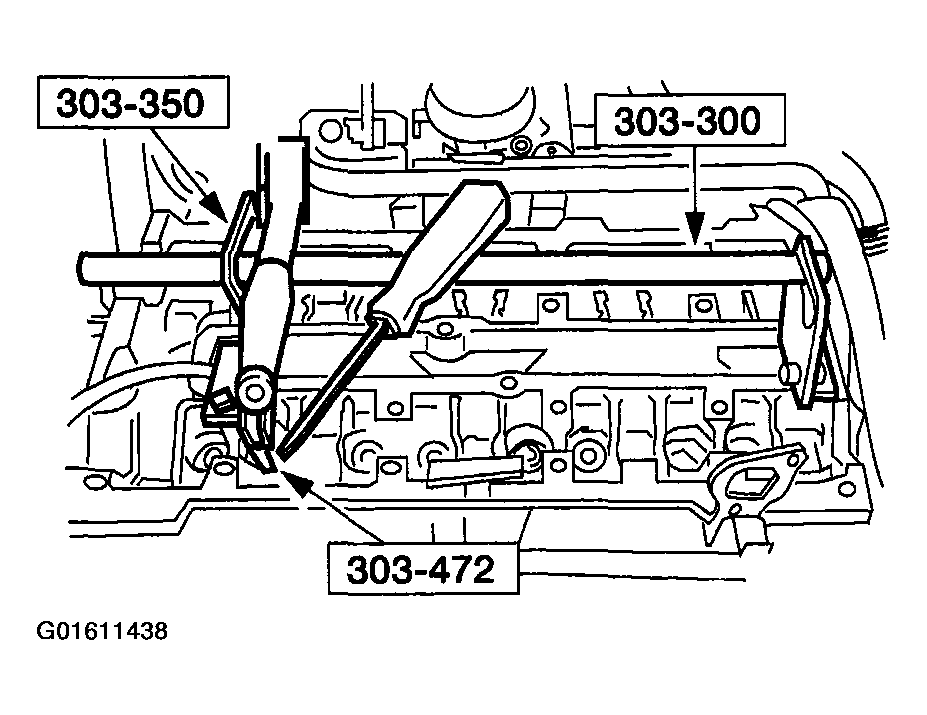

- Compress the valve springs and install the valve collects using some grease and a small screwdriver.
- Disconnect the compressed air supply and screw in the spark plug.
- Repeat the appropriate steps for all the other cylinders.
- Coat the valve tappets with clean engine oil and insert them.
- Tighten the spark plugs. .
- Install the camshafts. For additional information, refer to CAMSHAFTS .
NOTE:
Check the seating of the valve collects.
NOTE:
Do not tighten the spark plug at this time.
