2000 Ford ZX2 StandardFACTORY OEM SERVICE PROCEDURE
Engine Front Cover: Removal
WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .

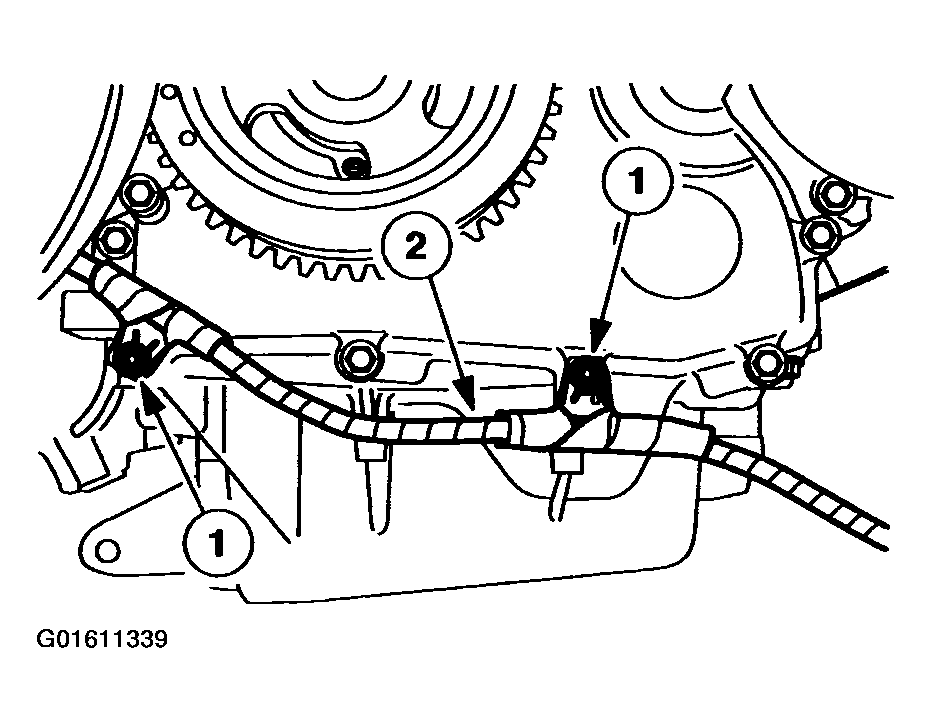

- Release wiring harness.
- Remove the nuts retaining the wiring harness.
- Release the wiring harness from the front cover studs and position aside.
NOTE:
If the crankshaft position (CKP) sensor is damaged during engine front cover removal a new CKP sensor must be installed. Refer to the manufacturer instructions for sensor installation.
